Taco RUB RAIL

technical hotline 800.653.8567 • TacoMarine.com
36

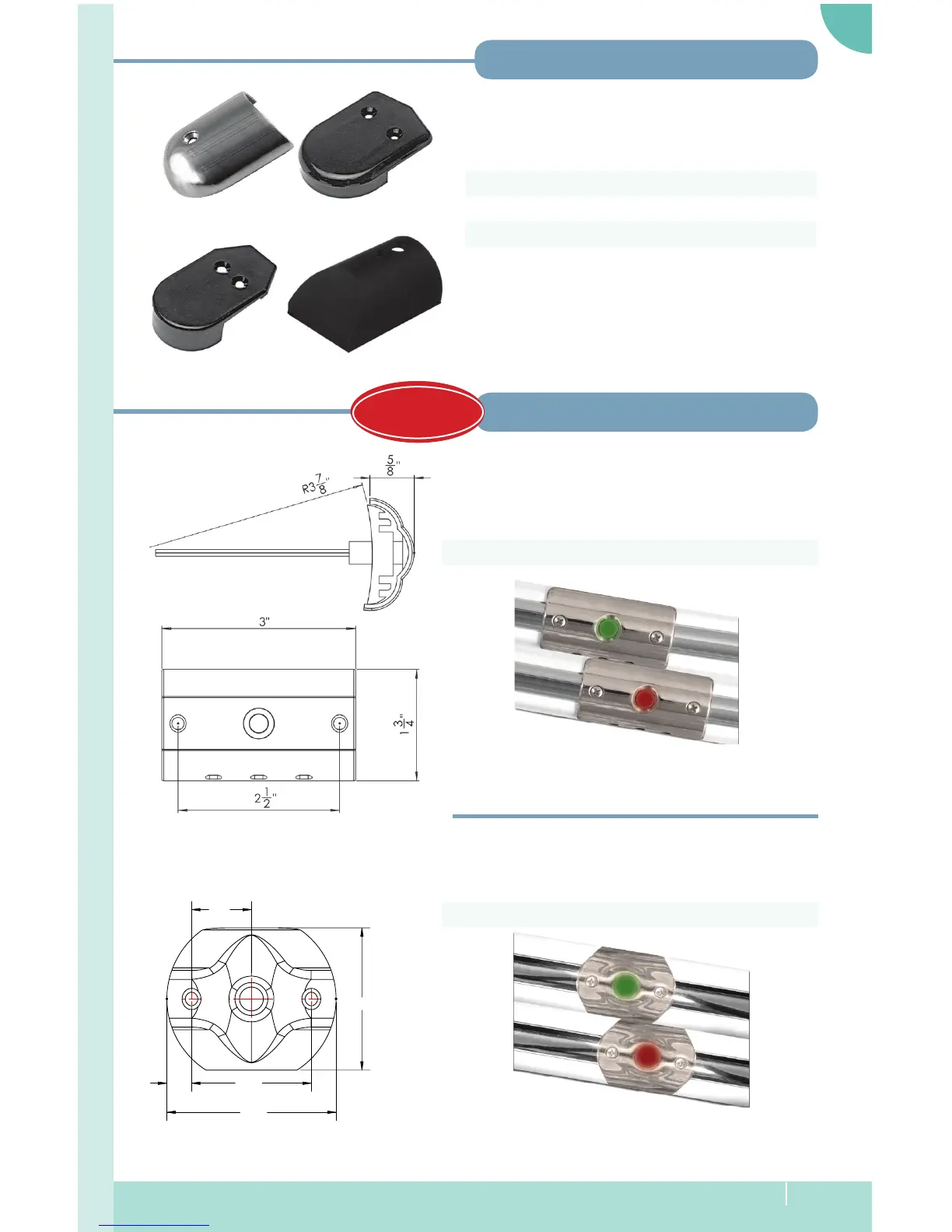

ACCESSORIES
End Caps
Part Number Color/Finish Width Screw
F16-0039 Stainless Steel 1-5/8" #8
F90-0001BKN Black Nylon 2" #8
F90-0002BKN Black Nylon 1-9/16" #8
F90-1870BKA Black Nylon 1-3/8" #8
Stainless Steel & Nylon
F16-0039 F90-0001
F90-0002 F90-1870
LED Navigation Lights
Stainless Steel Type 304
Rub Rail: V21-9659, V21-9904,
V21-9909,V21-9959
Part Number Height Amperes Draw Voltage
F38-6600-1 1-3/4" <.25 12-14V DC
NEW!
2.16
2.57
1.82 .37
.91
.24
R1.08
.24
NOTES:
NO SHARP EDGES OR BURRS PERMITTED. 1.
STAMPED RR PART
DO NOT SCALE DRAWING
F16-6700
SHEET 1 OF 1
SCALE:
REV
DWG. NO.
B
TITLE:
NAME
DATE
DIE NUMBER
ENG APPR.
CHECKED
DRAWN
FINISH:
MATERIAL:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL 1/16
ANGULAR: 0.5
DECIMALS:
X = .015
XX = .010
XXX = .005
MACHINED SURFACES:
FINISH: 32 RMS
RADII: FILET .010 FIR
CORNER: 0.10 FIR
PROPRIETARY AND CONFIDENTIAL
THE DRAWING AND TECHNICAL
INFORMATION INCLUDED AND
REFERENCED HEREIN ARE TO BE
TREATED AS TRADE SECRET AND
CONFIDENTIAL TO TACO METALS, INC.
COPYRIGHT
©
1999 ALL RIGHTS
RESERVED.
SIZE
50 N.E. 179th. ST,
MIAMI, FL. 33162
METALS, INC.
UNLESS OTHERWISE SPECIFIED:
1:1
CUST APPR.
DRAWN IN THIRD ANGLE PROJECTION
Stainless Steel Type 304
Rub Rail: V21-9906
Part Number Height Amperes Draw Voltage
F38-6700-1 2-5/32" <.25 12-14V DC
