1.8.5 Cabling
General We recommend that you try to route all cables to and from the TB8100 base
station along the side of the cabinet so the cooling airflow is not restricted.
DC Power Cabling DC power cables should be well supported so that the terminals on the
PMU and on the ends of the cables do not have to support the full weight
of the cables.
Figure 1.8 below shows two recommended methods of securing these cables
to prevent straining either set of terminals.

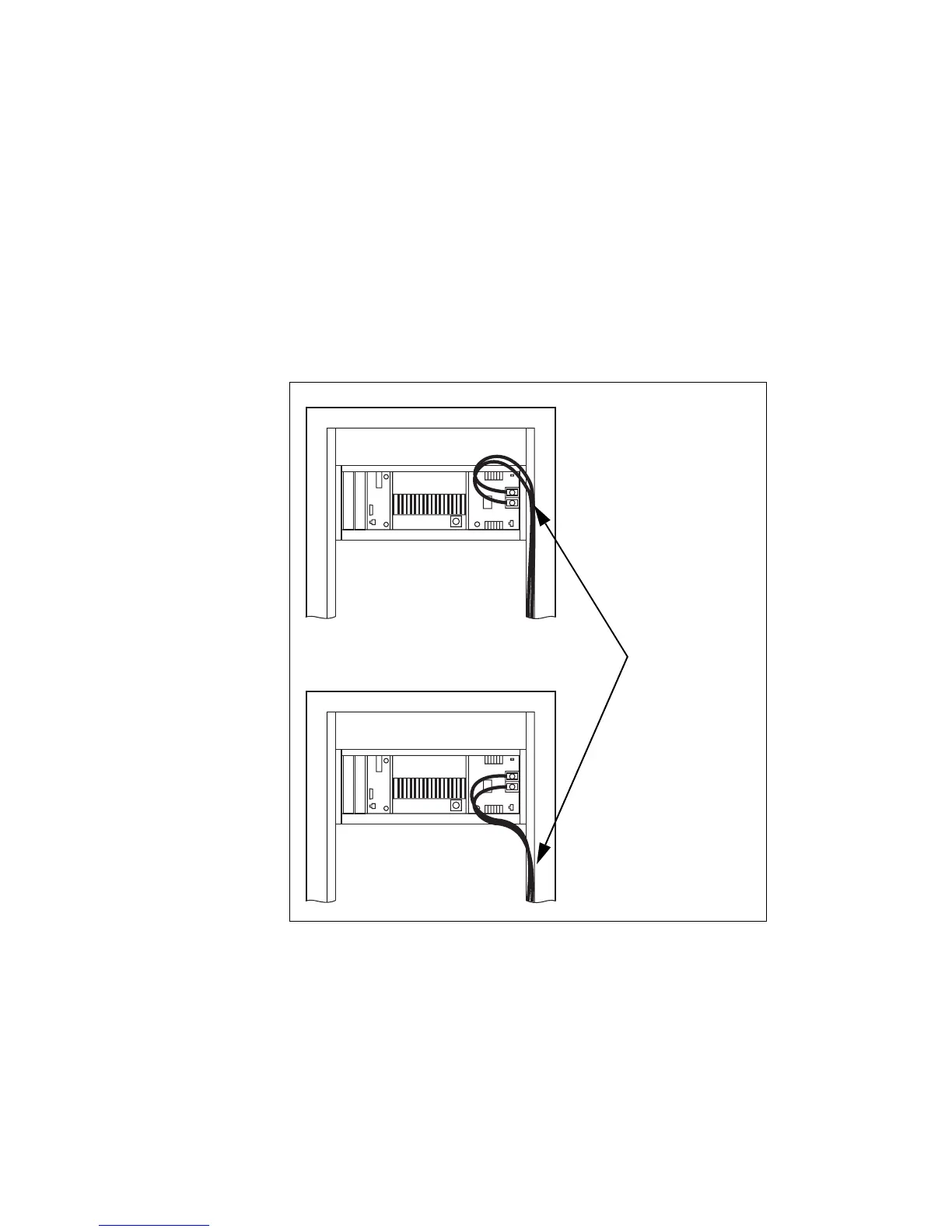

Figure 1.8 DC power cabling
secure the cables to the
cabinet to support their
weight
