4
Last Revised: 12/6/2017
9. MASTER OUTPUT LEVEL: This knob controls the overall level of output. To increase the level, turn the knob to the
right. To decrease the level, turn the knob to the left.
IMPORTANT: Turn this knob all the way to the left before powering up or connecting anything to the speaker. After
all connections are made, turn the speaker on and turn this knob to about one third volume (10 o’ clock position).
Gradually turn it to the right to increase the volume of the overall output only after all channels have been adjusted to
appropriate levels.

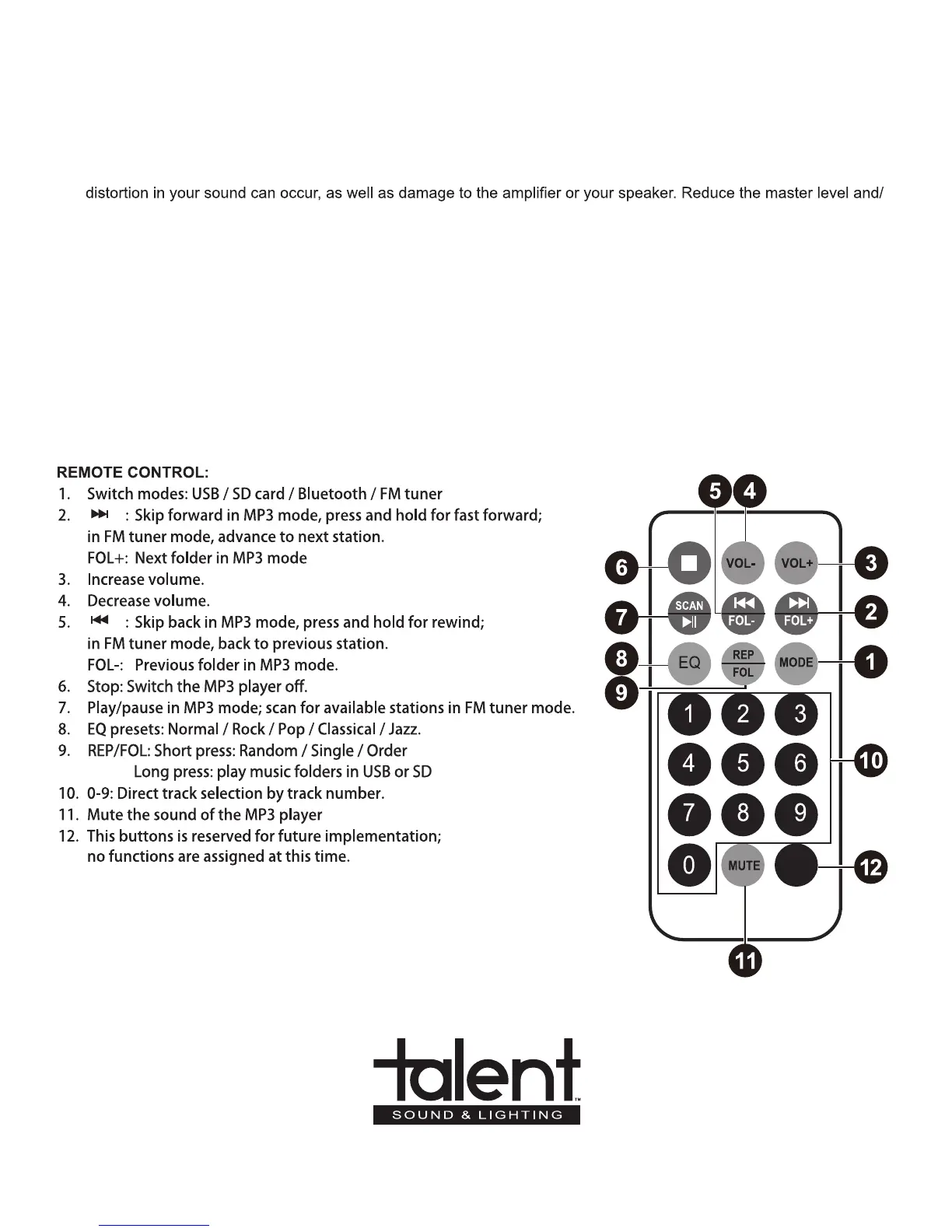

10. CLIP INDICATOR: The “CLIP” LED will be lit when the output signal is being overdriven. This should be avoided, as
or individual channel levels so that the CLIP indicator lights up only infrequently, if at all.
11. POWER INDICATOR: The “POWER” LED will be lit when power is engaged and the unit is on.
12. MASTER GRAPHIC EQUALIZER: This 5-band EQ is designed to provide up to 12 dB cut or boost to the frequencies
as indicated below each slider. The master GEQ is used to make minor adjustments which will impact the overall mix
and should be used sparingly.
13. SPEAKER OUTPUT: You may connect one external passive PA speaker to this jack with a standard two-pole twist-
lock (speakON- or HPC-type) connector. Do not use any speaker with an impedance lower than 8 ohms.
14. IEC POWER CABLE RECEPTACLE: Connect the included AC power cable here. Do NOT attempt to defeat the
ground pin. Disconnect the cable when replacing the fuse, just below the cable receptacle.
15. AC MAINS SELECTOR: Use this switch to select the appropriate AC MAINS power for your location; 110VAC @
60Hz, or 220VAC @ 50 Hz.
16. LED LIGHTING SWITCH: Use this switch to turn the built-in LED lighting on or off.
17. POWER SWITCH: This switch is used to turn the unit on or off.
