NOTE: Check to see that your turbine mounts fit the rails properly side to side. If
you need wider rails, consider cutting new ones from birch ply and install or you
can add filler pieces to the outside of the existing rails BUT you will need to glue
a 1/16” splice plate under the joint area to reinforce the glue joint.

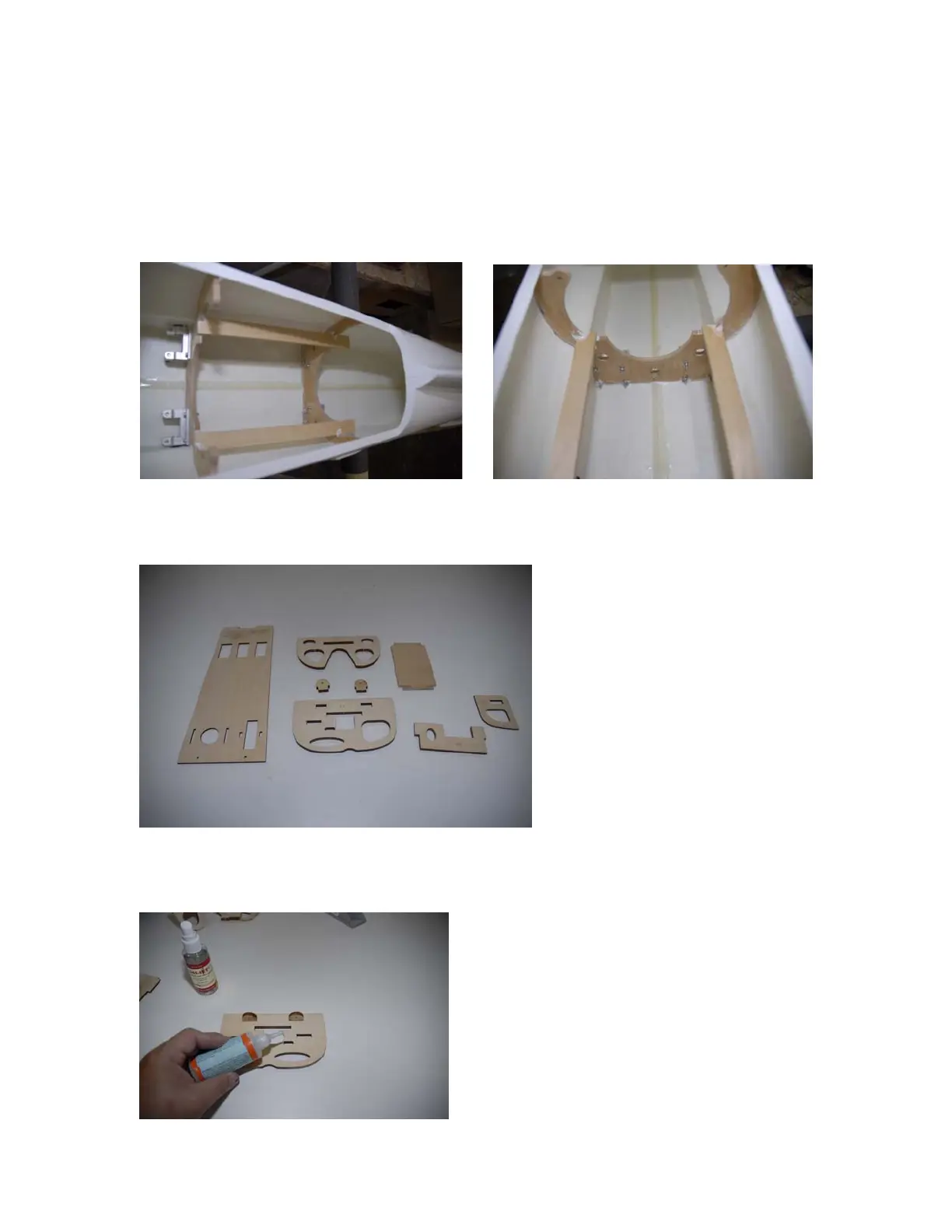

14. Locate and Install the Turbine Mounting Rails as shown using Hysol.
15. Locate the parts shown that makeup the forward equipment tray.
16. Assemble the 2) tray mounting ears to bulkhead F3 using CA+.
