Tamjets F-16 Instruction Manual

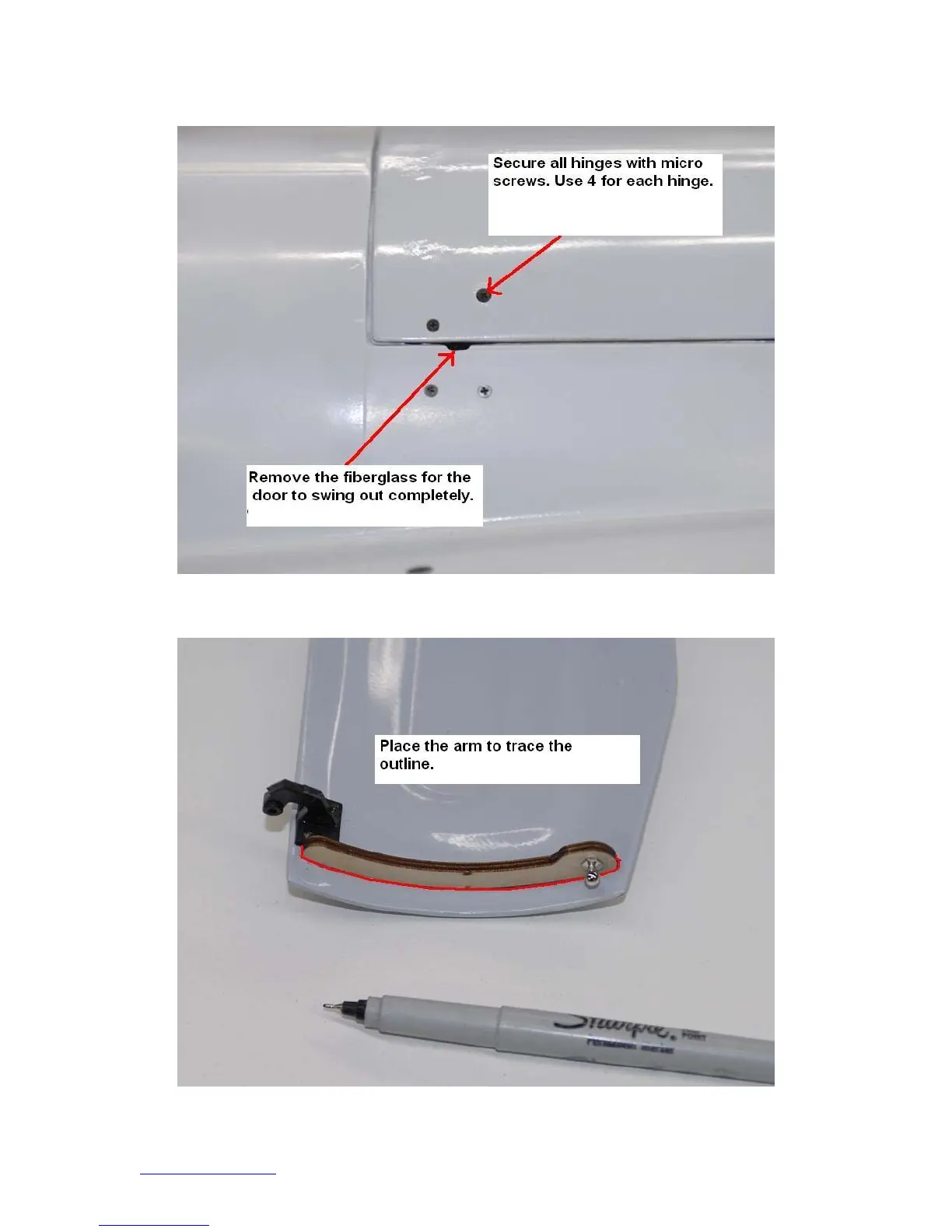

Remove the fiberglass to allow the main door to swing out completely. Secure all the
hinges with micro screws. Use 4 for each hinge. Remove the door to glue in the wood
door arm.
Trace the outline of the wood door arm at its location on the main gear door.
