Tamjets F-16 - Page 42

Tamjets F-16 Instruction Manual

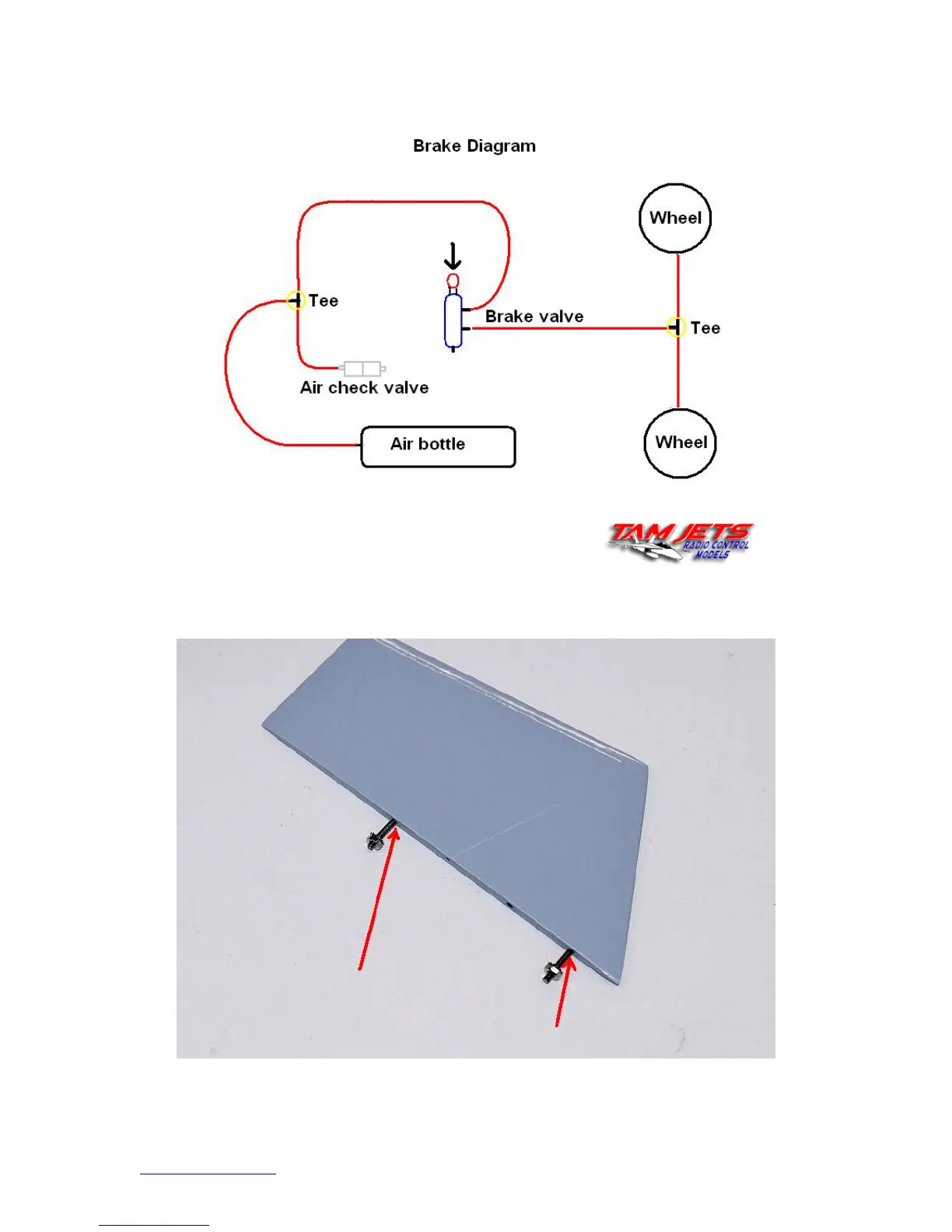

Follow the diagram to set up your brakes. Make sure to lube your O-ring brakes with
little silicone grease to prevent brakes locking up.
Drill 1/8” holes to insert 4-40 threaded rod. Fill the holes with hysol epoxy than insert
4-40 threaded rod.
www.tamjets.com 408-224-7600 42of64
