Tamjets F-16 Instruction Manual

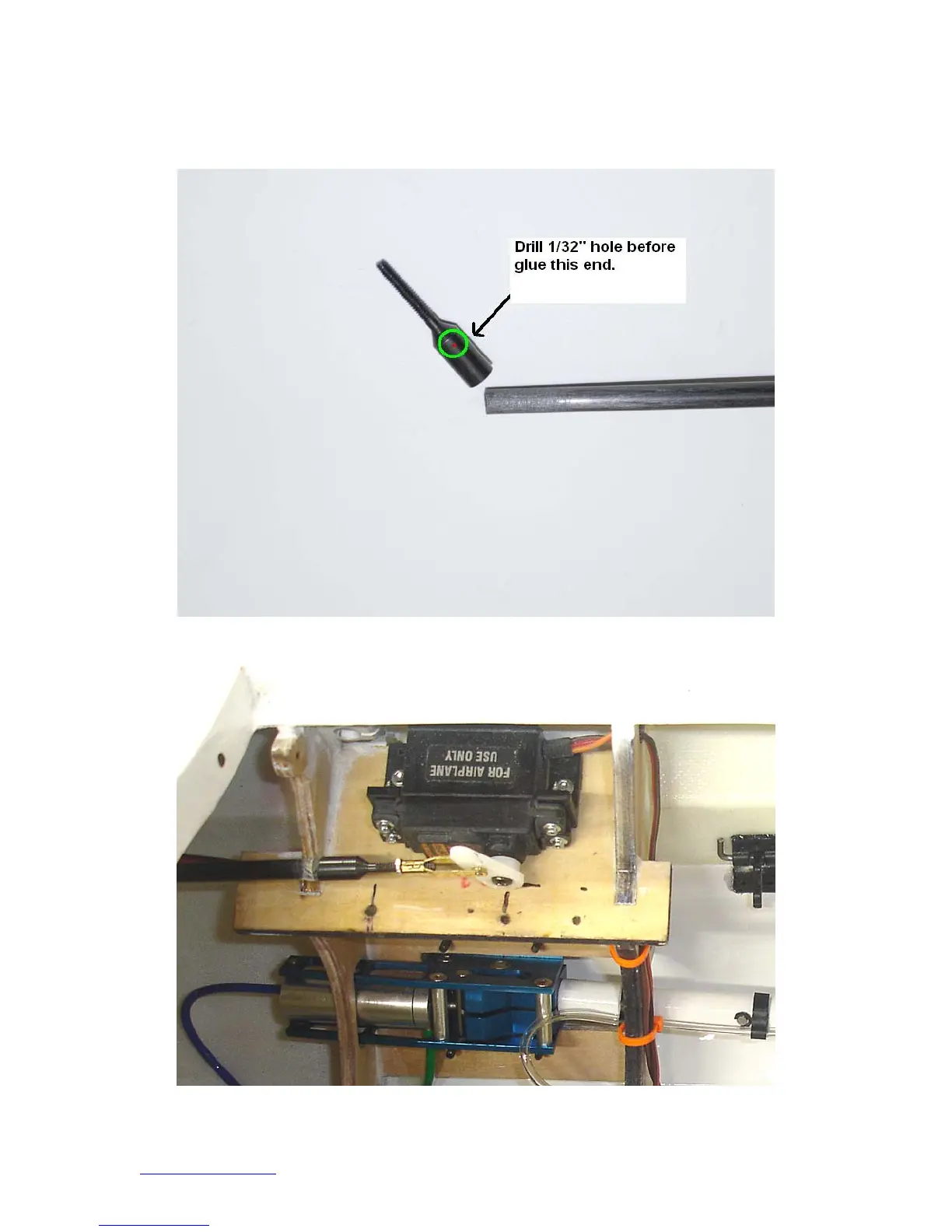

Mark the correct length to cut the carbon fiber push rod.
Drill 1/32” hole to the 4-40 cap before gluing onto the carbon fiber rod. This will allow
air to bleed out when gluing this end.
Connect elevator push rod to the servo arm.
