Tamjets F-16 Instruction Manual

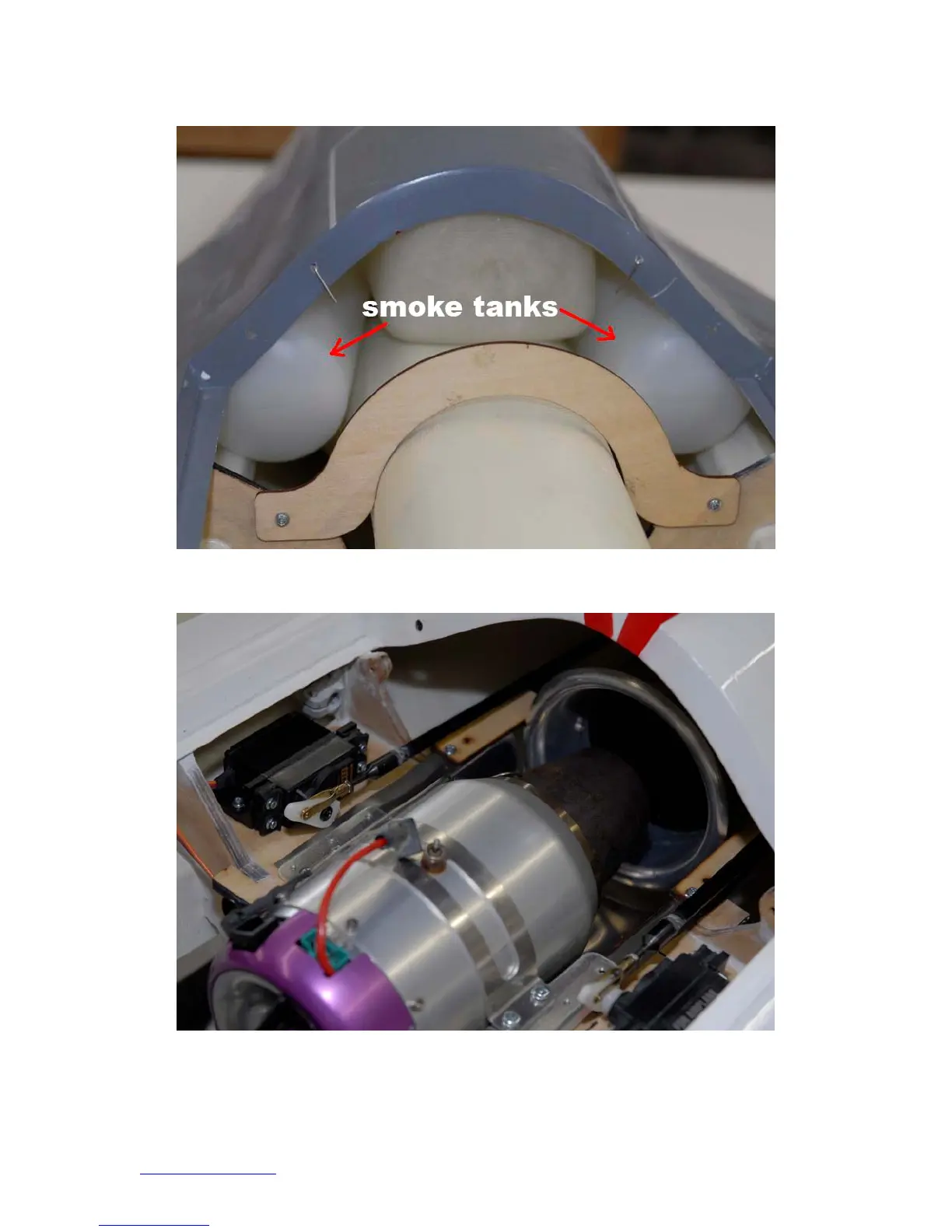

Reinstall inlet ducting. Photo shows smoke tanks located on each side, main fuel tank on
top of the inlet and inlet secure brace attached to the former as shown. It is not necessary
to install the inlet brace if you do not wish not to use it.
Align engine center to the pipe. Leave ½” gap between the engine nozzle and pipe bell
mount. Drill 3/32” holes to mount the engine to the rail. Use 4-40 screws to mount the
engine.
