Tamjets F-16 Instruction Manual

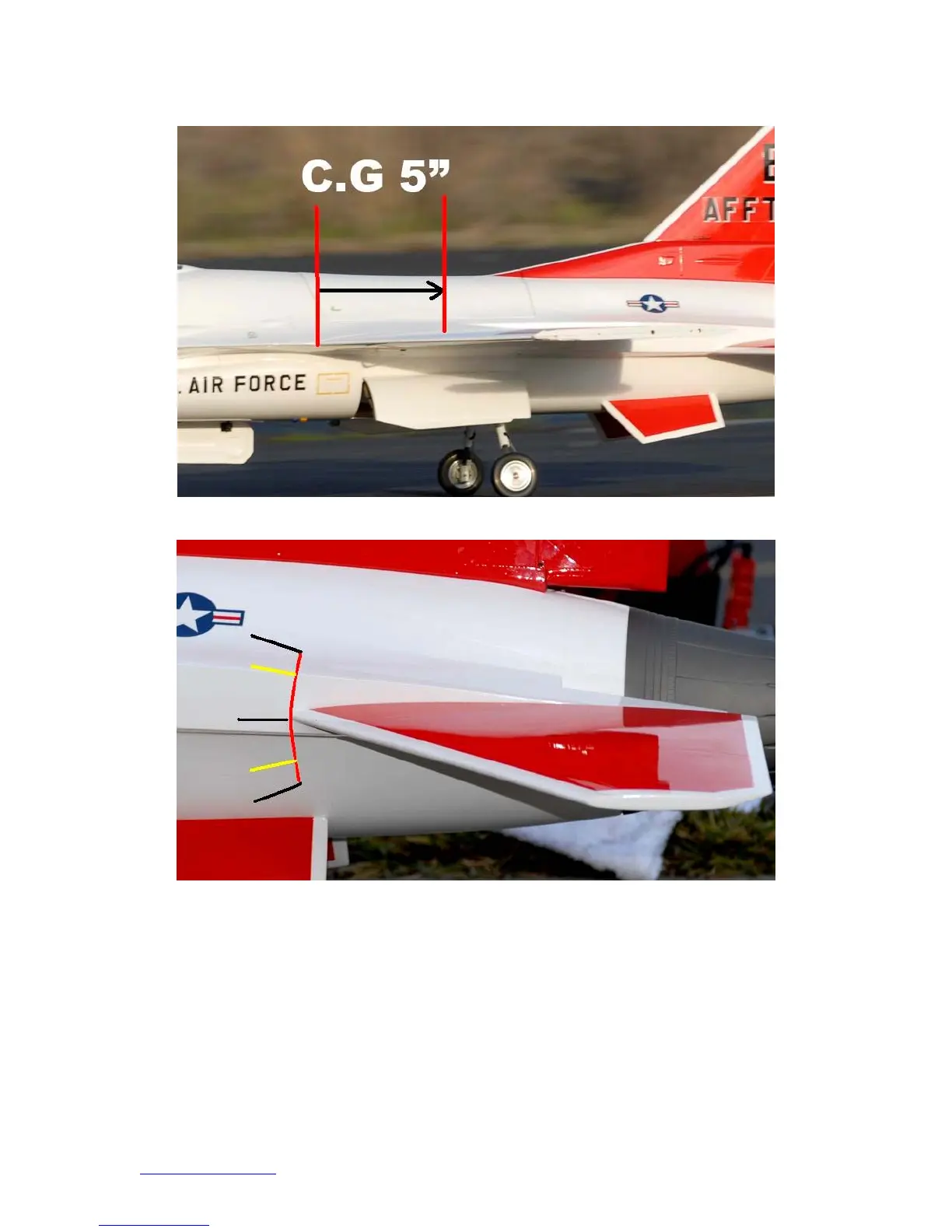

With gear down and UAT tank full. Set C.G at 5” back from the leading edge. Measured
from where the wing meets the fuselage.
Stabs leading edge neutral position is 7/16” below center of the fuse.
Elevator travel: 1.75” up and 1.75” down.
Taileron travel: 1” left and 1” right.
Rudder travel: 0.75” left and 0.75” right.
Elevator Expo 20%
Taileron Exp 20%
Rudder 20%
Left roll: left stab leading edge is down and right stab leading edge is up.
Right roll: right stab leading edge is down and left stab leading edge is up.
