Owner’s Manual
AST-210,AST-5000

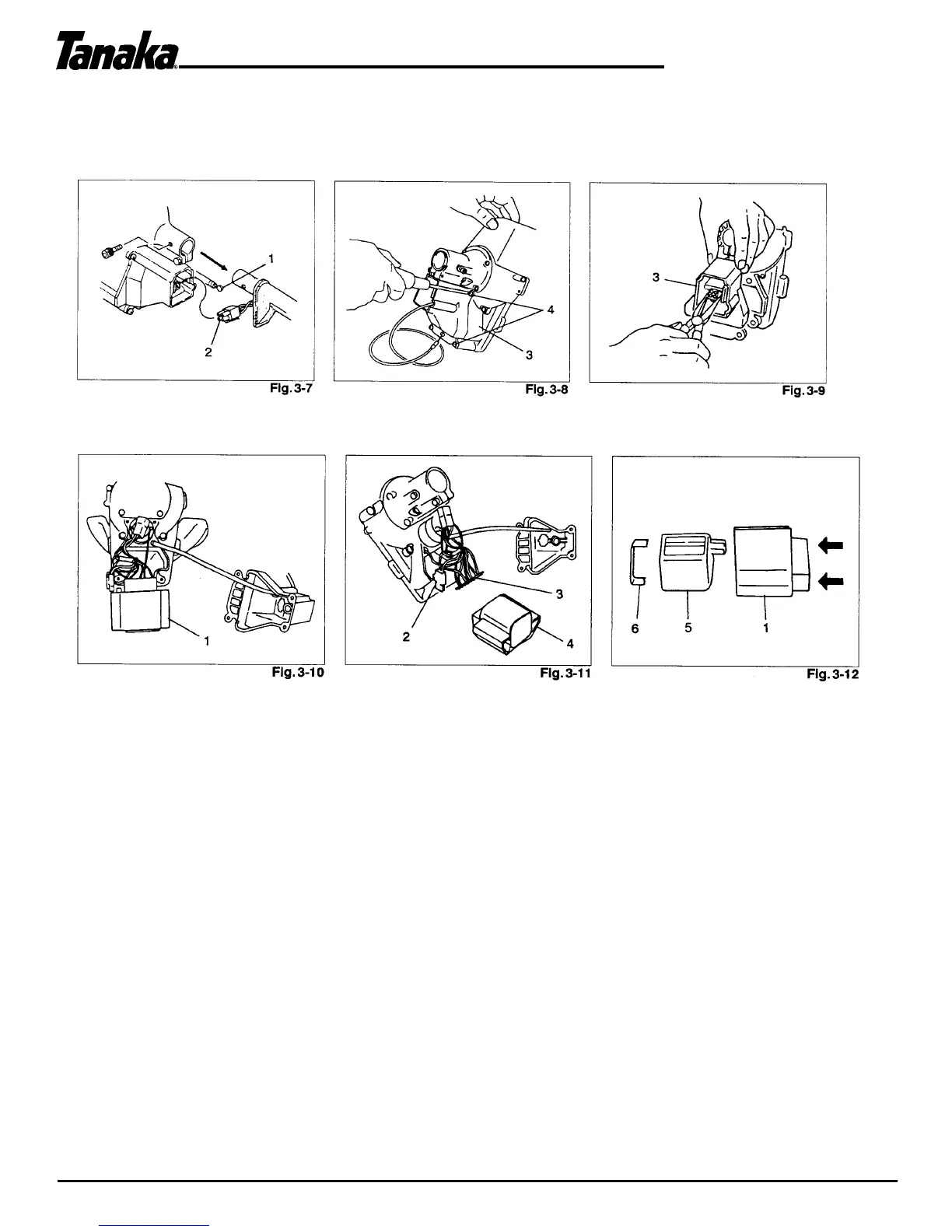

Battery Removal (AST-5000)
1.Separate drive shaft from engine and throttle wire (1) from throttle trigger. Disconnect couplers (2).
(Fig. 3-7)
2. Remove four screws (4), which are retaining fan case cover (3). (Fig. 3-8)
3. Bind the female coupler with long nose pliers and push it to separate the coupler from fan case cover (3).
(Fig. 3-9)
4. After removing the fan case cover, pull out the battery with the waterproof cover (1). (Fig. 3-10)
5. Disconnect battery couplers (2), pull out circuit plate (3) and then, separate the battery (4) with the
waterproof cover from the engine main unit. (Fig. 3-11)
6. Remove vinyl tape (6) which fixes battery (5) on the waterproof cover (1), then push out the battery from the
cover (1). (Fig. 3-12)
