TED-262L/DH

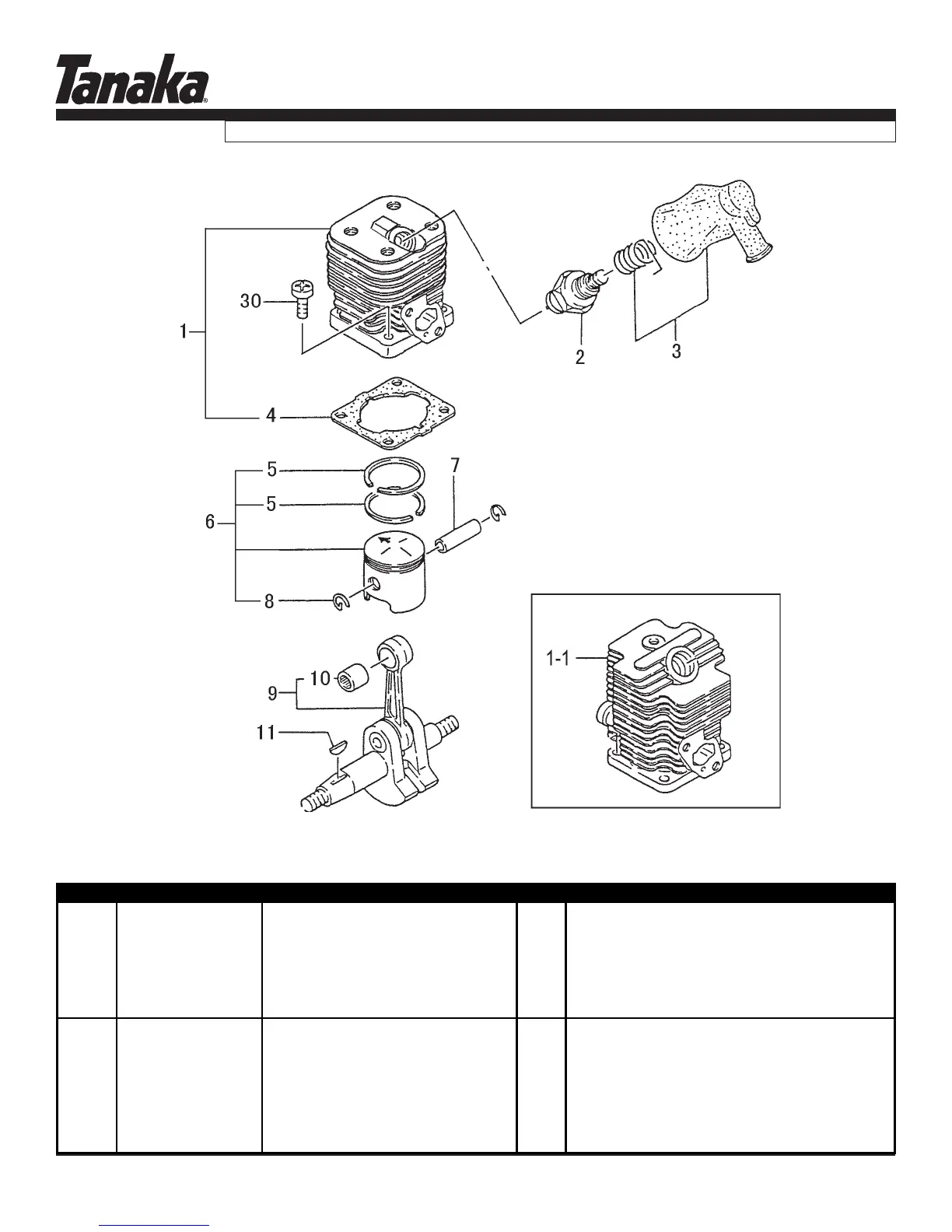

CYLINDER, PISTON, CRANKSHAFT • FIGURE 1
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
1-1-1 00201601800 CYLINDER 1 ~S279070
1-1 0010160090 SET,CYLINDER 1 S279071~ Includes gasket
1-2 0180050221 PLUG,SPARK 1
1-3 1570097A900 CAP,SPARK PLUG,ASS'Y 1
1-4 01701620200 GASKET,CYLINDER 1
1-5 04101601200 RING,PISTON 2
1-6 0300162090 PISTON SET 1 Includes piston pin and circlips
1-7 03701700200 PIN,PISTON 1
1-8 03900000201 CIRCLIP,PISTON PIN 2
1-9 0460162S81 CRANKSHAFT 1
1-10 99962091338 BEARING,NEEDLE,KTV91313 1
1-11 06810100200 KEY,WOODRUFF,3X13X4.5 1
1-30 99414050161 SCREW,5X16/S 4
