Tanaka TED-262L Illustrated Parts Manual

www.tanakapowerequipment.com
PARTS INFORMATION
custsvc@nikko-tanaka-usa.com
Page 4
TED-262L/DH

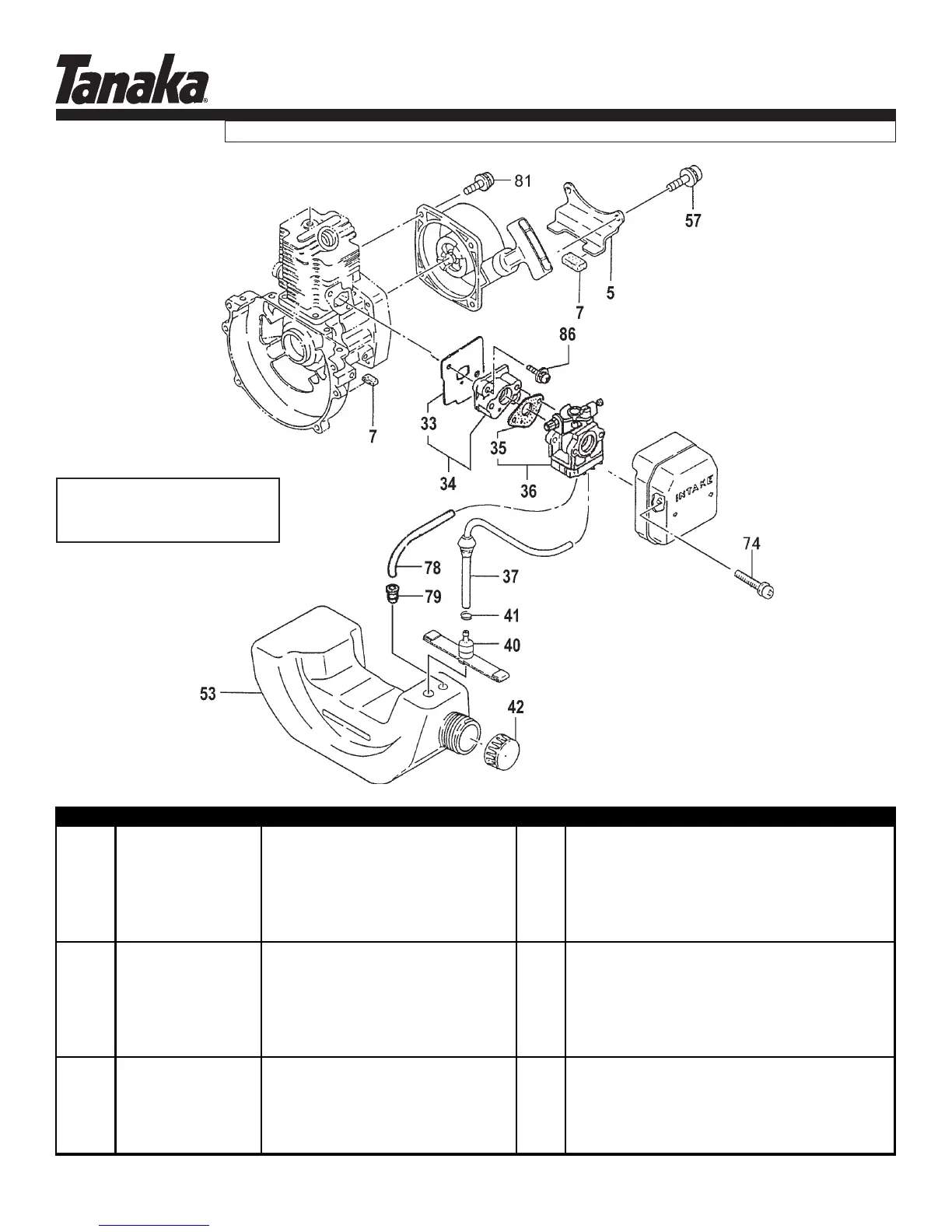

FUEL SYSTEM (LATEST REV) • FIGURE 3
Units after serial
number Z207351
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
3-5 65301620200 BRACKET,TANK 1
3-7 65506100200 CUSHION,TANK 4
3-33 4030160020 GASKET,INLET MANIFOLD 1
3-34 4040160091 INSULATOR SET 1 Includes gasket
3-35 4020602K21 GASKET,CARBURETOR 1
3-36 4550160290 CARBURETOR SET 1 Includes gasket
3-37 2230650090 PIPE,FUEL,ASS'Y 1
3-40 6750608A900 FILTER,FUEL 1
3-41 68000731201 CLIP 6.3 1
3-42 5950300290 CAP,TANK (BLACK/RED) 1
3-53 5910162080 TANK,FUEL 1
3-57 99415040182 SCREW,PS,4X18 2
3-74 99416050601 SCREW,5x60WS 2
3-78 7000300507 PIPE,FUEL,3X5X75 1
3-79 53432710200 GROMMET,FUEL PIPE 1
3-81 99415040142 SCREW,4X14/PS 2
3-86 99416050241 SCREW 5x24WS 2
