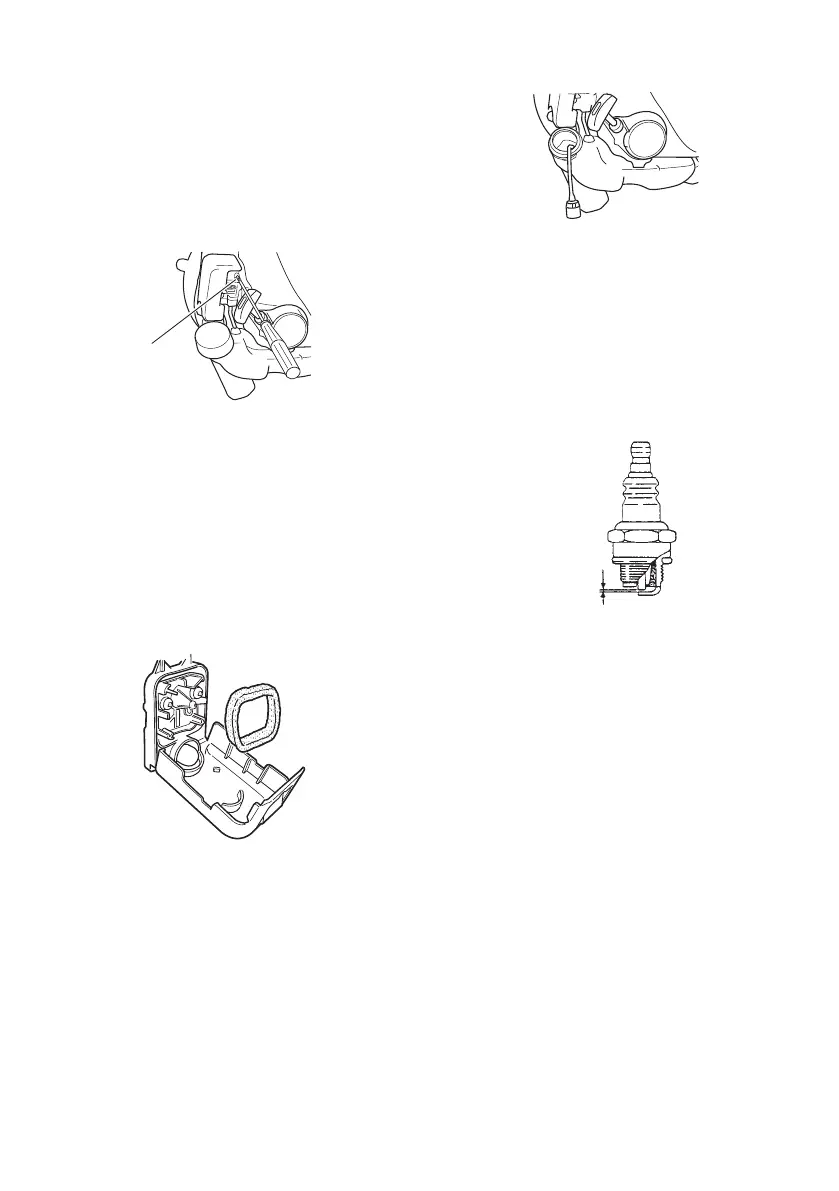

Carburetor adjustment (Fig. 10)
In the carburetor, fuel is mixed with air. When the engine is test
run at the factory, the carburetor is basically adjusted. A further
adjustment may be required, according to climate and altitude. The
carburetor has one adjustment possibility:
T = Idle speed adjustment screw.
Idle speed
adjustment (T)
Check that the airlter is clean. If adjustment is required, turn
IDLE speed Adjustment Screw (T) close (clockwise) to increase
engine speed, open (counterclockwise) to decrease engine speed.
Standard Idle rpm is 2800-3200rpm.
T
Fig. 10
RECOMMENDATION
CARBURETOR ADJUSTMENT NEEDS THE SKILL OF
EXPERIENCED OR WELL TRAINED PEOPLE, OR IS
RECOMMENDED TO TAKE THE UNIT TO TANA KA DEALER.
Air lter (Fig. 11)
The airlter must be cleaned from dust and dirt in order to avoid:
Carburetor malfunctions
Starting problems
Engine power reduction
Unnecessary wear on the engine parts
Abnormal fuel consumption
Remove the air cleaner cover by pushing and pulling back the tab
on the top.
Clean the airlter daily or more often if working in exceptionally
dusty areas.
Fig. 11
Cleaning the air lter
Open the airlter cover and thelter. Rinse it in warm soap suds.
Check that thelter is dry before reassembly. An airlter that has
been used for some time cannot be cleaned completely. Therefore,
it must regularly be replaced with a new
one. A damagedlter must
always be replaced.
Fuel lter (Fig. 12)
Drain all fuel from fuel tank and pull fuellter line from tank. Pull
lter element out of holder assembly and rinse element in warm
water with detergent.
Rinse thoroughly until all traces of detergent are eliminated.
Squeeze, do
not wring, away excess water and allow element to air
dry.
NOTE
If element is hard due to excessive dirt buildup, replace it.
Fig. 12
Spark plug (Fig. 13)
The spark plug condition is in uenced by:
An incorrect carburetor setting
Wrong fuel mixture (too much oil in the gasoline)
A dirty airlter
Hard running conditions (such as cold weather)
These factors cause deposits on the spark plug electrodes, which
may result
in malfunction and starting di culties. If the engine
is low on power, di cult to start or runs poorly at idling speed,
always check the spark plugrst. If the spark plug is dirty, clean it
and check the electrode gap. Re-adjust if necessary. The correct
gap is
0.6 mm. The spark plug should be replaced after about 100
operation hours or earlier if the electrodes are badly eroded.
0.6 mm
Fig. 13
NOTE
In some areas, local law requires using a resistor spark plug
to suppress ignition signals. If this machine was originally
equipped with resistor spark plug, use same type of spark plug
for replacement.
Maintenance schedule
Below you willnd some general maintenance instructions. For
further information please contact
your Tanak a dealer.
Daily maintenance
Clean the exterior of the unit.
Check the dust cover for damage or cracks. Change the cover
in case of impacts or cracks.
Check that nuts and screws are su ciently tightened.
Weekly maintenance
Check the starter, especially the cord.
Clean the exterior
of the spark plug.
Remove the spark plug and check the electrode gap. Adjust it
to 0.6 mm, or change the spark plug.
Clean the airlter.
Monthly maintenance
Rinse the fuel tank with gasoline, and clean fuellter.
Clean the exterior of the carburetor and the space around
it.
Quarterly maintenance
Clean the coolingns on the cylinder.
Clean the fan and the space around it.
Clean the mu er of carbon.
CAUTION
Cleaning of cylinderns, fan and mu er shall be done by a
Tan aka dealer.
NOTE
When ordering the parts to your nearest dealer,
please use
the item No. showing on the parts breakdown section in this
instruction.
000BookTRB24EAPEng.indb6000BookTRB24EAPEng.indb6 2012/06/0417:44:342012/06/0417:44:34
