Dismantling
@
Top
cover,
rear
(1).
@
Front
panel
(4).
Remove
rotary
knobs.
@
Bottom
cover
(5).
@
Top
cover,
front
(2).
@
Rear
panel
(3).

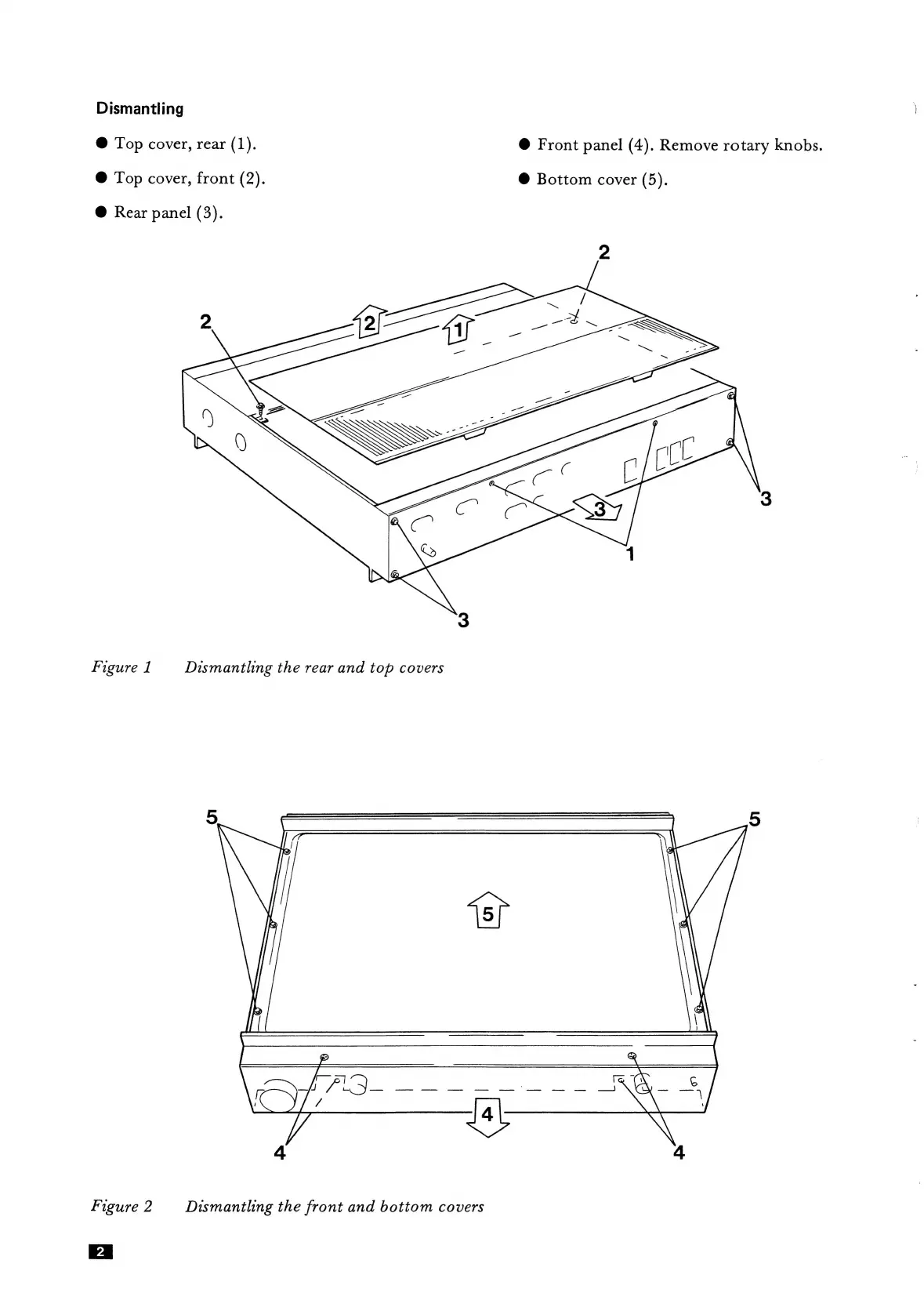

Figure
1
Dismantling
the
rear
and
top
covers
Figure
2
Dismantling
the
front
and
bottom
covers
