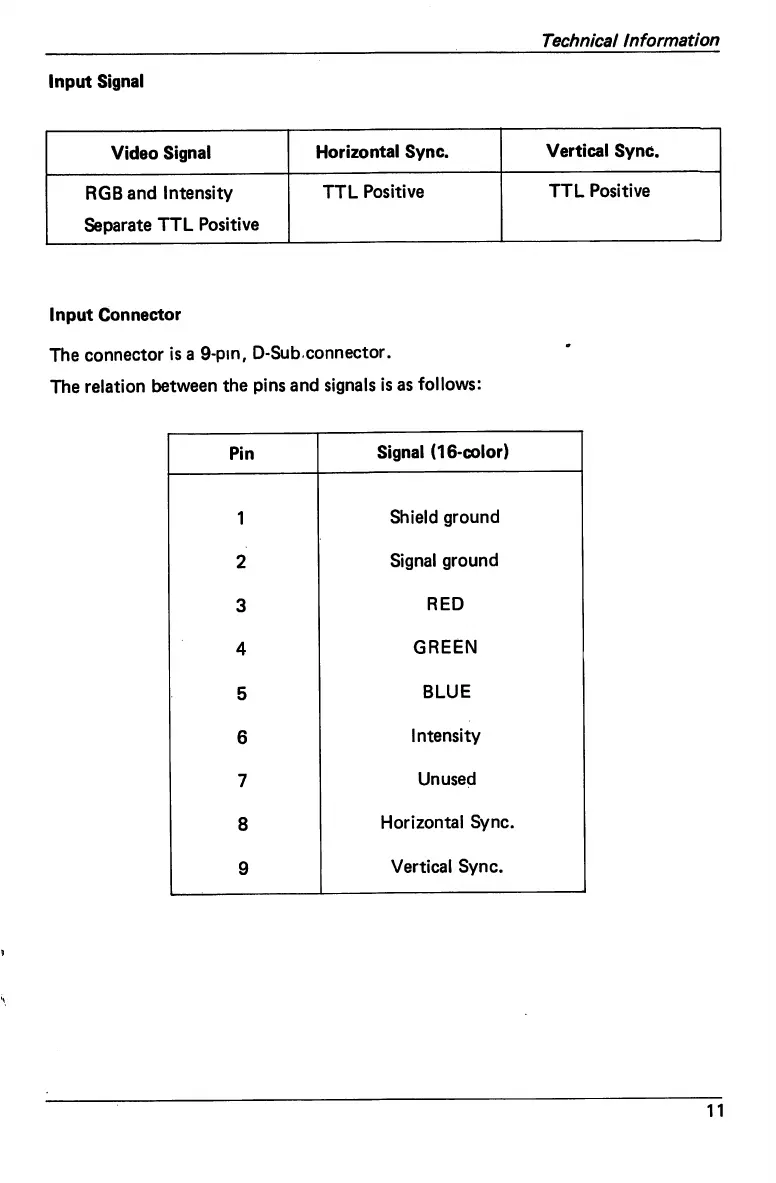

Technical Information
Input Signal
Video Signal
Horizontal Sync.
Vertical Sync.
RGB and Intensity
Separate TTL Positive
TTL Positive
TTL Positive
Input Connector
The connector is a 9-pin, D-Sub connector.
The relation between the pins and signals is as follows:
Pin
Signal (16-color)
1
Shield ground
2
Signal ground
3
RED
4
GREEN
5
BLUE
6
Intensity
7
Unused
8
Horizontal Sync.
9
Vertical Sync.
11
