CVS 6
CVS6 data file // issue 1.06 // 15.01.08

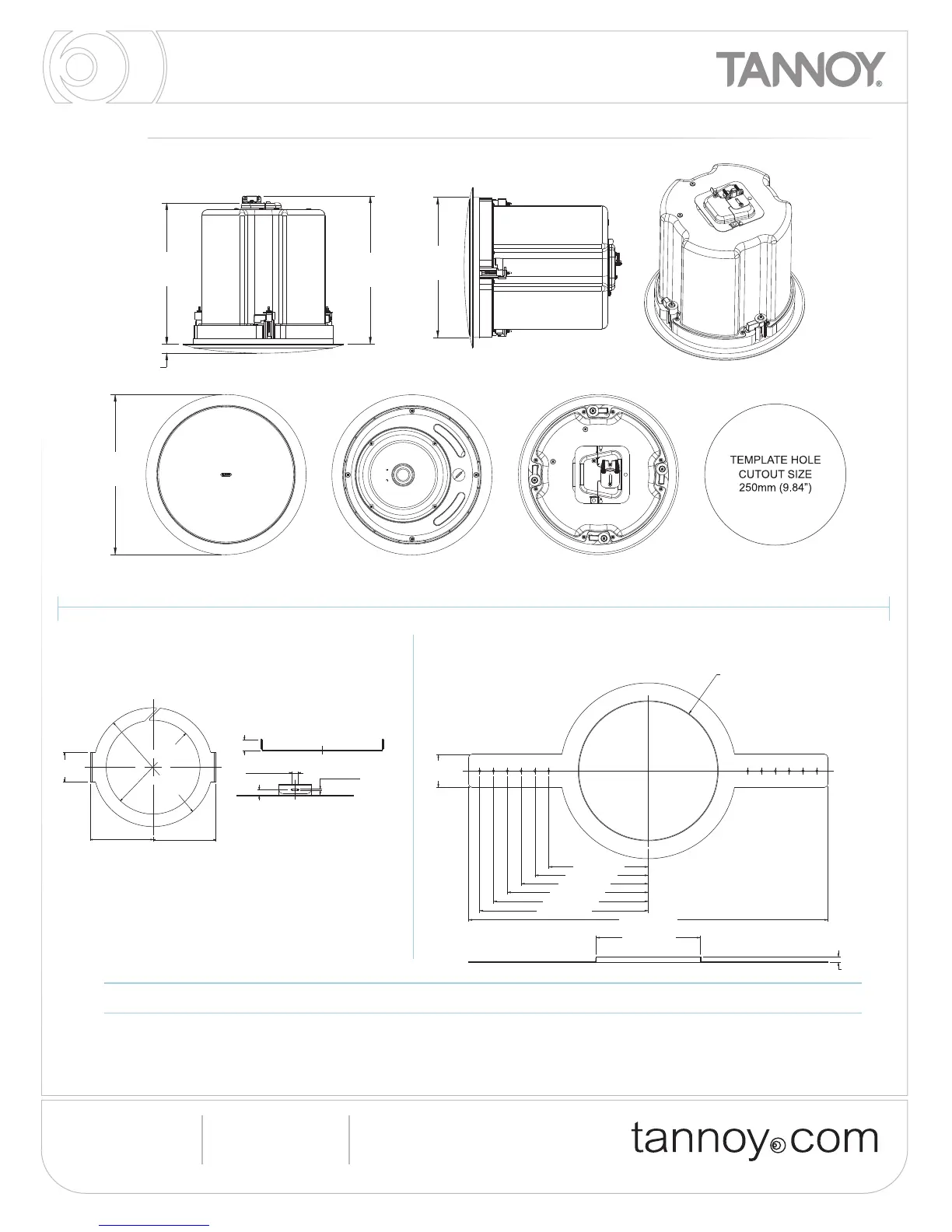

DIMENSIONAL SKETCHES
TEMPLATE HOLE CUTOUT SIZE - 250mm (9.84
"
)
CVS4
27.00
[1.06"]
15.00
[0.59"]
16.00 [0.63"]
4.50 [0.18"]
SUPPLIED ACCESSORIES
C-RING
244.6
[9.63"]
246.5
[9.70"]
15.9
[0.63"]
258.5
[10.18"]
2
79.5
[
11.01"]
OPTIONAL ACCESSORIES
PLASTER (MUD) RING
60.00
[2.36"]
180.00 [7.09"]
205.00 [8.07"]
230.00 [9.06"]
255.00 [10.04"]
280.00 [11.02"]
305.00 [12.01"]
650.00 [25.59"]
10.00
[0.39"]
251.00 [9.88"]
318.00 [12.52"]
168.00 [5.96"]
251.00
[7.40"]
318.00
[11.34"]
80.00
[3.15"]
168.50 [5.96"]
8001 4240 CVS6 White / paintable 2 15.00 (33.07)
8001 4180 CVS6 Plaster (Mud) Rin Zinc plated steel 10 6.00 (13.23)
8001 3830 CMVS6 PI back can Zinc plated steel 1 3.10 (6.83)
PART NUMBER PACKED WEIGHTPACKED QUANTITYCOLOURMODEL NAME
Ordering Information
