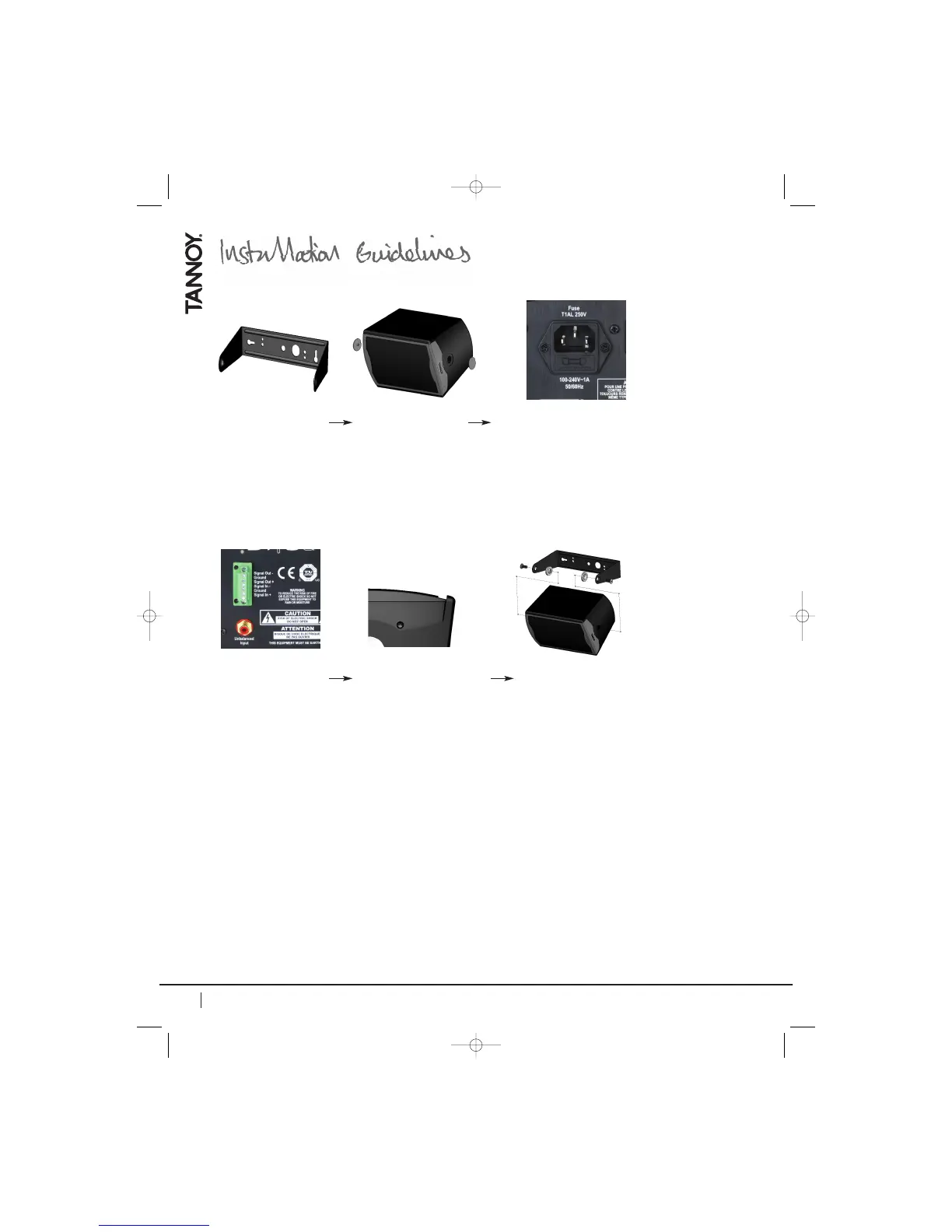

USING SUPPLIED YOKE BRACKET
1. Fix the yoke bracket
to the surface using a
suitable fixing method.
2. Remove the yoke
trims from the product
to access the bracket
fixing points.
3. Connect the supplied
IEC power cord to the
Di5a. Note that the
Di5a is supplied with a
mains cord appropriate
to your country. For UK
and European
countries, please select
the mains cord which
suits your mains supply
socket.
4. Connect the
loudspeaker
appropriately using
either the RCA or
euro-type socket.
5. Adjust the level
control underneath the
grille trim.
6. Offer the speaker up
to the bracket and attach
it using a 5mm allen key
and supplied fixings.
The buffers that fit
between the speaker
and bracket should be
positioned as shown
above. Use the longer
hex-screws supplied
when mounting the
yoke bracket.
