Tannoy DVS Series User Manual

10 DVS Series Quick Start Guide 11
Installation Guidelines Product Dimensions DVS 8
Product Dimensions DVS 6

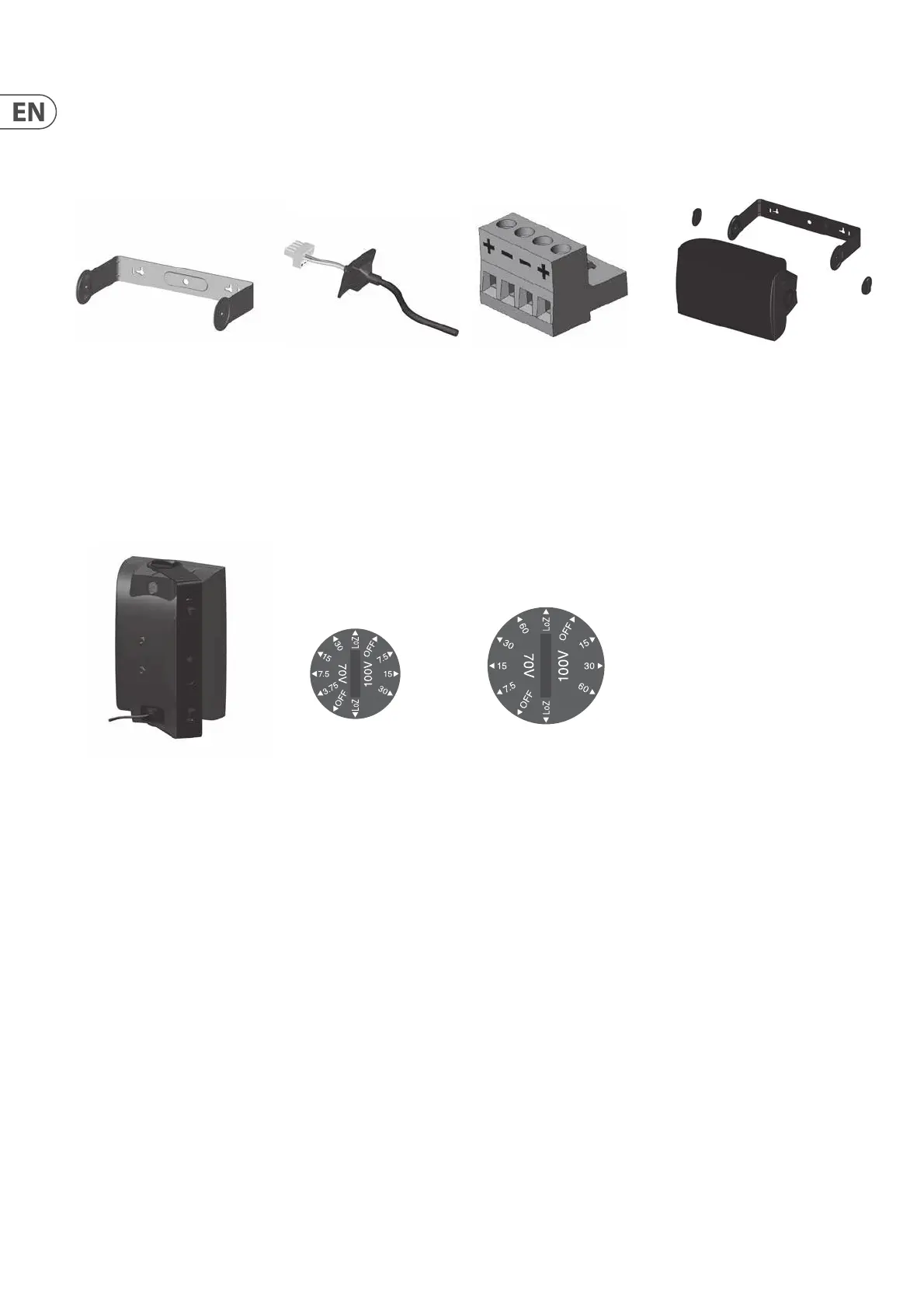

1. Fix the yoke bracket to the
surface using a suitable
xing method.
2. Feed the speaker cable through
the rubber input seal, then
connect the euro-type plug to
the wires, observing the
correct polarity.
3. For connection to the
loudspeaker, use pins 1 (+)
and 2 (-). Pins 3 (-) and 4 (+)
are in parallel for connection
to additional speakers in a
distributed line.
4. Oer the speaker up to the
bracket and attach using the
thumb screws provided.
5. Connect the euro plug,
then place the rubber input
seal over to ensure the speaker
is sealed.
6. The DVS 4t models are tted
with 30W transformers.
The speaker is supplied in
low impedance mode.
NEVER CONNECT THE SPEAKER
TO A 70/100 VOLT AMPLIFIER
WHILE IT IS SET FOR LOW
IMPEDANCE!
7. The DVS 6t and DVS 8t
models are tted with 60W
transformers. The speaker
is supplied in low
impedance mode.
NEVER CONNECT THE SPEAKER
TO A 70/100 VOLT AMPLIFIER
WHILE IT IS SET FOR LOW
IMPEDANCE!
340.5
(13.41
")
304.5
(11.99")
31.0
(1.22
")
4.6
(0.18
")
246.0
(9.69
")
206.5
(8.13
")
53.0
(2.09
")
216.5
(8.52
")
206.3
(8.12
")
212.2
(8.36
")
26.7
(1.05")
298.0
(11.73")
4.6
(0.18")
357.0
(14.06")
451.8
(17.79")
415.7
(16.37")
60.5
(2.38")
290.0
(11.42")
296.0
(11.65")
265.1
(10.44")
