Tannoy DVS Series User Manual

12 DVS Series Quick Start Guide 13

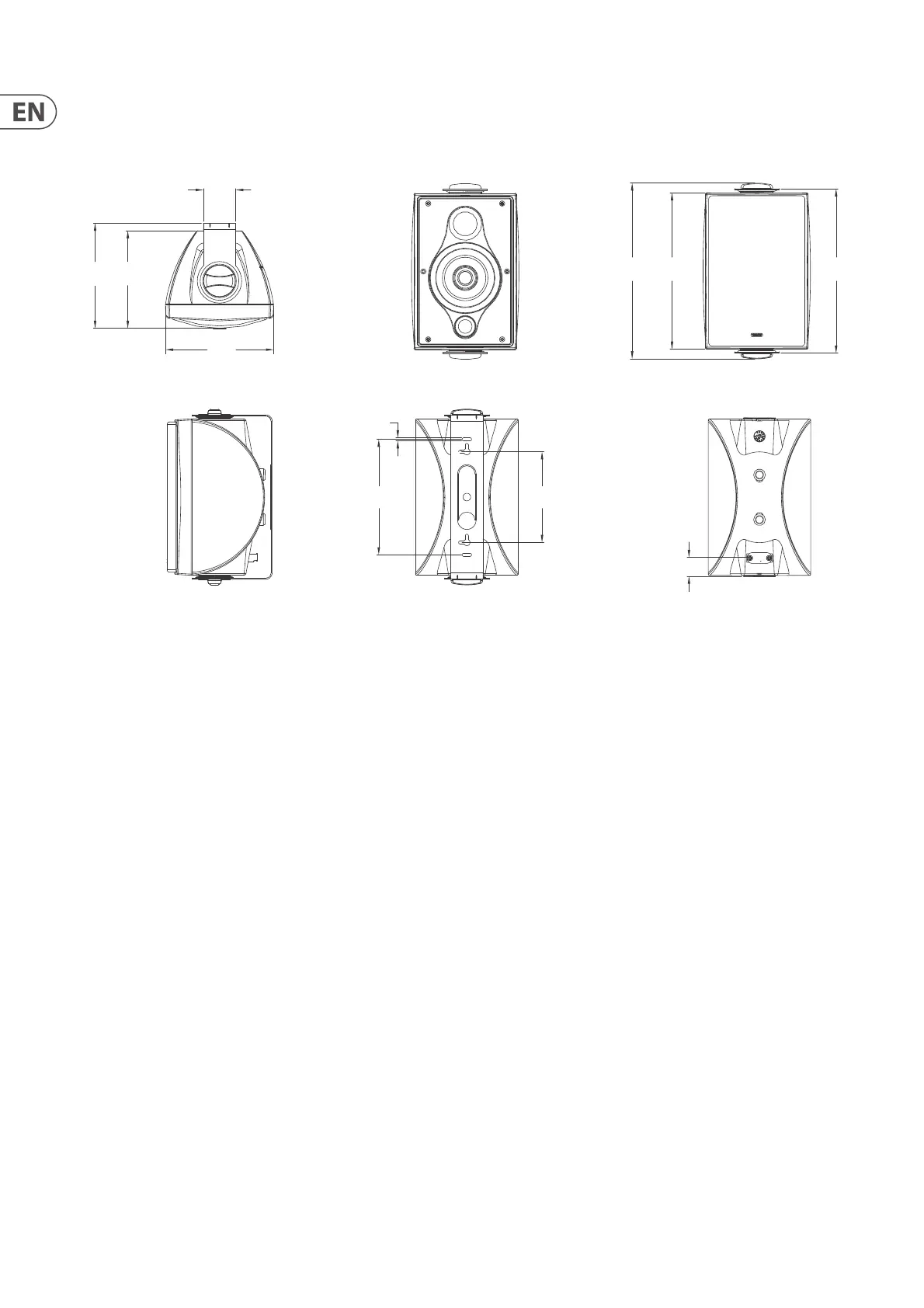

Product Dimensions DVS 4
DVS 8/8T DVS 6/6T DVS 4/4T
Performance
Frequency response (-3 dB)
75 Hz - 20 kHz 80 Hz - 20 kHz 75 Hz - 20 kHz
Frequency response (-10 dB)
60 Hz - 30 kHz 65 Hz - 30k Hz 60 Hz - 30 kHz
System sensitivity (1 W @ 1 m)
90 dB 88 dB 84 dB
Dispersion (-6 dB)
80 degrees conical 90 degrees conical 110 degrees conical
Transducers
Coaxial Coaxial Coaxial
Low frequency
200 mm (8.00") mineral loaded cone material 165mm (6.5") mineral loaded cone material 100 mm (4.00") mineral loaded cone material
High frequency
20 mm (0.79) 20 mm (0.79) 20 mm (0.79)
Crossover
3.4 kHz - 2nd order LF, 2nd order HF 4.3 kHz - 2nd order LF, 2nd order HF 3.9 kHz - 2nd order LF, 2nd order HF
Directivity (Q)
12.3 averaged 1 kHz to 10 kHz 10.6 averaged 1 kHz to 10 kHz 6.5 averaged 1 kHz to 10 kHz
Directivity (DI)
10.0 averaged 1 kHz to 10 kHz 9.6 averaged 1 kHz to 10 kHz 5.3 averaged 1 kHz to 10 kHz
Rated maximum SPL 
108 dB (average)
114 dB (peak)
105 dB (average)
111 dB (peak)
100 dB (average)
106 dB (peak)
Transformer Version
Transformer taps
70 V
60 W (83 ) / 30 W (165 ) / 15 W (330 ) /
7.5 W (660 ) / OFF & low impedance operation
60 W (83 ) / 30 W (165 ) / 15 W (330 ) /
7.5 W (660 ) / OFF & low impedance operation
30 W (165 ) / 15 W (330 ) / 7.5 W (660 ) /
3.75 W (1320 ) / OFF & low impedance operation
100 V
60 W (165 ) / 30 W (330 ) / 15 W (660 ) /
OFF & low impedance operation
60 W (165 ) / 30 W (330 ) / 15 W (660 ) /
OFF & low impedance operation
30 W (330 ) / 15 W (660 ) / 7.5 W (1320 ) /
OFF & low impedance operation
Maximum wire gauge for connector
2.5 mm CSA (AWG12) 2.5 mm CSA (AWG12) 2.5 mm CSA (AWG12)
Safety Agency Ratings
UL-1480, CE UL-1480, CE UL-1480, CE
Power Handling
Average
70 W 60 W 40 W
Programme
140 W 120 W 80 W
Peak
280 W 240 W 160 W
Recommended amplier power
140 W @ 6 Ohms 120 W @ 6 Ohms 80 W @ 6 Ohms
Nominal impedance
6 Ohms 6 Ohms 6 Ohms
Construction
Enclosure
ABS ABS ABS
Grille
Aluminium, painted Aluminium, painted Aluminium, painted
Connectors
Euroblock type removable locking connector with
screw terminals with “loop through” facility
Euroblock type removable locking connector with
screw terminals with “loop through” facility
Euroblock type removable locking connector with
screw terminals with “loop through” facility
Supplied accessories
Yoke bracket Yoke bracket Yoke bracket
Packed quantity
2 2 2
Dimensions (H x W x D)
451.8 x 290.0 x 296.0 mm
(17.79" x 11.42" x 11.65")
340.5 x 212.2 x 216.5 mm
(13.41" x 8.36" x 8.52")
277.0 x 170.4 x 165.6 mm
(10.91" x 6.71" x 6.52")
Non-transformer versions
Net weight
Shipped weight
5.7 kg (12.6 lbs)
14.5 kg (32 lbs)
3.6 kg (8 lbs)
8.9 kg (20 lbs)
2.3 kg (5 lbs)
5.7 kg (12.6 lbs)
Transformer versions
Net weight
Shipped weight
7 kg (15.4 lbs)
17.1 kg (37.7 lbs)
4.8 kg (10.6 lbs)
11.3 kg (25 lbs)
2.8 kg (6.2lbs)
6.7 kg (15 lbs)
Notes
(1) Average over stated bandwidth. Measured at 1 metre on axis in an anechoic chamber
(2) Unweighted pink noise input, measured at 1 metre in an anechoic chamber
A full range of measurements, performance data, and Ease Data can be downloaded from www.tannoy.com
TANNOY operates a policy of continuous research and development. The introduction of new materials or manufacturing
methods will always equal or exceed the published specications, which TANNOY reserves the right to alter without prior
notice. Please verify the latest specications when dealing with critical applications.
277.0
(10.91")
246.4
(9.70")
259.0
(10.20")
29.7
51.0
(2.01")
170.4
(6.71")
165.6
(6.52")
153.6
(6.05")
4.6
(0.18")
143.0
(5.63")
182.0
(7.17")
(1.17")
Specications
