Tannoy i6AW User Manual

All Weather Loudspeaker
70Hz - 20kHz
53Hz
20 - 160 Watts / 8Ω
90 Watt
180 Watt
360 Watt
90dB
93dB
105dB (average)
109dB (average) 115dB (peak)
30, 15, 7.5, 3.75 Watts
8Ω
1.6kHz - passive
90˚ Conical
1 x 165mm (6.5”) Dual Concentric™
APPLICATIONS
• Foreground music & paging systems
• High level music and speech reinforcement
•Theme bars
• Theme parks
• Reception / waiting rooms
• Airports, convention centers, hotels
• Business music systems
• Boardrooms & offices
• Cruise ships
• Retail outlets
• Houses of worship
6483 0646 05/04
FEATURES
• 6.5” (165mm) point source Dual Concentric™
driver
• 90˚ controlled conical dispersion for optimum
coverage and forward gain
• Weatherproof to IP33CS in EN60529
• Low insertion loss 30 Watt line transformer -
for a more powerful and dynamic performance
(i6T AW)
• Multi tap switch on input panel (i6T AW)
• Wide, constant directivity dispersion
• High sensitivity
• Magnetic cooling HF
• Yoke & Omni Mount™ mounting options
for quick and easy installation
• Five year loudspeaker warranty
ARCHITECTURAL SPECIFICATIONS
The All Weather loudspeaker shall consist of a 165mm (6.5”)
full range single point source, constant directivity Dual Concentric™
transducer. The transducer shall be mounted into a vented,
moulded enclosure weatherproof to IP33CS in EN60529.
The loudspeaker shall be used in 70 or 100 Volt distributed
audio systems utilising a high performance transformer with 30,
15, 7.5, 3.75* Watt taps available respectively. An easily accessible
selector switch shall be available on the back panel for selecting
settings.
Performance of the loudspeaker shall meet or exceed the following
criteria; Frequency response 1 metre on axis with swept sine
wave shall be 70Hz - 20kHz +/- 3dB, sensitivity shall be at least
90dB (anechoic) for 2.83 Volts @ 1 metre with mininal loss
accounted for. The dispersion of the loudspeaker shall be 90˚
conical.
The driver impedance and maximum power handling (without
transformer) shall be 8Ω and 180 Watts respectively. The system
shall be designed for use in all weather applications. The enclosure
shall be an optimally tuned, vented enclosure, utilising a yoke
mount, and shall not exceed the following
dimensions: 344 x 250 x 225mm or 13 x 9 x 8 “
(HxWxD).
This loudspeaker system shall be the Tannoy...i6 AW.
*70 volt version only
i6 AW
i6 AW

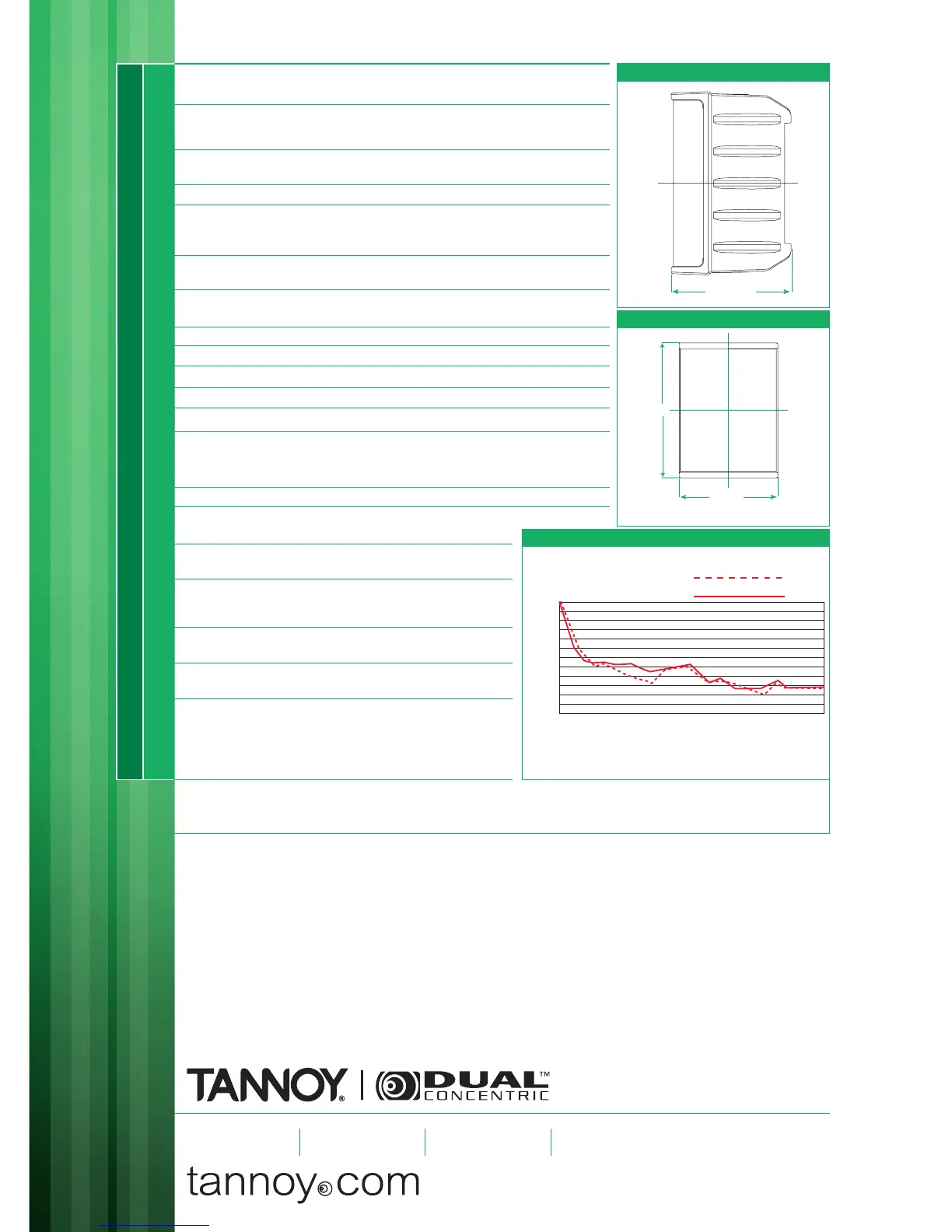

TECHNICAL SPECIFICATIONS
Tannoy United Kingdom T: +44 (0) 1236 420199 F: +44 (0) 1236 428230 E: enquiries@tannoy.com
Tannoy North America T: (519) 745 1158 F: (519) 745 2364 E: inquiries@tannoyna.com
Average
Programme
Peak
THP 30 Transformer
Low Impedance
See Beamwidth Plot
SYSTEM
System Type
Frequency Response
(1)
Recommended Amplifier Power
Power Handling (2)
Sensitivity 2.83 Volts
@ 1 metre (3)
Maximum SPL
Wattage Tap Selections
Impedance
Crossover Frequency
Dispersion
Driver Complement
Anechoic
Half Space
NOTES: (1) Average over stated bandwidth. Measured at 1 metre on axis. (2) Long term power handling capacity as defined in EIA standard RS - 426A.
(3) Unweighted pink noise input, measured at 1 metre in an anechoic chamber
A full range of measurements, performance data, and Ease™ Data can be downloaded from www.tannoy.com
Tannoy operates a policy of continuous research and development. The introduction of new materials or manufacturing methods will always equal or exceed the published specifications, which Tannoy
reserves the right to alter without prior notice. Please verify the latest specifications when dealing with critical applications.
7
/
8
5
/
8
7
/
8
SIDE ELEVATION
225mm
8 “
7
/
8
FRONT ELEVATION
250mm
9 “
7
/
8
344mm
13 “
5
/
8
MB 6
Omni Series
i6 AW
i6T AW
CONSTRUCTION
Enclosure
Finish
Connectors
Fittings
Mounting Options
Dimensions
Weight (each)
Shipping
Quantity
i6 AW
i6T AW
Pack Dimensions
11 litre polypropylene
Charcoal or White
1 x Speakon NL4MP
2 x 4mm binding posts
2 x M8 inserts
4 x M6 inserts
2 x yoke fixing points
20.0 Series Omni Mount™
bracket
344 x 250 x 225mm
(13 x 9 x 8 “)
5.5kg (12lbs 1oz)
6kg (13lbs 14oz)
2
13kg (28lbs 10oz)
15kg (33lbs)
502 x 400 x 302mm
(19 x15 x 11 “)
5
/
8
7
/
8
7
/
8
3
/
4
3
/
4
7
/
8
BEAMWIDTH PLOT
Beamwidth vs Frequency
Vertical Beamwidth (1/3 Octave)
Horizontal Beamwidth (1/3 Octave)
Frequency (Hz)
Degrees
360
330
270
240
210
180
120
90
60
30
0
250 315 400 500 630 800
1000 1250 1600 2000 3000 3150 4000 5000 6300 8000
10000
150
+/- 3dB
-10dB
