Target BK5SHLFXEB - Step 2: Connecting Shelf Components

8

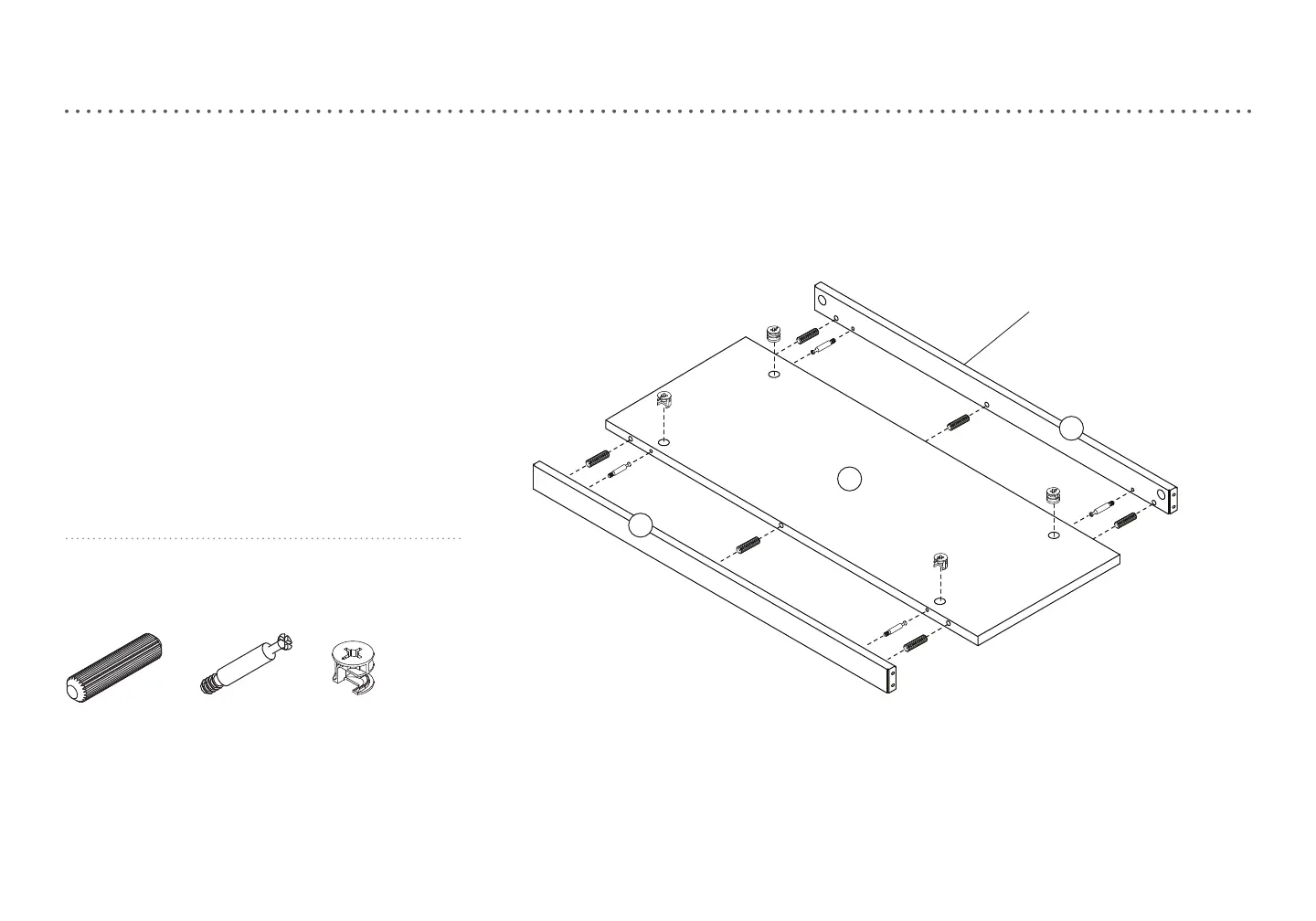

1. Carefully tap small wooden dowels into place. Leave 1/2’’ of the dowels sticking out.
2. Screw-In cam bolts must be screwed down ush with wood panel.
3. Refer to page 6 for instructions on how to use the cam lock system.
step 2.
(H1) x 6
wooden dowel
(H2) x 4
cam bolt
(H3) x 4
cam
R
T
U
nished edge
