Target Threshold 009050409 - Page 16

step 10:
16
(Part P)×16
M6*55mm screw
Do not completely tighten screws until all screws are in place.
(Part R)×1
allen wrench

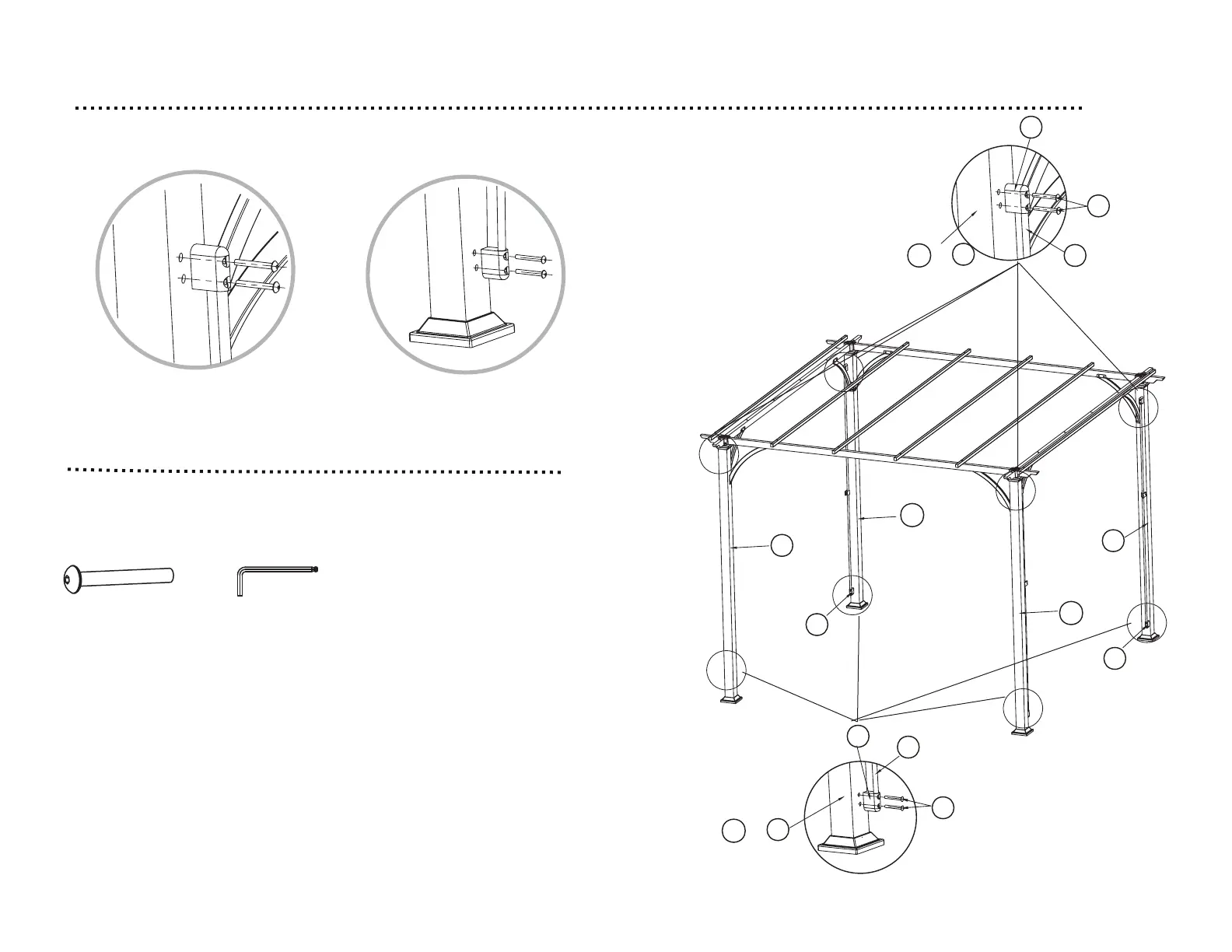

1. Attach the rail bars (D) and the suo tube connectors (M) to
the post leg 1 & 2 (A1 & A2), secure with M6*55mm screws (P)
using the allen wrench (R).
1.
2.
A1
A2
&
A1
A2
&
A1
A1
A2
A2
M
M
M
M
D
D
P
P
