Target Threshold 009050409 - Page 18

18
A1
A1
A2
A2
C
K
K
K
K
K
F
F
E
E
L
N
J
Q
A1
A2
&

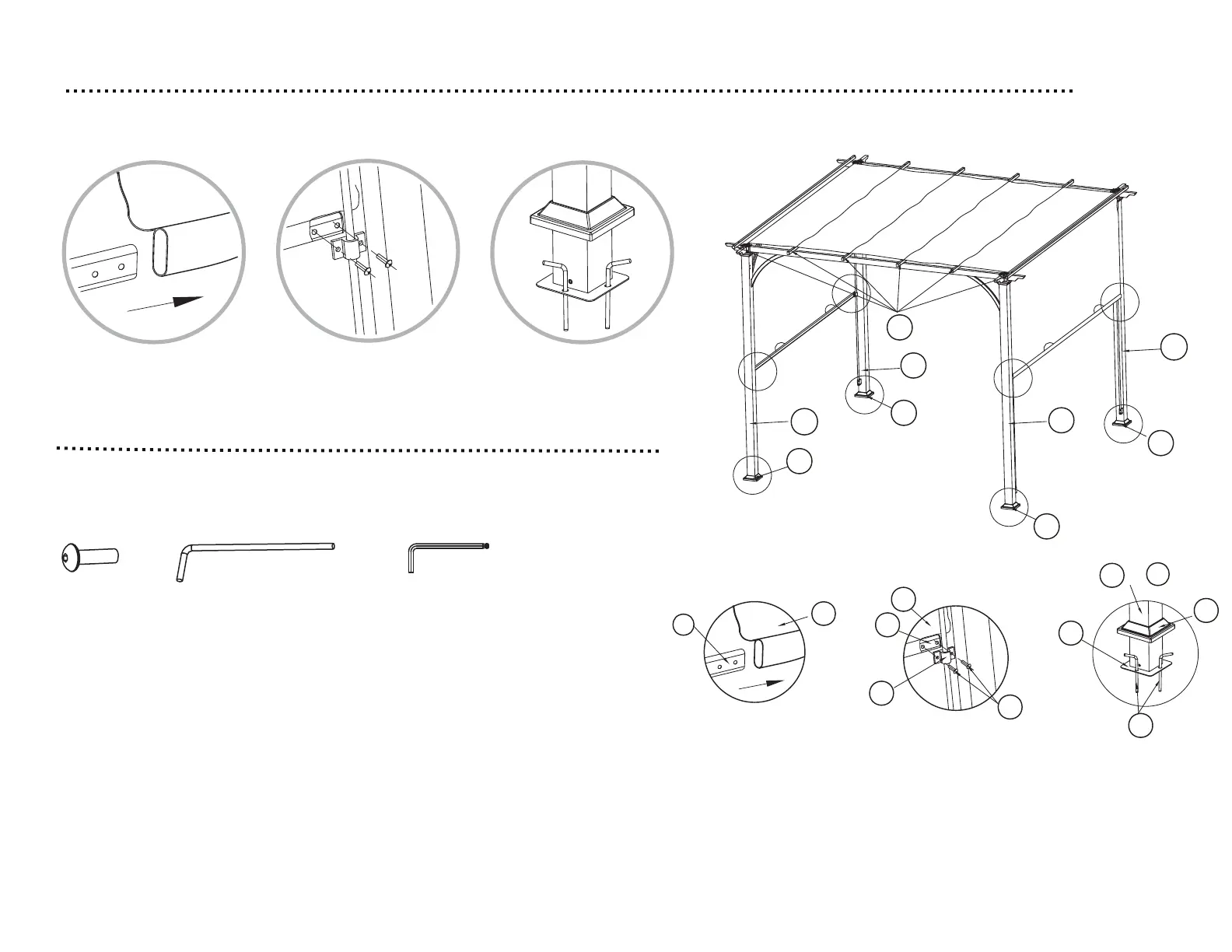

step 12:
(Part N)×8
M6*15 screw
(Part Q)×16
(Part R)×2
ground spikes allen wrench
1. Insert the shade rod (E) into the poket on the 2 side of sling cover (F), the scrw
holes should faced to the inside of pergola.
2. Align the screw holes of shade rod (E) and tube connectors (L), then secure with
M6*15 mm screws (N) using the allen srench (R).
3. Lift up the post base plates (K), insert the ground spikes (Q) through the post
base (J) and into the ground.
Do not completely tighten screws until all screws are in place.
1.
2. 3.
