Tatung TME50 User Manual

6
Mounting and Connecting
G
B R
W
R

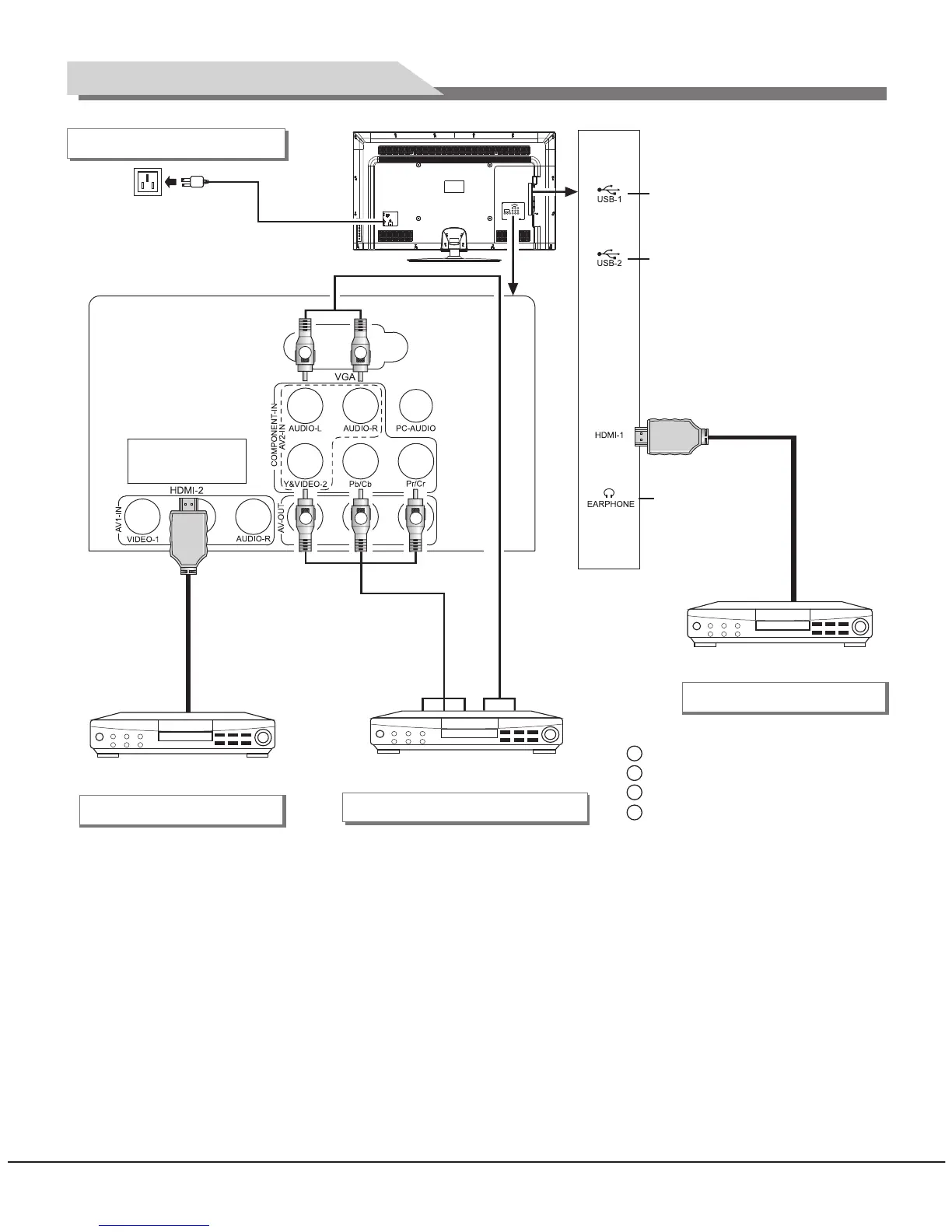

Connecting power supply
To power socket
(100-240VAC 60/50Hz)
Power cord
Earphone port
USB 2 interface
USB 1 interface
HDMI signal cable
HDMI signal cable
Audio cable
YPbPr cable
Connect t
output interface
o the device with
YPbPr/YCbCr
Component input connection
Connect to the AV device
with HDMI interface
HDMI2 input connection
G Green (Y signal cable)
B Blue (Pb/Cb signal cable)
W White(AUDIO-L signal cable)
R Red (AUDIO-R and Pr/Cr signal cables)
Remark:
1. The VIDEO-2 and component Y signal of the device share same input interface. AV2 and component audio
share same input interface.
2. If an earphone is inserted, the speaker of the set turns off automatically.Monitor
Connect to the AV device
with HDMI interface
HDMI1 input connection
