V
IDEO DEVICE
(ex. DVD Player or Set-top Box…)
* How do I connect a Video device via HDCP - HDCP ?
This can be done only if there is the HDCP ( DVI ) Output connector on the external
device.

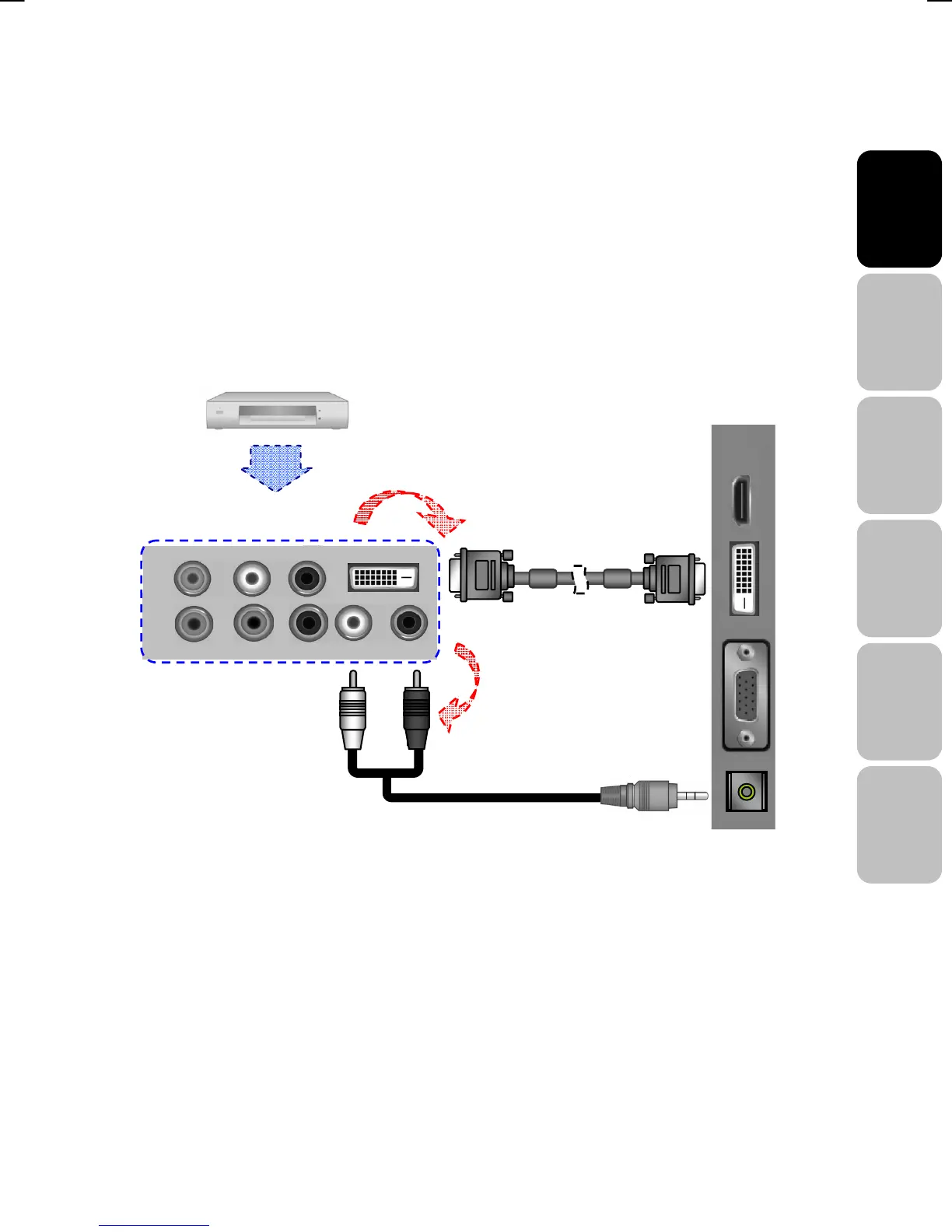

1. Connect a HDCP or DVI cable between the DVI connector on the TV and the
HDCP / DVI connector on the DVD player/ Set-top box.
2. Connect an audio cable between the PC AUDIO IN jack on the TV and
AUDIO OUT jack on the DVD player/ Set-top box.
HDMI
D-SUB
AUDIO
IN
VIDEO L R DVI / HDCP
1
2
Y Pb Pr L R
DVI
HDCP to HDCP Cable
or
DVI to DVI Cable
