Tavool LX7 - Product Overview; LCD Display Instruction

LASER RANGEFINDER
(LX7)
WELCOME
Thanks for choosing TAVOOL laser rangefinder to
help your jobs. This user manual will provide you
with valuable information necessary for the
proper care and maintenance of your new laser
rangefinder
PLEASE READ ALL OF THE INSTRUCTIONS BEFORE
USING THE LINE LASER
● SAFETY AND ACCESSORIES
● SPECIFICATIONS
● PRODUCT DETAILS AND LCD DISPLAY INSTRUCTION
● OPERATING
● COMMON QUESTIONS AND ANSWERS
● MAINTENANCE WARRANTY
● WARRANTY
SAFETY
• Do not look directly at the laser beam when using the product.
• Do not aim from the laser holes or look at the optical system
while pressing the power " " button to avoid damage to the
eyes.
ST A N D A RD AC C E S S O R I ES
• Range finder (1 piece)
• USB to Type C charging cable (1 piece)
• Manual (1 piece)
• Carrying bag (1 piece)
• Cleaning cloth (1 piece)
• Desiccant (1 piece)
• Hand rope (1 piece)
• Packing box (1 piece)
SPECIFICATION
PRODUCT OVERVIEW
LC D DI S P L A Y IN S T RU C T IO N
CUSTOMER SERVICE: service@tavool.com Any problem, question
or concern, please feel free to contact us via email, we always stand
behind our products to offer proper solutions and won’t let you suffer
any loss.
- 1 - - 2 -
- 3 -
- 4 -

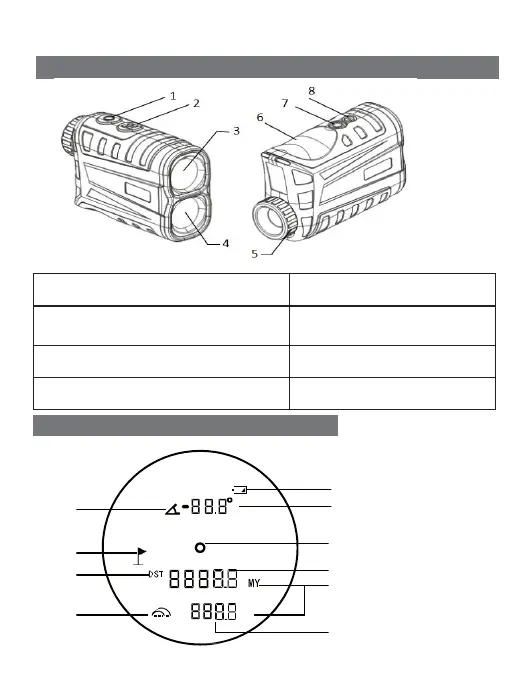

1.Power button
2.MODE/UNITS button
3.Objective/laser
emitter
4.Laser receiver
5.Eyepiece focusing
6.Battery compartment
7. Thread connector（1/4’）
8. Battery cover
Mode
LX7
Laser type
905nm
Measuring range of distance
5-700m
Resolution
0.1M
Measuring range of angle
±60°
Magnification
6X
Eyepiece diameter
16mm
Objective diameter
25mm
Range measurement precision
About ±1m/±0.5%(
Take the maximum
value)
Automatic shutdown time
12s
Angle measurement precision
About ±1 °
Net weight
174g
Dimensions
104*70*37mm
Power
750mAh lithium battery
Charging cable
Usb to type-c
Operating temperatures
-10°C-40°C
2
3
4
7
8
10
1
5
6
9
