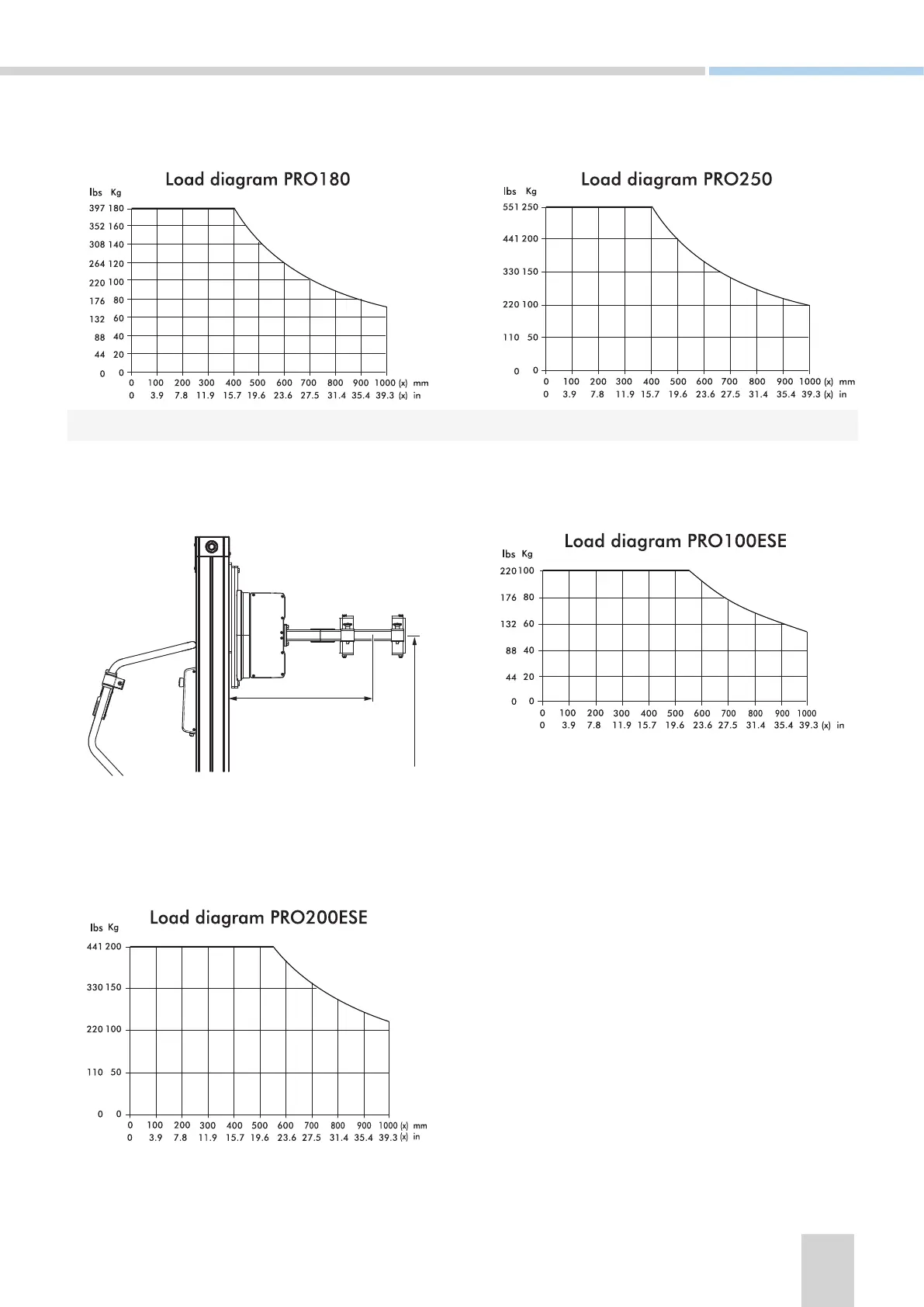

Load diagram PRO180 Load diagram PRO250
Load diagram PRO100ESE
Load diagram PRO200ESE
Illustration of x and y-distances
Valid for y-distances between 0 - 2195mm (0 - 86.4in).
Valid for y-distances between 0 - 2540mm (0 - 100in). Valid for y-distances between 0 - 2540mm (0 - 100in).
Valid for y-distances between 0 - 2222mm (0 - 87.4in).
PRO100ESE and PRO200ESE
X
Y
(x) mm
