Introduction
Model C009
110506
Important to the Operator

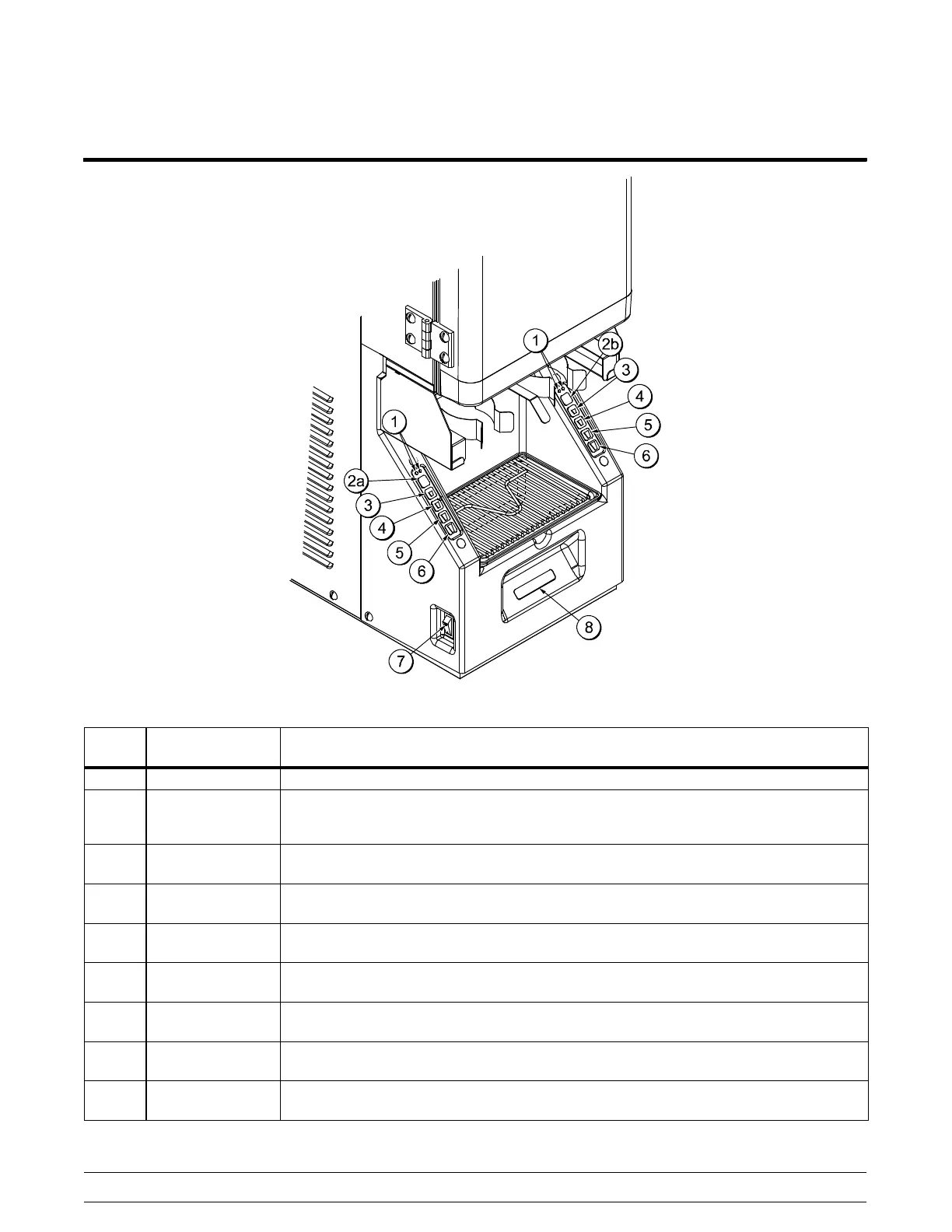

Figure 2
ITEM DESCRIPTION FUNCTION
1 Indicators-LED Lights blink and change color to show operating conditions.
2a Key-MENU
“Hotkey”
The MENU key on the left side of the dispenser is pressed to enter the product
programming function. Press and hold the key until the screen displays “Hotkey”
and follow the procedures starting on page 16 to make product changes.
2b Key-MENU The MENU key on the right side of the dispenser is pressed to return the dispense
keys to their normal operation after competion of product programming changes.
3 Key-Dispense-
Small
Press to dispense 12 oz. of product.
4 Key-Dispense-
Medium
Press to dispense 16 oz. of product.
5 Key-Dispense-
Large
Press to dispense 22 oz. of product.
6 Key-Dispense-
Extra Large
Press to dispense 32 oz. of product.
7 Power Switch Main electrical control switch. Place the switch in the ON position to operate the
dispenser.
8 Display-Flavor Displays product information and fault descriptions: selected flavor, mix out
condition, and/or no bag of concentrate.
