Model C009
Controls

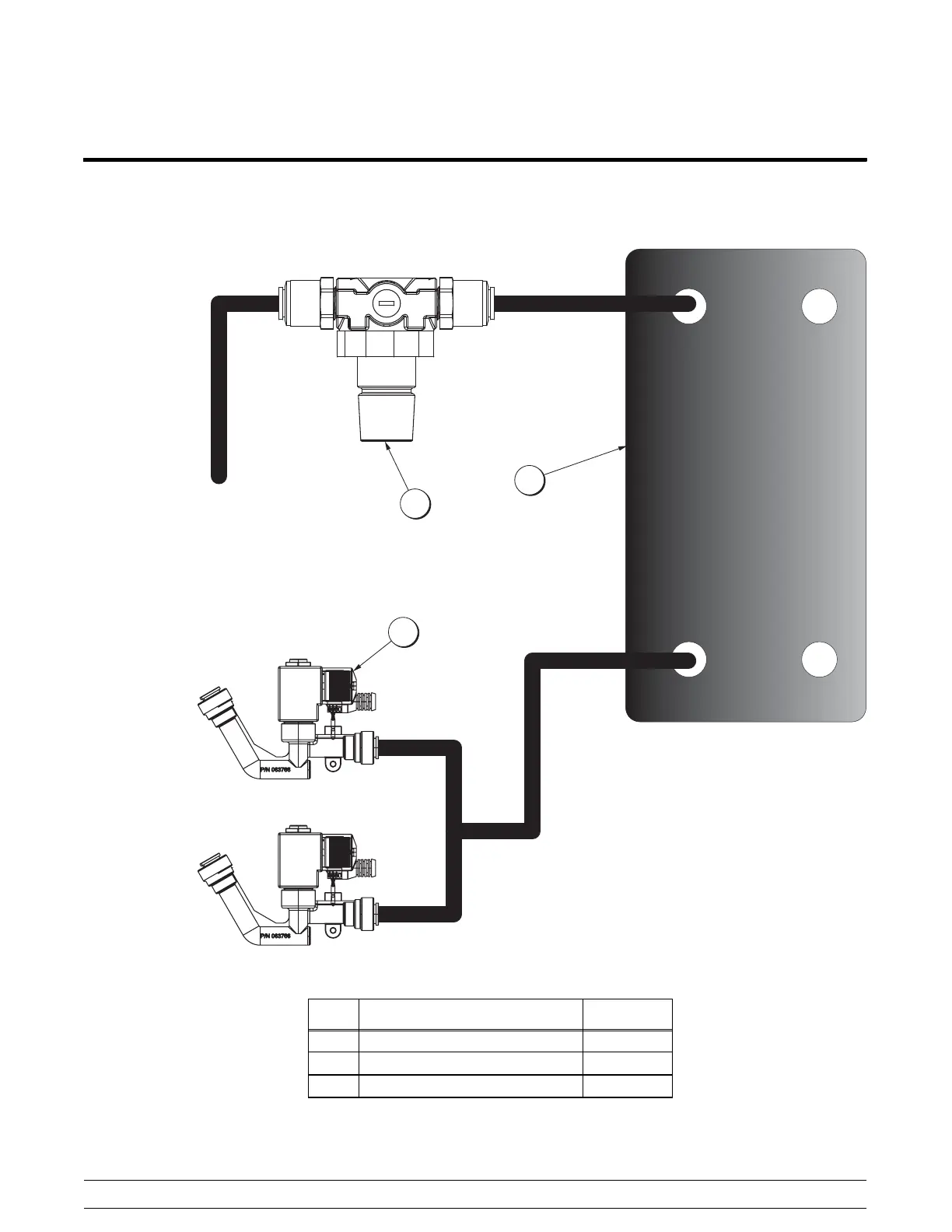

Water Flow System
CHILLER
HO
IN
2
Flowmeter
Assembly
Water Regulator
55 psi Dynamic
Boosted Chilled
Water Line from Store
2 GPM min. @ 45 F (7.2 C)
40-100 PSI (276-690 Kpa)
Dynamic Pressure
°°
HO
OUT
2
Flowmeter
Assembly
1
3
2
Figure 14
ITEM DESCRIPTION PART NO.
1 REGULATOR A.-WATER 063424
2 CHILLER A.-INSULATED X63414
3 FLOWMETER A.-W/VALVE 063766
