TCE Group S.r.l. Installation, use and maintenance manual – Serie NEOS
23

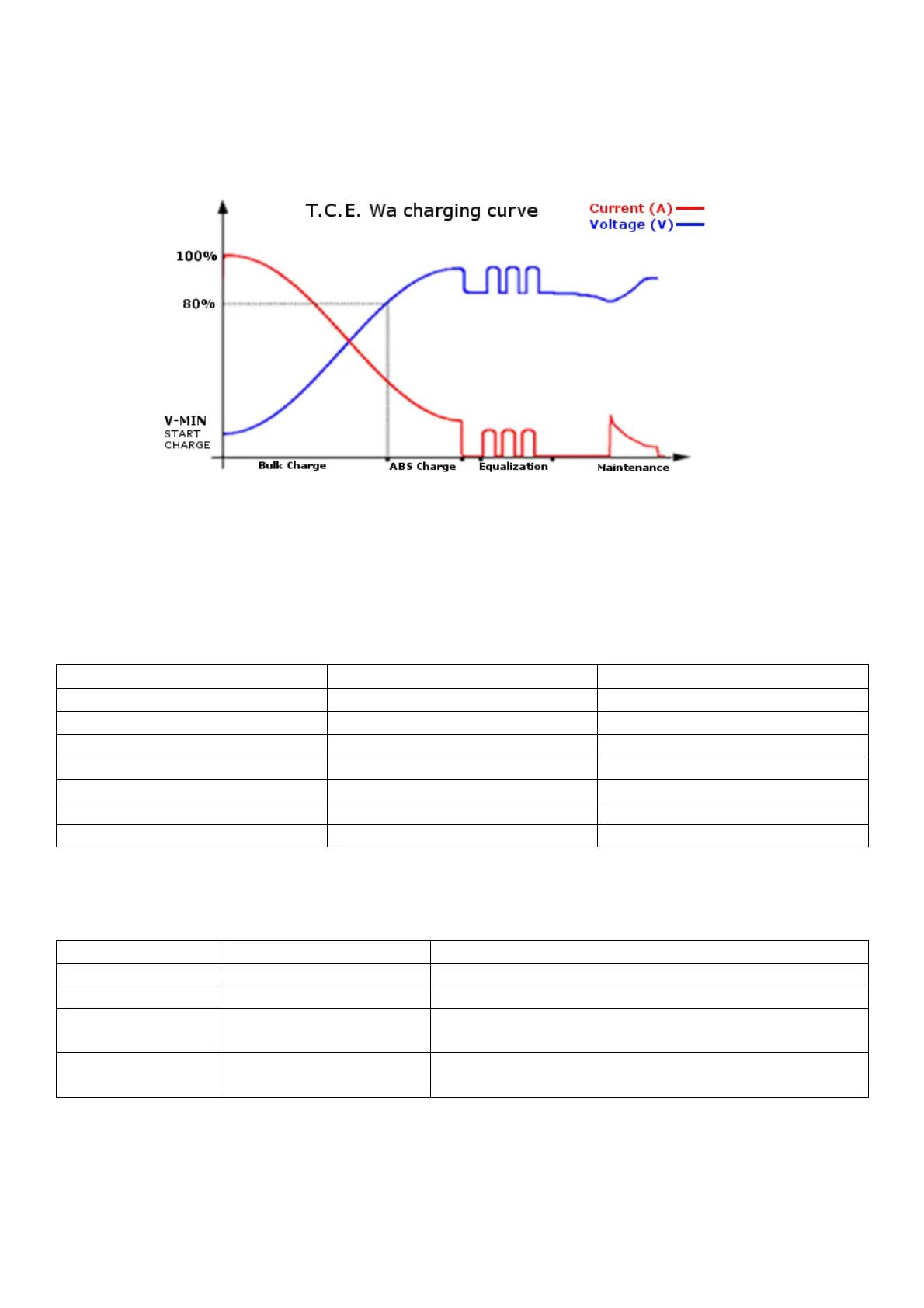

Charging curves
The standard curve of the EVO/SE Series chargers is the WA Curve.
The WA charging curve is a curve that, based on the rising voltage of the battery, has a decreasing current.
Final charging voltage
The final voltage per cell is 2.65 V/cell.
LED Visualizations
LED COLOR
DESCRIPTION
BATTERY CHARGER STATUS
RED still – left side
Line
Battery charger connected to mains
RED still – right side
Battery between 0% and 80%
Battery connected
YELLOW still
Battery between 80% and 100%
Final charging phase
GREEN still
Battery 100%
Waiting for equalization cycle
BLUE still
Equalization phase
Performing equalization cycle
BLUE flashing
End of equalization charge
Completion of the total charging cycle
RED Flashing
Anomaly
Check anomaly visualization on display
Troubleshooting
ERROR CODE
DESCRIPTION
PROBLEM SOLVING
T +
Internal overheat
Wait for cool off and then try another charging cycle
V +
Battery voltage too high
Clean DC connection
C +
Charging currrent too high
Check the correct tappings on the power transformer in relation
to the mains voltage
Time Exceeded
time limit exceeded
Make sure that the size of the charger is adequate for the battery
size
