ASSEMBLY INSTRUCTIONS
In order to prevent removal of the post from the base use a hammer and flat end punch to hammer the
jack's tab in toward to post but not touching the post. Same stands are equipped with a bolt instead of the
tab. In this case the bolt can be threaded in toward the post until the bolt bottoms out.

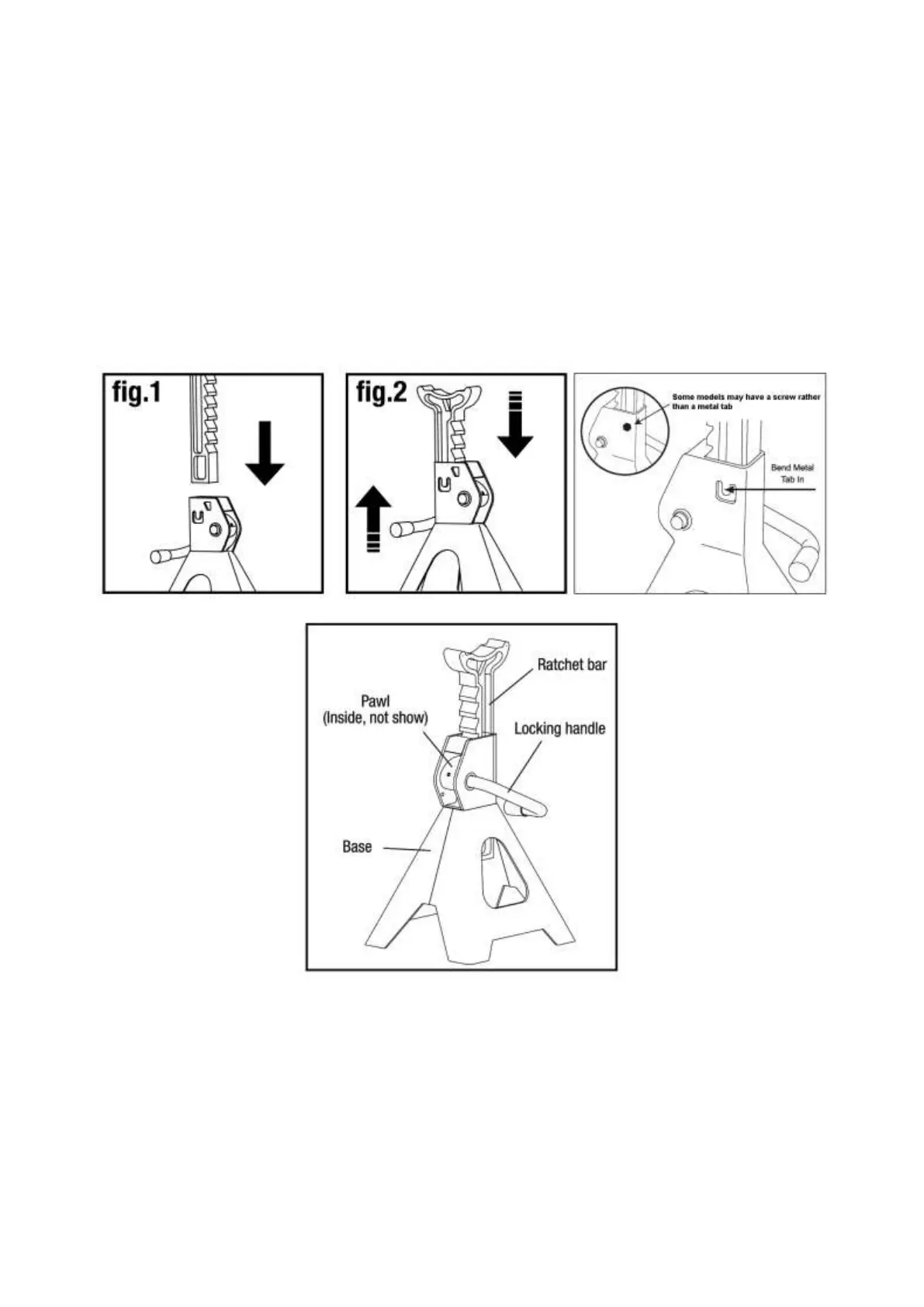

1. Install ratchet bar into frame (fig.1) with ratchet portion of bar aligned with locking pawl (stopper).
2. Move the ratchet bar to its lowest position by raising the locking handle, thereby releasing the
stopper, and guiding the bar downward (fig. 2).
3. Bend metal tab in (Fig. 3) using a hammer and punch. This will help prevent inadvertent separation
of the ratchet bar from base frame.
