INSTALLATION
KEYBOARD
-5-

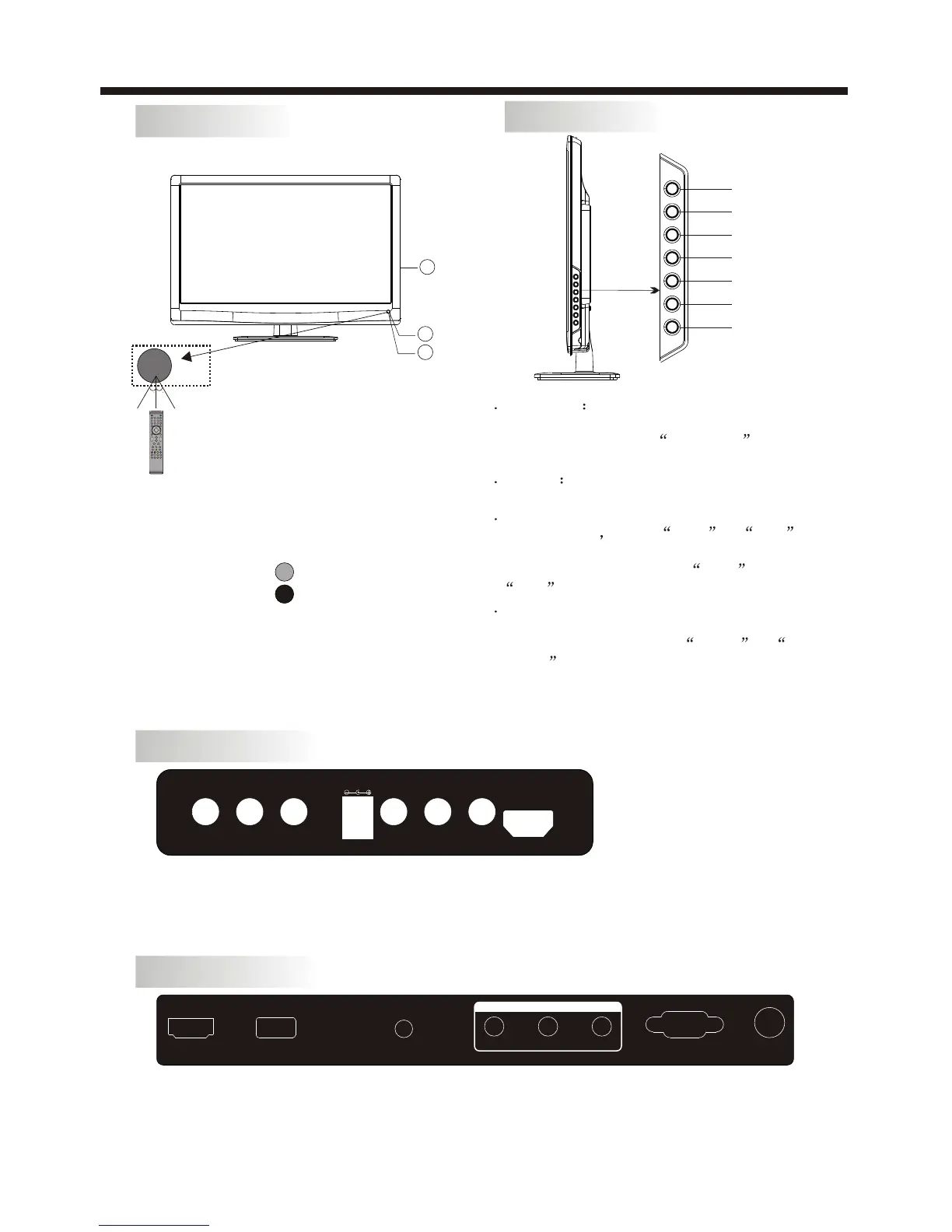

Front panel
1: Remote control sensor.
2: Indicator LED:
BLUE POWER ON.
RED STAND BY.
3: Key board
REAR AV Connections
All the terminals are(from left to right):
AV, AUDIO INPUT, POWER SOCKET, YPbPr INPUT, HDMI2.
Note: 1. AV and YPbPr share one audio channel.
2. When the HDMI2 port receives a DVI signal, the audio signal is received from the
YPbPr/AV Audio channel.
REAR AV Connections(SIDE)
All the terminals are(from left to right):
HDMI1, USB, PC AUDIO, AV OUTPUT, VGA, Reference
Note: When HDMI1 receives aDVI signal ,the audio signal is received from the PC
Audio channel.
30 30
1
3
2
1 SOURCE
Display the input source menu.In
MENU mode,press SOURCE to
confirm the selected item.
CH+ or
CH- to select items .
press VOL+ or
VOL- to
STANDBY
Press this button to turn the unit ON from
STANDBY mode.
Press it again to turn the set back to
STANDBY.
2 MENU
Display main MENU.
3 CH+/CH-
In TV mode press CH+ or CH-
to change the channel up and down.
In MENU mode, press
4 VOL+/VOL-
Adjust sound level.
In MENU mode,
adjust the item that you selected.
5.
SOURCE
MENU
CH+
CH-
VOL+
VOL-
ST ANDBY
USB PC AUDIO
VGA RF
HDMI1
AV
L
R
AV OUTPUT
POWER
AV L R Y Pb Pr
HDMI2
