TCL L28B2500-MS306D-LA User Manual

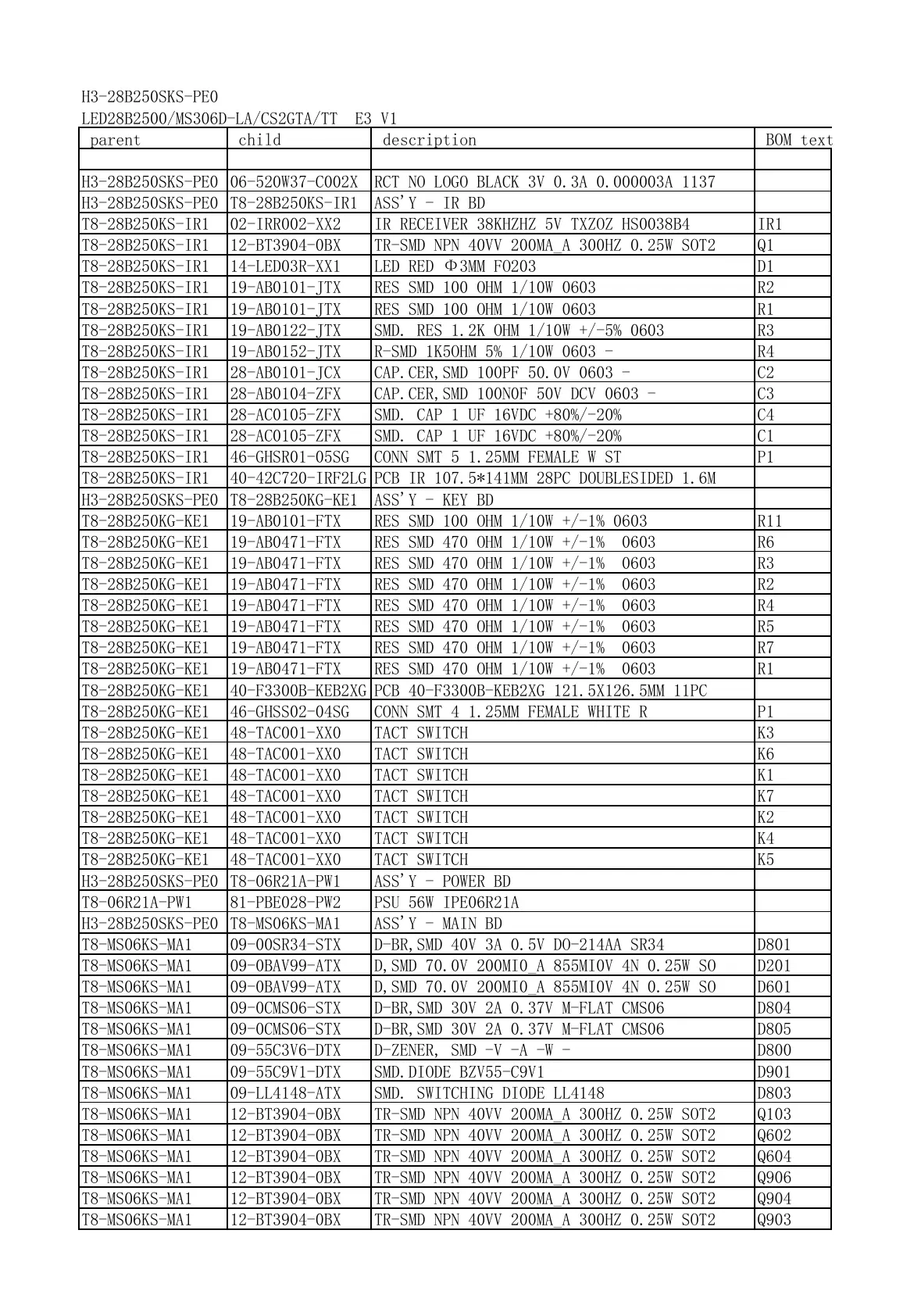

H3-28B250SKS-PE0
LED28B2500/MS306D-LA/CS2GTA/TT E3 V1
parent child description BOM tex
t
H3-28B250SKS-PE0 06-520W37-C002X RCT NO LOGO BLACK 3V 0.3A 0.000003A 1137
H3-28B250SKS-PE0 T8-28B250KS-IR1 ASS'Y - IR BD
T8-28B250KS-IR1 02-IRR002-XX2 IR RECEIVER 38KHZHZ 5V TXZOZ HS0038B4 IR1
T8-28B250KS-IR1 12-BT3904-0BX TR-SMD NPN 40VV 200MA_A 300HZ 0.25W SOT2 Q1
T8-28B250KS-IR1 14-LED03R-XX1 LED RED Φ3MM FO203 D1
T8-28B250KS-IR1 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603 R2
T8-28B250KS-IR1 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603 R1
T8-28B250KS-IR1 19-AB0122-JTX SMD. RES 1.2K OHM 1/10W +/-5% 0603 R3
T8-28B250KS-IR1 19-AB0152-JTX R-SMD 1K5OHM 5% 1/10W 0603 - R4
T8-28B250KS-IR1 28-AB0101-JCX CAP.CER,SMD 100PF 50.0V 0603 - C2
T8-28B250KS-IR1 28-AB0104-ZFX CAP.CER,SMD 100N0F 50V DCV 0603 - C3
T8-28B250KS-IR1 28-AC0105-ZFX SMD. CAP 1 UF 16VDC +80%/-20% C4
T8-28B250KS-IR1 28-AC0105-ZFX SMD. CAP 1 UF 16VDC +80%/-20% C1
T8-28B250KS-IR1 46-GHSR01-05SG CONN SMT 5 1.25MM FEMALE W ST P1
T8-28B250KS-IR1 40-42C720-IRF2LG PCB IR 107.5*141MM 28PC DOUBLESIDED 1.6M
H3-28B250SKS-PE0 T8-28B250KG-KE1 ASS'Y - KEY BD
T8-28B250KG-KE1 19-AB0101-FTX RES SMD 100 OHM 1/10W +/-1% 0603 R11
T8-28B250KG-KE1 19-AB0471-FTX RES SMD 470 OHM 1/10W +/-1% 0603 R6
T8-28B250KG-KE1 19-AB0471-FTX RES SMD 470 OHM 1/10W +/-1% 0603 R3
T8-28B250KG-KE1 19-AB0471-FTX RES SMD 470 OHM 1/10W +/-1% 0603 R2
T8-28B250KG-KE1 19-AB0471-FTX RES SMD 470 OHM 1/10W +/-1% 0603 R4
T8-28B250KG-KE1 19-AB0471-FTX RES SMD 470 OHM 1/10W +/-1% 0603 R5
T8-28B250KG-KE1 19-AB0471-FTX RES SMD 470 OHM 1/10W +/-1% 0603 R7
T8-28B250KG-KE1 19-AB0471-FTX RES SMD 470 OHM 1/10W +/-1% 0603 R1
T8-28B250KG-KE1 40-F3300B-KEB2XG PCB 40-F3300B-KEB2XG 121.5X126.5MM 11PC
T8-28B250KG-KE1 46-GHSS02-04SG CONN SMT 4 1.25MM FEMALE WHITE R P1
T8-28B250KG-KE1 48-TAC001-XX0 TACT SWITCH K3
T8-28B250KG-KE1 48-TAC001-XX0 TACT SWITCH K6
T8-28B250KG-KE1 48-TAC001-XX0 TACT SWITCH K1
T8-28B250KG-KE1 48-TAC001-XX0 TACT SWITCH K7
T8-28B250KG-KE1 48-TAC001-XX0 TACT SWITCH K2
T8-28B250KG-KE1 48-TAC001-XX0 TACT SWITCH K4
T8-28B250KG-KE1 48-TAC001-XX0 TACT SWITCH K5
H3-28B250SKS-PE0 T8-06R21A-PW1 ASS'Y - POWER BD
T8-06R21A-PW1 81-PBE028-PW2 PSU 56W IPE06R21A
H3-28B250SKS-PE0 T8-MS06KS-MA1 ASS'Y - MAIN BD
T8-MS06KS-MA1 09-00SR34-STX D-BR,SMD 40V 3A 0.5V DO-214AA SR34 D801
T8-MS06KS-MA1 09-0BAV99-ATX D,SMD 70.0V 200MI0_A 855MI0V 4N 0.25W SO D201
T8-MS06KS-MA1 09-0BAV99-ATX D,SMD 70.0V 200MI0_A 855MI0V 4N 0.25W SO D601
T8-MS06KS-MA1 09-0CMS06-STX D-BR,SMD 30V 2A 0.37V M-FLAT CMS06 D804
T8-MS06KS-MA1 09-0CMS06-STX D-BR,SMD 30V 2A 0.37V M-FLAT CMS06 D805
T8-MS06KS-MA1 09-55C3V6-DTX D-ZENER, SMD -V -A -W - D800
T8-MS06KS-MA1 09-55C9V1-DTX SMD.DIODE BZV55-C9V1 D901
T8-MS06KS-MA1 09-LL4148-ATX SMD. SWITCHING DIODE LL4148 D803
T8-MS06KS-MA1 12-BT3904-0BX TR-SMD NPN 40VV 200MA_A 300HZ 0.25W SOT2 Q103
T8-MS06KS-MA1 12-BT3904-0BX TR-SMD NPN 40VV 200MA_A 300HZ 0.25W SOT2 Q602
T8-MS06KS-MA1 12-BT3904-0BX TR-SMD NPN 40VV 200MA_A 300HZ 0.25W SOT2 Q604
T8-MS06KS-MA1 12-BT3904-0BX TR-SMD NPN 40VV 200MA_A 300HZ 0.25W SOT2 Q906
T8-MS06KS-MA1 12-BT3904-0BX TR-SMD NPN 40VV 200MA_A 300HZ 0.25W SOT2 Q904
T8-MS06KS-MA1 12-BT3904-0BX TR-SMD NPN 40VV 200MA_A 300HZ 0.25W SOT2 Q903
