Factory Test & Alignment Specification For MS63F-LA Series (V0.10)
Page 9 of 18

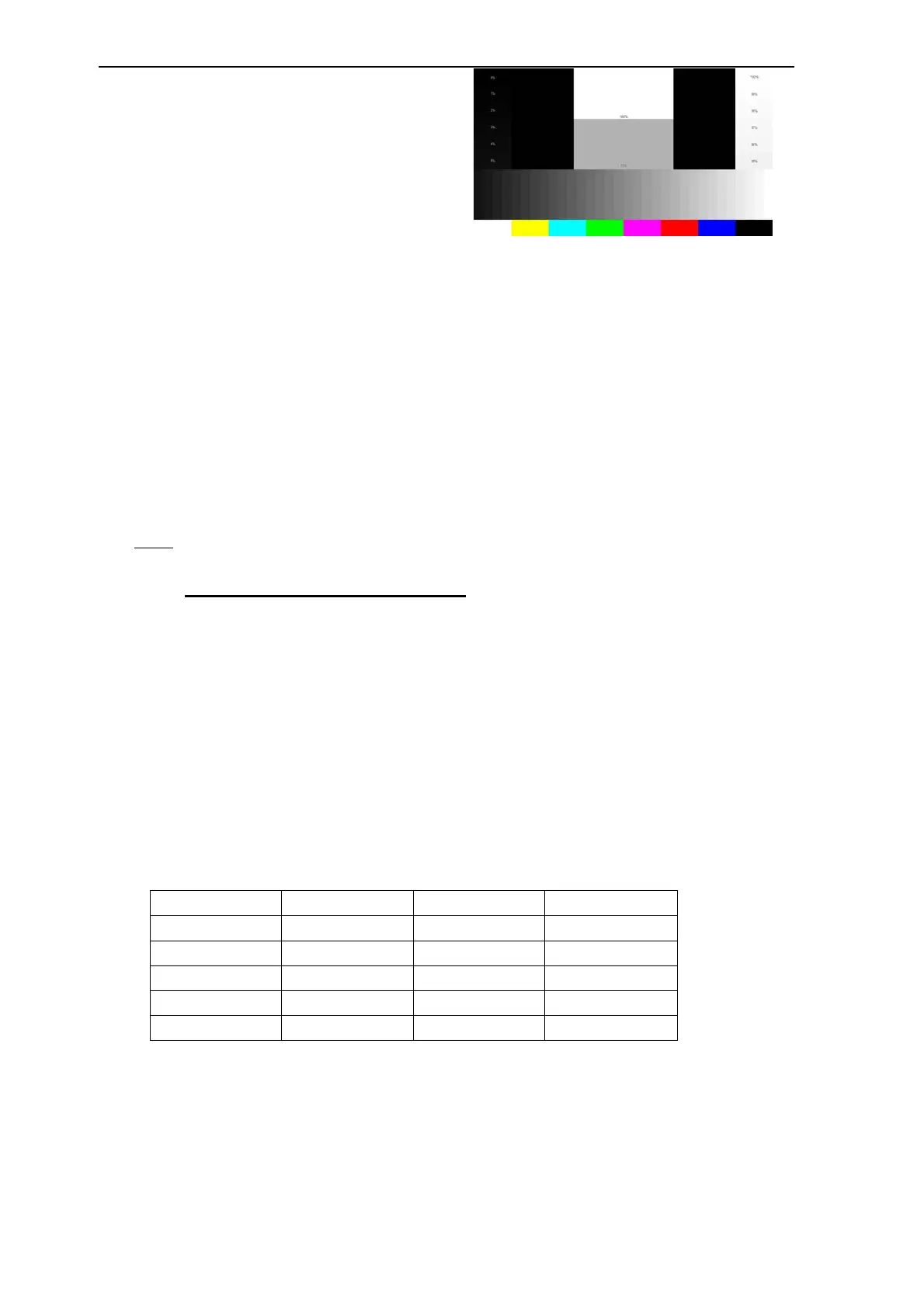

Make sure that Picture Preset is set to “VIVID” mode, “Contrast” bargraph is set to maximum
(100%) and “Active BackLight” is set to “Off”.
Ensure that TV is in
Factory mode to access to ”White Balance” adjustment submenu, then
scroll down to toggle off “Pic. Enhance” flag.
PC VGA, CMP YPrPb, RGB, CVBS_PAL Gain/Offset matrix offsets locations are relative to
HDMI/DTV.
CVBS_SECAM and CVBS_NTSC Gain/Offset matrix offsets locations are relative to
CVBS_PAL.
Warm and Cool Tone are relatives to Normal mode.
¾ “Gain” registers set need to be adjusted at 70IRE.
¾ “Offsets”
registers set can be adjusted at 30IRE, but it’s not recommended to keep them
defaulted.
Note:
All matrix offsets locations can be individually fine-tuned.
Targets and Tolerances for all inputs
The measured parameters should be mainly “x”, “y” coordinates.
The “Y” peak luminance measurement at 100IRE is depending on achievable panel
performance and less important than saturation on high light. If necessary, “Scaling Contrast”
register can be adjusted.
The “BlackLevel” measurement need to be within 1% ±2. If necessary, “Scaling Brightness”
register can be adjusted.
The White Balance alignment should be performed using a well calibrated and contact less
analyzer (ex: Minolta CA210 or CA310). The analyzer may not touch the screen surface, and
measurement must be performed in a dark environment keeping the probe(s) at 90+/-2° from the
panel center.
The result should fulfill TCL matching specification (Minolta CA310 reference with CH00):
MODEL COOL(x/y) NORMAL(x/y) WARM(x/y)
L32E5300 275/280 280/290 302/307
L42E5300F 270/280 282/297 302/307
L46E5300F 270/280 280/295 302/307
……
……
within below tolerances:
¾
for Alignment: ± 0.003
¾
for Measurement: ± 0.015
