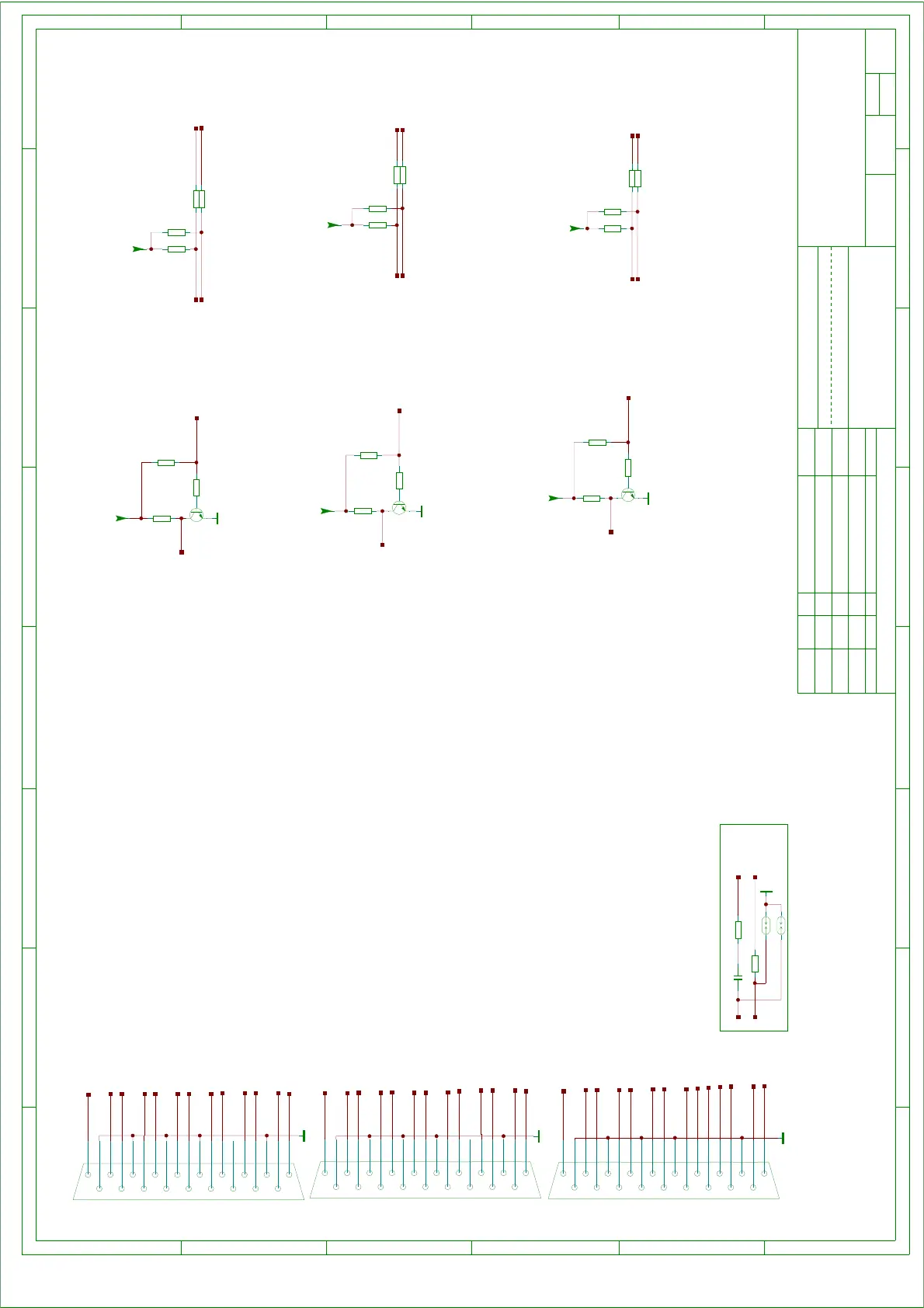

TCL L42E5300F

GND
GND
GND
GND
GND
GND
GND
...
.............
DD-MM DD-MM DD-MM DD-MM
...
...
... ...
... ... ...
...
...
4-14-2009_15:28
...........
...
...
...
...
...
DD-MM-YY
......
ADDRESS1
ADDRESS2
TELEPHONE
ADDRESS3
OF : PAGE:
ON: BY:
BY: ON:
CHECKED
DATE
Last saved :
DESCRIPTION Last modifNAME
A
321
F
E
D
C B
8765
5
4321
THIS DRAWING CANNOT BE COMMUNICATED TO UNAUTHORIZED PERSONS COPIED UNLES S PERMITTED IN WRITING
F
E
D
C B
A
4678
FORMAT DIN A2
Index-Lab
DESIGNATION
SBU :
TCLNO:
DRAWN
TCL
RX2+
GND1
RX2-
RX1+
GND2
RX1-
RX0+
GND3
RX0-
RXC+
GND4
RXC-
NC1
NC2
DDCCLK
DDCDA
GND5
VCC
HPD
RX2+
GND1
RX2-
RX1+
GND2
RX1-
RX0+
GND3
RX0-
RXC+
GND4
RXC-
NC1
NC2
DDCCLK
DDCDA
GND5
VCC
HPD
RX2+
GND1
RX2-
RX1+
GND2
RX1-
RX0+
GND3
RX0-
RXC+
GND4
RXC-
NC1
NC2
DDCCLK
DDCDA
GND5
VCC
HPD
HDMI3
HDMI2
CEC & ARC
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
P601
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
P602
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19
P600
HDMI3-HPD
HDMI3-RX2N
HDMI3_5V
HDMI3-DDC-SDA
HDMI3-CLKP
HDMI3-DDC-SCL
HDMI_ARC
CEC
HDMI3-CLKN
HDMI3-RX0N
HDMI3-RX0P
HDMI3-RX1N
HDMI3-RX1P
HDMI3-RX2P
HDMI2-HPD
HDMI2_5V
HDMI2-DDC-SDA
HDMI2-DDC-SCL
CEC
HDMI2-CLKN
HDMI2-CLKP
HDMI2-RX0N
HDMI2-RX0P
HDMI2-RX1N
HDMI2-RX1P
HDMI2-RX2N
HDMI2-RX2P
HDMI1-HPD
HDMI1_5V
CEC
HDMI1-DDC-SCL
HDMI1-DDC-SDA
HDMI1-CLKN
HDMI1-CLKP
HDMI1-RX1N
HDMI1-RX0N
HDMI1-RX0P
HDMI1-RX2P
HDMI1-RX1P
HDMI1-RX2N
F602
F601
C600
2U2
HDMI2-DDC-SCL
R632
200R
HDMI3_5V
R647
10K
R648
4K7
R631 0R
HDMI1_5V
HDMI3_5V
HDMI2_5V
HDMI1_5V
HDMI2_5V
B
C
E
Q602
BT3904
B
C
E
Q601
BT3904
B
C
E
Q600
BT3904
R653
1K
R652
1K
R651
1K
R650
4K7
R649
4K7
R646
10K
R645
10K
R644
10K
R643
10K
R642
10K
R641
10K
R64022R
R63922R
R63822R
R63722R
R63622R
R63522R
R634
10K
R633
10K
HDMI3-SDA
HDMI3-SCL
HDMI2-SDA
HDMI2-SCL
HDMI1-SDA
HDMI1-SCL
HDMI1-DDC-SCL
HDMI3-DDC-SDA
HDMI1-DDC-SDA
HDMI2-DDC-SDA
HDMI-ARC
HDMI-CEC
HDMI2-HPD
HDMI3-HPD
HDMI1-HPD
HDMI3-HPDIN
HDMI1-HPDIN
HDMI2-HPDIN
HDMI3-DDC-SCL
CEC
HDMI_ARC
