It is necessary to erase Flash before writing code file for reading in correctly EEPROM data.

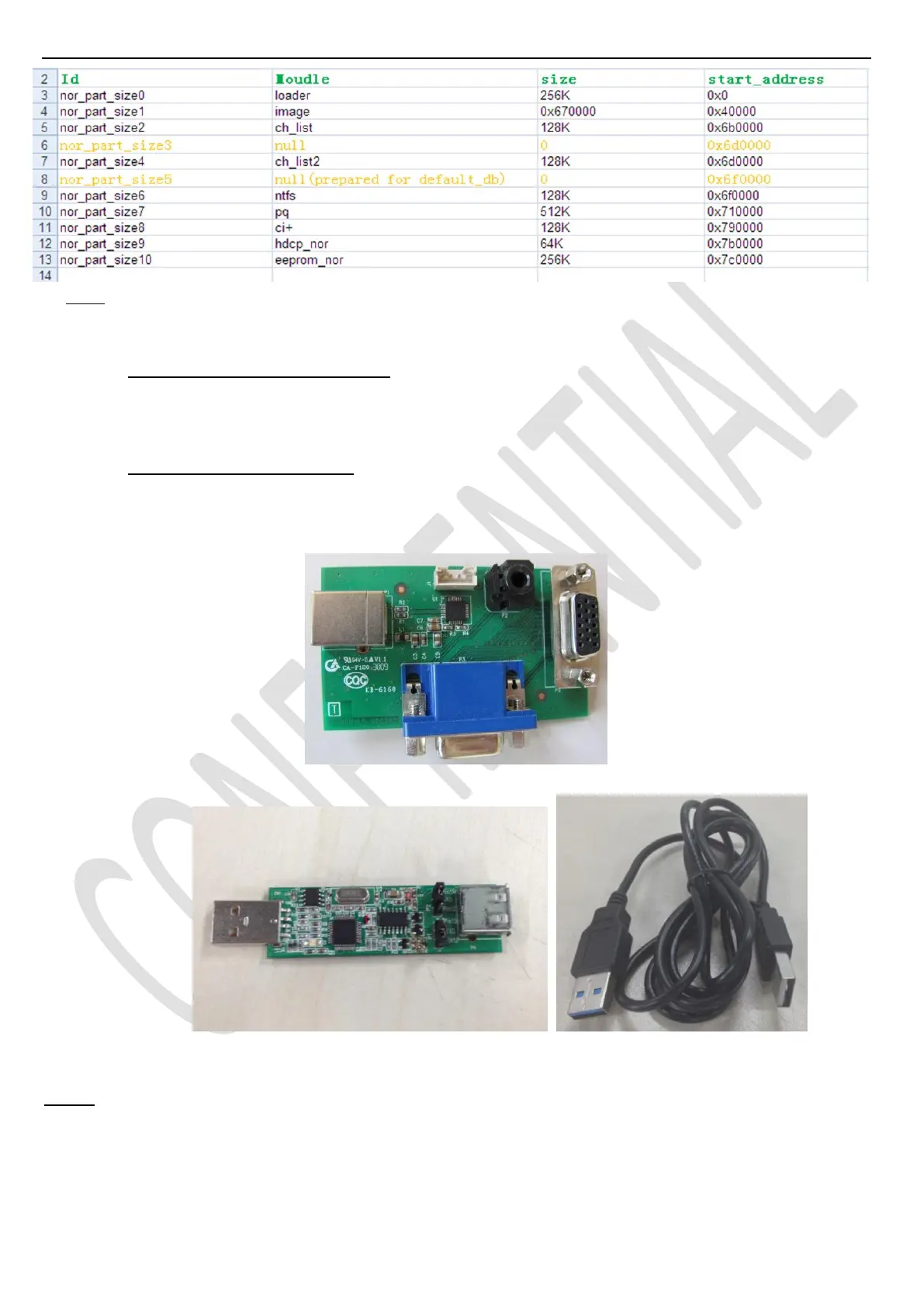

Manufacturing Connectors Pinout
VGA / P1000 Pin4:RXD Pin11:TXD
USB3.0/P303 Pin9:RXD Pin8 :TXD
USB to UART Bridge Adapter (Silicon Labs CP210 chipset series)
To communicate with TV product for debugging, adjustment and so… it’s required suitable 0..5V Serial Interface
like following snapshot (further details are described on below sections):
VGA as Serial Port
USB as Serial Port
INFO:
All tests and measurements mentioned hereafter have to be carried out at a normal mains voltage (220 ~ 240
VAC)
All voltages have to be measured with respect to ground, unless otherwise stated
All final tests have to be done on a complete set including LCD panel in a room with temperature of 25+/-7°C
