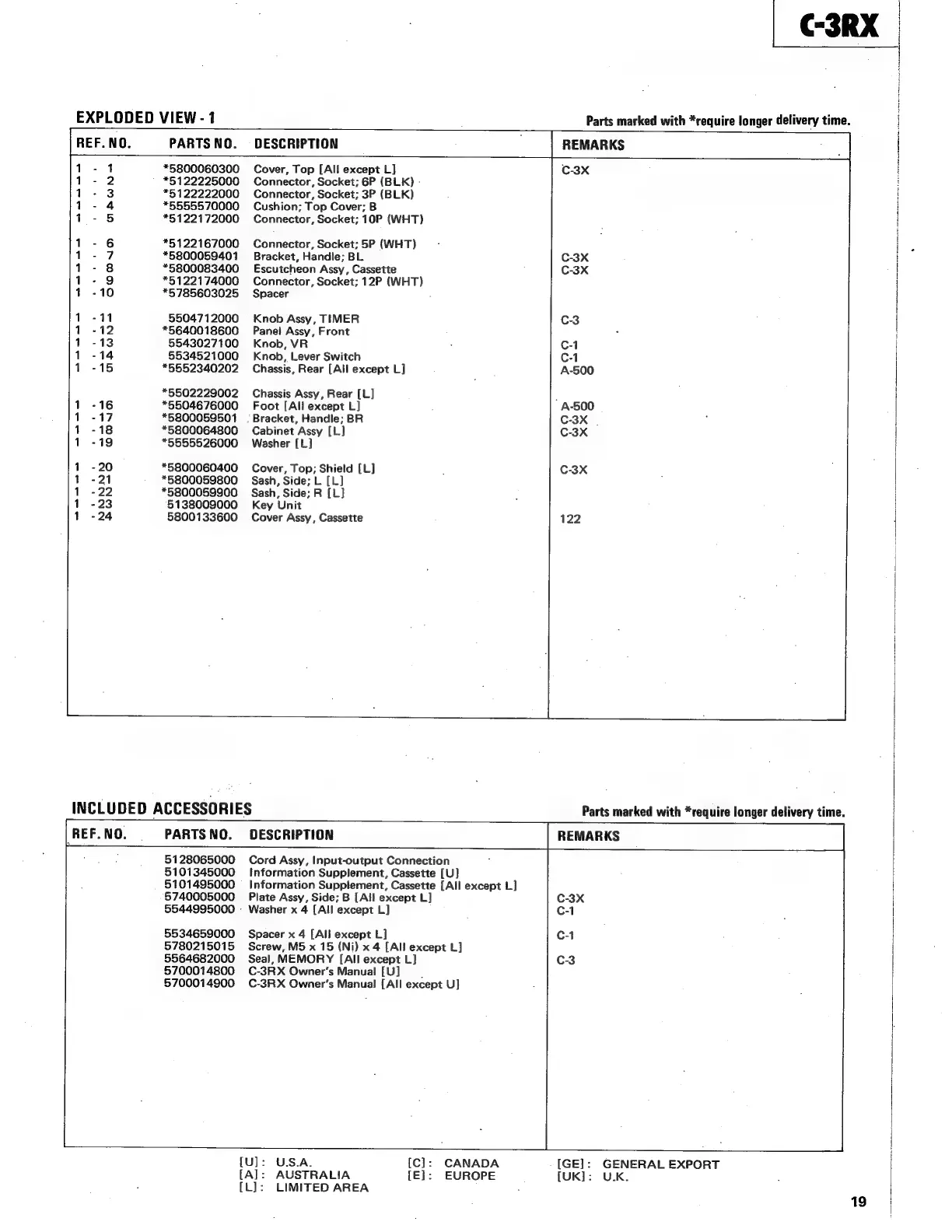

EXPLODED VIEW - 1
C-3RX
Parts marked with *require longer delivery time.
REF. NO. PARTS NO. DESCRIPTION REMARKS
1-1 *5800060300 Cover, Top [All except L] C-3X
1-2 *5122225000 Connector, Socket; 6P (BLK) -
1 - 3 *5122222000 Connector, Socket; 3P (BLK)
1-4 *5555570000 Cushion; Top Cover; B
1-5 *5122172000 Connector, Socket; 10P (WHT)
1-6 *5122167000 Connector, Socket; 5P (WHT)
1-7 *5800059401 = Bracket, Handle; BL C-3X
1-8 *5800083400 Escutcheon Assy, Cassette C-3X
1-9 *5122174000 Connector, Socket; 12P (WHT)
1 -10 *5785603025 Spacer 4
1-11 5504712000 Knob Assy, TIMER C-3
1-12 *5640018600 Panel Assy, Front
1 -13 5543027100 Knob, VR : C-1
1 -14 5534521000 Knob, Lever Switch C-1
1 -15 *5552340202 Chassis, Rear [Ail except L] A-500
*5502229002 Chassis Assy, Rear [L]
1 -16 *5504676000_ Foot [All except L] ; A-500
1 -17 *5800059501_ ~— Bracket, Handle; BR C-3X |
1 -18 *5800064800 Cabinet Assy [L] C-3X
1-19 *5555526000 Washer [L]
1 -20 *6800060400 Cover, Top; Shield [L] : C-3X
1 -21 *5800059800 Sash, Side; L [L]
1 -22 *5800059900 Sash, Side; R (L]
1 -23 5138009000 Key Unit
1 -24 5800133600 Cover Assy, Cassette 122
INCLUDED ACCESSORIES
REF. NO.
PARTS NO. DESCRIPTION REMARKS
5128065000 Cord Assy, Input-output Connection
5101345000 Information Supplement, Cassette [U]
5101495000 = Information Supplement, Cassette [All except L]
5740005000 Plate Assy, Side; B [All except L] C-3X
5544995000 - Washer x 4 [All except L] C-1
5534659000 Spacer x 4 [All except L] C-1
5780215015 Screw, M5 x 15 (Ni) x 4 [All except L]
5564682000 Seal, MEMORY [All except L] C-3
5700014800 C-3RX Owner's Manual [U] ;
5700014900 C-3RX Owner's Manual [All except U]
{[U]: U.S.A. {C]: CANADA [GE]: GENERAL EXPORT
[A]: AUSTRALIA {[E]: EUROPE [UK]: U.K.
[L]: LIMITED AREA
Parts marked with *require longer delivery time.
