Teac C-3RX - Page 19

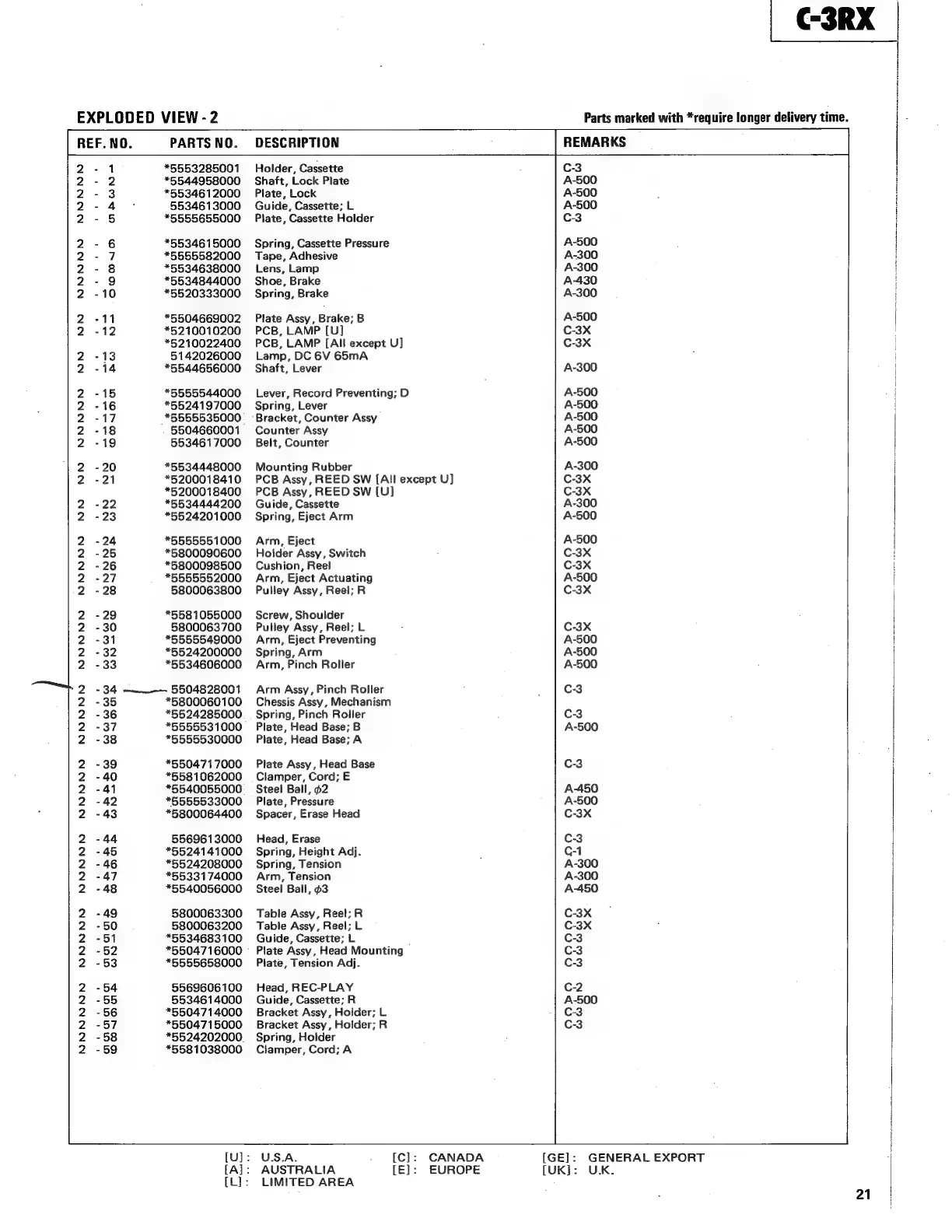

EXPLODED VIEW -2
C-3RX
| C3RX_
Parts marked with *require longer delivery time.
REMARKS
C-3
A-500
A-500
A-500
C-3
A-500
A-300
A-300
A-430
A-300
A-500
C-3X
C-3X
A-300
A-500
A-500
A-500
A-500
A-500
A-300
C-3X
C-3X
A-300
A-500
A-500
C-3X
C-3X
A-500
C-3X
C-3X
A-500
A-500
A-500
C-3
C-3
A-500
C-3
A450
A-500
C-3X
C-3
C-1
A-300
A-300
A-450
C-3X
C-3X
C-3
C-3
C-3
C-2
A-500
C-3
C-3
__
REF.NO. PARTS NO. DESCRIPTION
2-1 *5553285001 Holder, Cassette
2-2 *5544958000 Shaft, Lock Plate
2-3 *5534612000 Plate, Lock
2-4 5534613000 Guide, Cassette; L
2-5 *5555655000 Plate, Cassette Holder
2-6 *5534615000 Spring, Cassette Pressure
2-7 *5555582000 Tape, Adhesive
2-8 *5534638000 Lens, Lamp
2-9 *5534844000 Shoe, Brake
2 -10 *5520333000 Spring, Brake
2 -11 *5504669002 Plate Assy, Brake; B
2 -12 *5210010200 PCB, LAMP [U]
*5210022400 PCB, LAMP [All except U]
2 -13 5142026000 Lamp, DC 6V 65mA
2 -14 *5544656000 Shaft, Lever
2 -15 *5555544000 Lever, Record Preventing; D
2 -16 *5524197000 Spring, Lever
2 -17 _*5555535000 _=— Bracket, Counter Assy
2 -18 5504660001 Counter Assy
2 -19 5534617000 Belt, Counter
2 -20 *5534448000 Mounting Rubber
2 -21 *5200018410 PCB Assy, REED SW [All except U]
*5200018400 PCB Assy, REED SW [U]
2 -22 *5534444200 Guide, Cassette
2 -23 *5524201000 Spring, Eject Arm
2 -24 *5555551000 Arm, Eject
2 -25 *5800090600 Holder Assy, Switch
2 -26 *5800098500 Cushion, Reel
2 -27 *5555552000 Arm, Eject Actuating
2 -28 5800063800 Pulley Assy, Reel; R
2 -29 *5581055000 Screw, Shoulder
2 -30 5800063700 Pulley Assy, Reel; L
2 -31 *5555549000 Arm, Eject Preventing
2 -32 *5524200000 Spring, Arm
2 -33 *5534606000 Arm, Pinch Roller
"2 -34 — WH. 5504828001 Arm Assy, Pinch Roller
2 -35 *5800060100 Chessis Assy, Mechanism
2 -36 *6524285000 _ = Spring, Pinch Roller
2 -37 *5555531000 Plate, Head Base; B
2 -38 *5555530000 Plate, Head Base; A
2 -39 *5504717000 Plate Assy, Head Base
2 -40 *5581062000 Clamper, Cord; E
2 -41 *5540055000 =‘ Steel Ball, ¢2
2 -42 *5555533000 Plate, Pressure
2 -43 *5800064400 Spacer, Erase Head
2 -44 5569613000 Head, Erase
2 -45 *5524141000 Spring, Height Adj.
2 -46 *5524208000 Spring, Tension
2 -47 *5533174000 Arm, Tension
2 -48 *5540056000 Steel Ball, ¢3
2 -49 5800063300 Table Assy, Reel; R
2 -50 5800063200 Table Assy, Reel; L
2 -51 *5534683100 Guide, Cassette; L
2 -52 *5504716000 ' Plate Assy, Head Mounting
2 -53 *56555658000 Plate, Tension Adj.
2 -54 5569606100 Head, REC-PLAY
2 -55 5534614000 Guide, Cassette; R
2 -56 *5504714000 Bracket Assy, Holder; L
2 -57 *5504715000 Bracket Assy, Holder; R
2 -58 *5524202000. Spring, Holder
2 -59 *5581038000 Clamper, Cord; A
[UJ]: U.S.A. : {[C]: CANADA
[A]: AUSTRALIA [E]: EUROPE
(L]: LIMITED AREA
[GE]: GENERAL EXPORT
[UK]: U.K.
21
