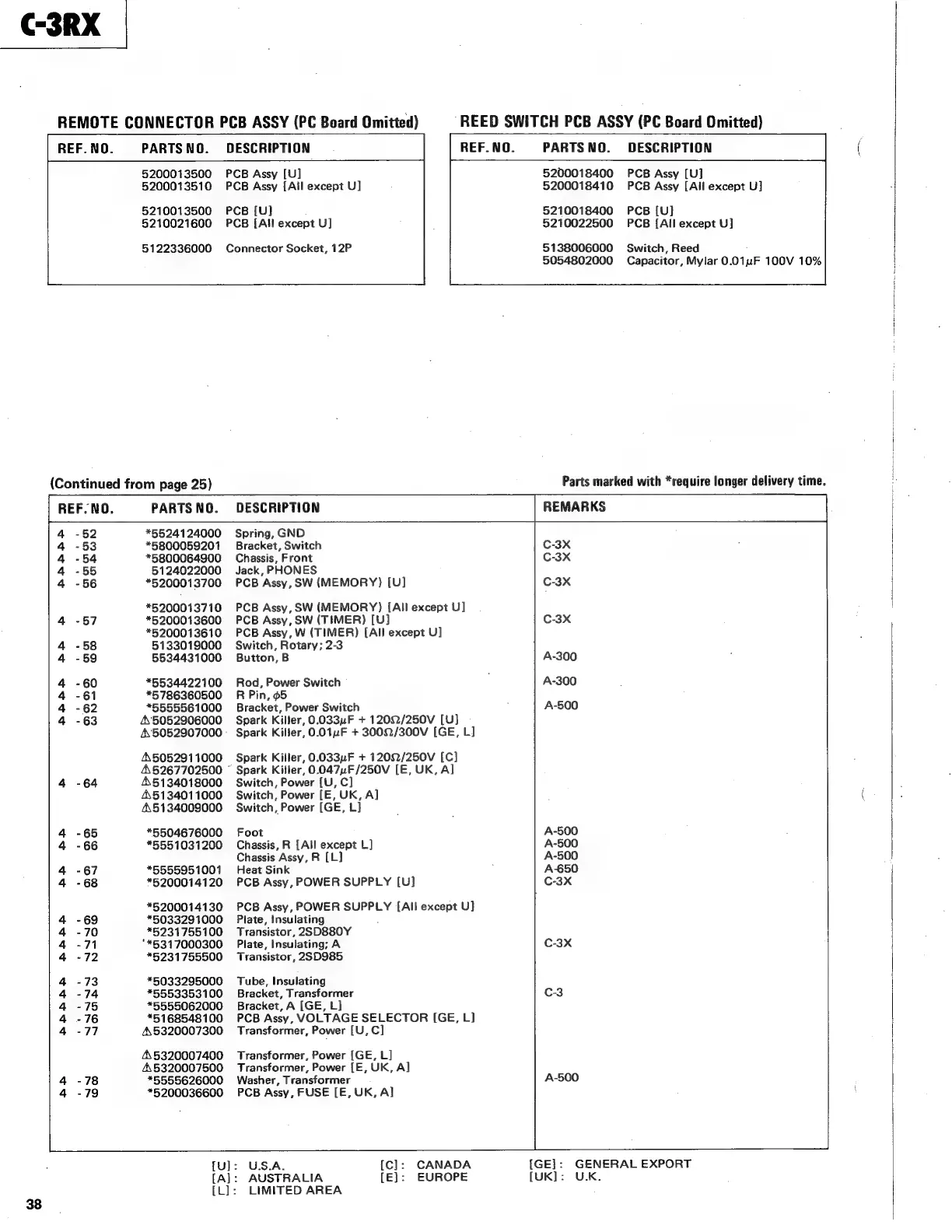

Teac C-3RX - Page 34

C-3RX
REMOTE CONNECTOR PCB ASSY (PC Board Omitted)
PARTS NO.
REED SWITCH PCB ASSY (PC Board Omitted)
DESCRIPTION REF.NO.
5200013500
5200013510
5210013500
5210021600
5122336000
PARTS NO. DESCRIPTION
PCB Assy [U]
PCB Assy {Ail except U]
PCB [U]
PCB [All except U]
Connector Socket, 12P
5200018400 PCB Assy [U]
5200018410 PCB Assy [All except U]
5210018400 PCB [U]
5210022500 PCB [Ail except U]
5138006000 Switch, Reed :
5054802000 Capacitor, Mylar 0.01nF 100V 10%
(Continued from page 25)
Parts marked with *require longer delivery time.
REMARKS
REFNO. PARTS NOG. DESCRIPTION
4 -52 *5524124000 Spring, GND
4 -53 *5800059201 Bracket, Switch
4 -54 *5800064900 Chassis, Front
4 -55 5124022000 Jack, PHONES
4 -56 *5200013700 PCB Assy, SW (MEMORY) [U]
*5200013710 PCB Assy, SW (MEMORY) [All except U]
4 -57 *5200013600 PCB Assy, SW (TIMER) [U]
*5200013610 PCB Assy, W (TIMER) [All except U]
4 -58 5133019000 Switch, Rotary; 2-3
4 -59 5534431000 Button, B
4 -60 *5534422100 Rod, Power Switch
4 -61 *5786360500 RF Pin, ¢5
4 -62 *5555561000 Bracket, Power Switch
4 -63 45052906000 Spark Killer, 0O.033uF + 1202/250V [U]
A\5052907000 = Spark Killer, 0.01uF + 3002/300V [GE, L]
A5052911000 Spark Killer, 0.033uF + 1202/250V [C]
45267702500 = Spark Killer, 0.047.F/250V [E, UK, A]
4 -64 45134018000 Switch, Power [U, C]
45134011000 Switch, Power [E, UK, A]
A5134009000 Switch, Power [GE, L]
4 -65 *5504676000 Foot
4 -66 *5551031200 Chassis, R [All except L]
Chassis Assy, R [L]
4 -67 *5555951001 Heat Sink
4 -68 *5200014120 PCB Assy, POWER SUPPLY [U]
*5200014130 PCB Assy, POWER SUPPLY [All except U]
4 -69 *5033291000 Plate, Insulating ;
4 -70 *5231755100 Transistor, 2SD880Y
4 -71 **5317000300 Plate, Insulating; A
4 -72 *5231755500 Transistor, 2SD985
4 -73 *5033295000 Tube, Insulating
4 -74 *5553353100 Bracket, Transformer
4 -75 *5555062000 Bracket, A [GE, L]
4 -76 *5168548100 PCB Assy, VOLTAGE SELECTOR [GE, L]
4 -77 A5320007300 Transformer, Power [U, C]
445320007400 Transformer, Power (GE, L]
45320007500 Transformer, Power [E, UK, A]
4 -78 *5555626000 Washer, Transformer
4 -79 *5200036600 PCB Assy, FUSE [E, UK, A]
SRes ss ae
338
{U]: US.A. {C]:
[Al: AUSTRALIA [E]:
C-3X
C-3X
C-3X
C-3X
A-300
A-300
A-500
A-500
A-500
A-500
A650
C-3X
C-3X
C-3
A-500
CANADA
EUROPE
[L]: LIMITED AREA
[GE]: GENERAL EXPORT
[UK]: U.K.
