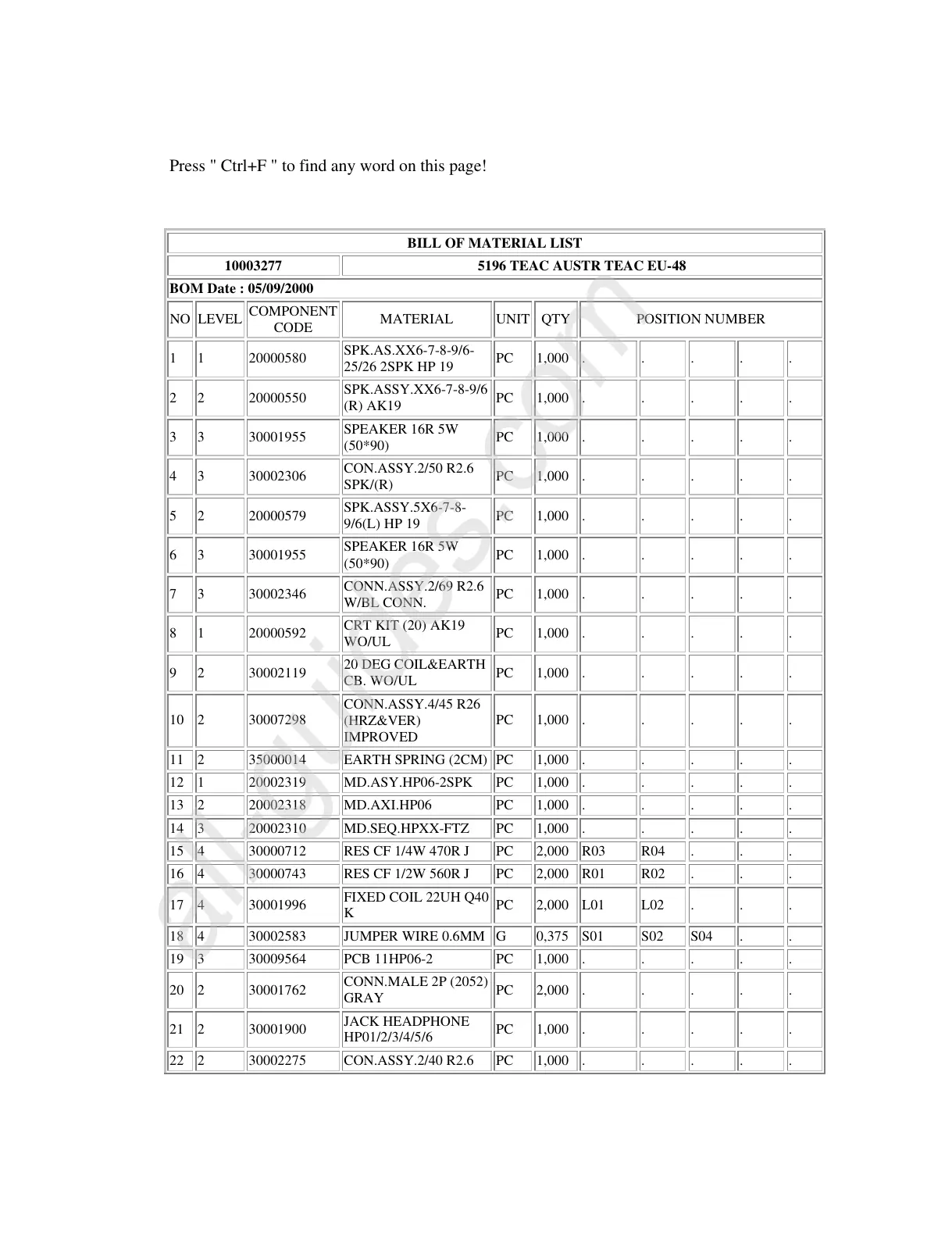

BILL OF MATERIAL LIST
10003277 5196 TEAC AUSTR TEAC EU-48
BOM Date : 05/09/2000
NO
LEVEL
COMPONENT
CODE
MATERIAL
UNIT
QTY
POSITION NUMBER
1 1 20000580
SPK.AS.XX6-7-8-9/6-
25/26 2SPK HP 19
PC 1,000 . . . . .
2 2 20000550
SPK.ASSY.XX6-7-8-9/6
(R) AK19
PC 1,000 . . . . .
3 3 30001955
SPEAKER 16R 5W
(50*90)
PC 1,000 . . . . .
4 3 30002306
CON.ASSY.2/50 R2.6
SPK/(R)
PC 1,000 . . . . .
5 2 20000579
SPK.ASSY.5X6-7-8-
9/6(L) HP 19
PC 1,000 . . . . .
6 3 30001955
SPEAKER 16R 5W
(50*90)
PC 1,000 . . . . .
7 3 30002346
CONN.ASSY.2/69 R2.6
W/BL CONN.
PC 1,000 . . . . .
8 1 20000592
CRT KIT (20) AK19
WO/UL
PC 1,000 . . . . .
9 2 30002119
20 DEG COIL&EARTH
CB. WO/UL
PC 1,000 . . . . .
10 2 30007298
CONN.ASSY.4/45 R26
(HRZ&VER)
IMPROVED
PC 1,000 . . . . .
11 2 35000014 EARTH SPRING (2CM)
PC 1,000 . . . . .
12 1 20002319 MD.ASY.HP06-2SPK PC 1,000 . . . . .
13 2 20002318 MD.AXI.HP06 PC 1,000 . . . . .
14 3 20002310 MD.SEQ.HPXX-FTZ PC 1,000 . . . . .
15 4 30000712 RES CF 1/4W 470R J PC 2,000 R03 R04 . . .
16 4 30000743 RES CF 1/2W 560R J PC 2,000 R01 R02 . . .
17 4 30001996
FIXED COIL 22UH Q40
K
PC 2,000 L01 L02 . . .
18 4 30002583 JUMPER WIRE 0.6MM
G 0,375 S01 S02 S04 . .
19 3 30009564 PCB 11HP06-2 PC 1,000 . . . . .
20 2 30001762
CONN.MALE 2P (2052)
GRAY
PC 2,000 . . . . .
21 2 30001900
JACK HEADPHONE
HP01/2/3/4/5/6
PC 1,000 . . . . .
22 2 30002275
CON.ASSY.2/40 R2.6
PC 1,000 . . . . .
