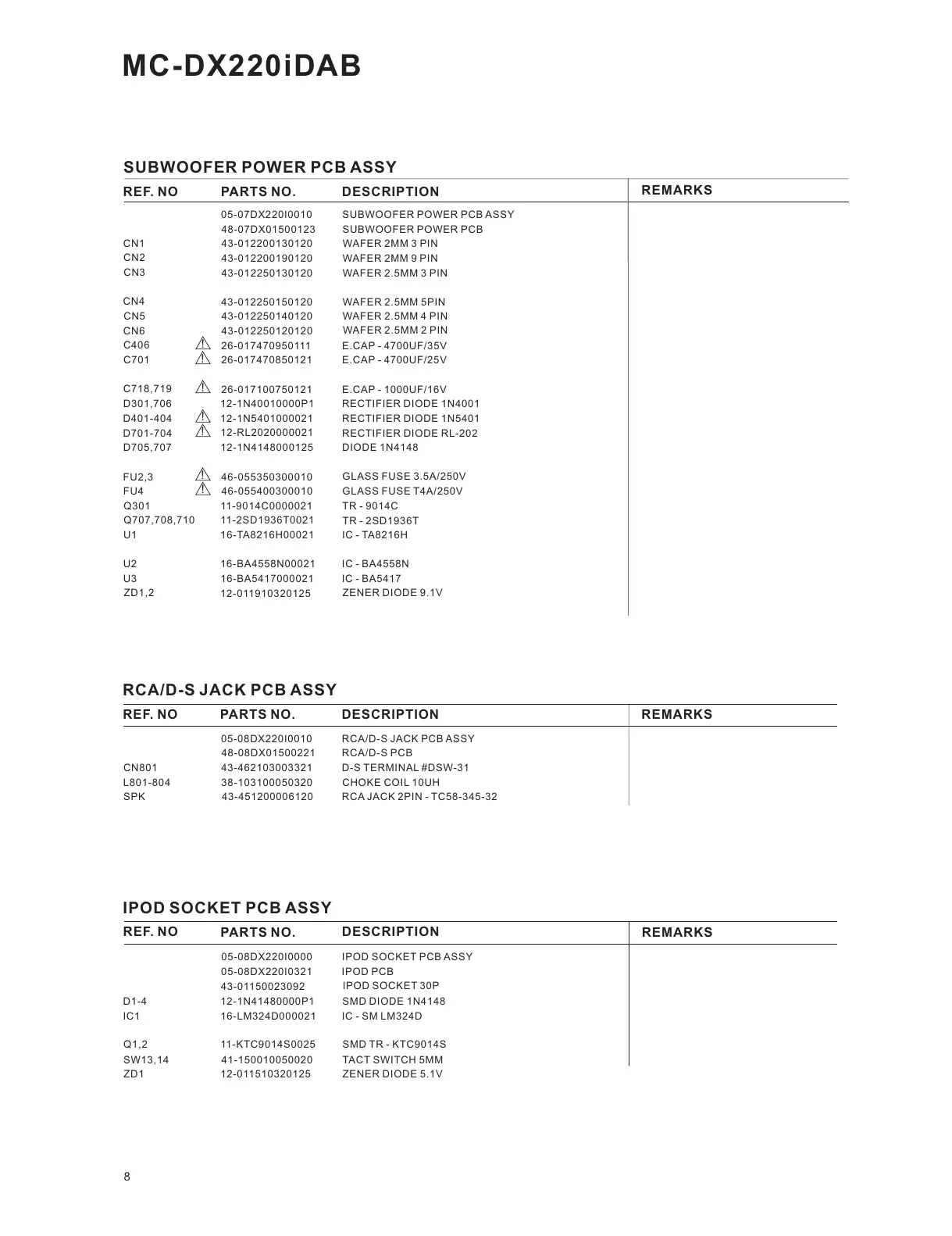

Teac MC-DX220iDAB - Page 8

REF. NO
PARTS NO.
DESCRIPTION
SUBWOOFER POWER PCB ASSY
05-07DX220I0010
SUBWOOFER POWER PCB ASSY
48-07DX01500123
SUBWOOFER POWER PCB
CN1
43-012200130120
WAFER 2MM 3 PIN
CN2
43-012200190120
WAFER 2MM 9 PIN
CN4
43-012250130120
WAFER 2.5MM 3 PIN
CN5
43-012250140120
WAFER 2.5MM 4 PIN
CN6
43-012250120120
WAFER 2.5MM 2 PIN
C701
26-017470850121
E.CAP - 4700UF/25V
C718,719
26-017100750121
E.CAP - 1000UF/16V
C406
26-017470950111
E.CAP - 4700UF/35V
D401-404
12-1N5401000021
RECTIFIER DIODE 1N5401
D701-704
12-RL2020000021
RECTIFIER DIODE RL-202
D705,707
12-1N4148000125
DIODE 1N4148
D301,706
12-1N40010000P1
RECTIFIER DIODE 1N4001
FU2,3
FU4
Q301
11-9014C0000021
TR - 9014C
Q707,708,710
11-2SD1936T0021
TR - 2SD1936T
U1
16-TA8216H00021
IC - TA8216H
U2
16-BA4558N00021
IC - BA4558N
U3
16-BA5417000021
IC - BA5417
ZD1,2
12-011910320125
ZENER DIODE 9.1V
46-055350300010
GLASS FUSE 3.5A/250V
46-055400300010
GLASS FUSE T4A/250V
REMARKS
CN3
43-012250150120
WAFER 2.5MM 5PIN
MC-DX220iDAB
REF. NO
PARTS NO.
DESCRIPTION
RCA/D-S JACK PCB ASSY
05-08DX220I0010
RCA/D-S JACK PCB ASSY
48-08DX01500221
RCA/D-S PCB
SPK
43-451200006120
RCA JACK 2PIN - TC58-345-32
REMARKS
L801-804
CHOKE COIL 10UH
CN801
43-462103003321
D-S TERMINAL #DSW-31
38-103100050320
!
!
!
!
!
!
8
REF. NO
PARTS NO.
DESCRIPTION
IPOD SOCKET PCB ASSY
05-08DX220I0000
IPOD SOCKET PCB ASSY
11-KTC9014S0025
SMD TR - KTC9014S
IC1
16-LM324D000021
IC - SM LM324D
REMARKS
D1-4
SMD DIODE 1N4148
ZD1
12-011510320125
ZENER DIODE 5.1V
12-1N41480000P1
05-08DX220I0321
IPOD PCB
Q1,2
SW13,14
41-150010050020
TACT SWITCH 5MM
!
43-01150023092
IPOD SOCKET 30P
