Teac R-H500 User Manual

ENGLISH
_
5
_

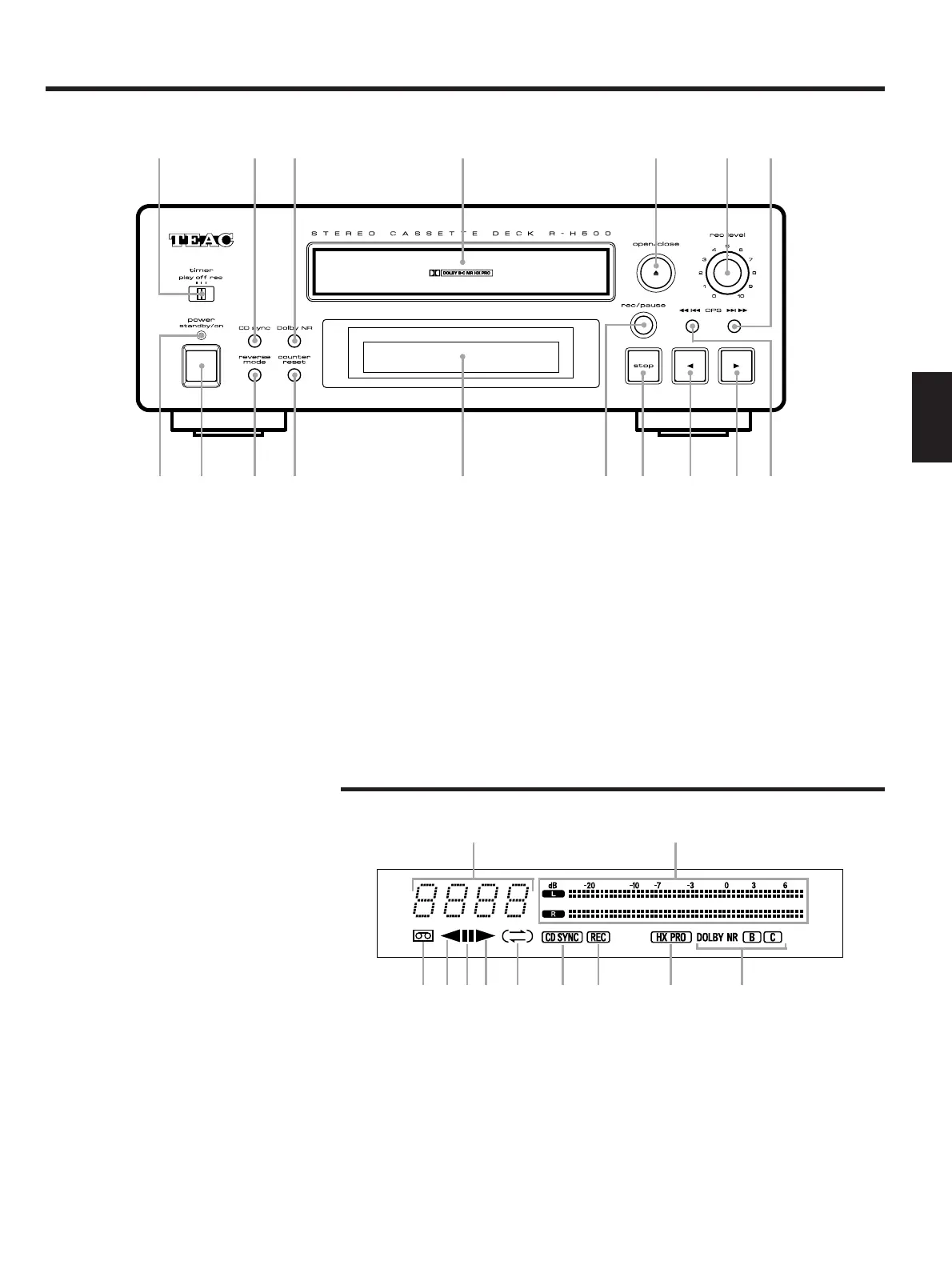

Front Panel Controls and Their Functions
Display
1power standby/on button
2power standby indicator
This indicator lights up in the power
standby mode; goes out when this unit is
turned on.
3timer switch (play/off/rec)
This switch is used for selecting the
operation mode of the timer start function
when the power is turned on. (See page 8.)
Note:
Set this switch to the off position when you
do not engage the timer start function.
4CD sync button
(See page 7.)
5Dolby NR system selector
button
(See pages 6 and 8.)
6Cassette Tray
Load a cassette tape here.
7open/close (∫) button
This button is used for opening or closing
the tray.
8rec level control
This volume control is used for adjusting
the recording input level.
9Fast forward (Ò)/CPS (Æ)
button
This button works as fast forward button in
the stop mode; forward skip button during
play. (See page 6.)
1 Digital tape counter
2 Level meter
3 Tape loading indicator
4 Reverse play indicator
5 Pause indicator
6 Forward play indicator
7 Play mode indicator
8 CD synchronous recording
indicator
9 Recording indicator
0 DOLBY HX PRO indicator
q DOLBY NR indicator
rrec/pause button
tDisplay
ycounter reset button
This button is used for resetting the digital
tape counter to 0000.
ureverse mode button
This button is used for selecting the
operating mode of the tape.
0Rewind ()/CPS (Ú) button
This button works as rewind button in the
stop mode; reverse skip button during play.
(See page 6.)
qForward play (∏) button
wReverse play (”) button
estop button
345 6 789
0qrt21 uy e w
3456 7 8 9 0 q
21
