Teac V-5000 Owner's Manual

2
ee

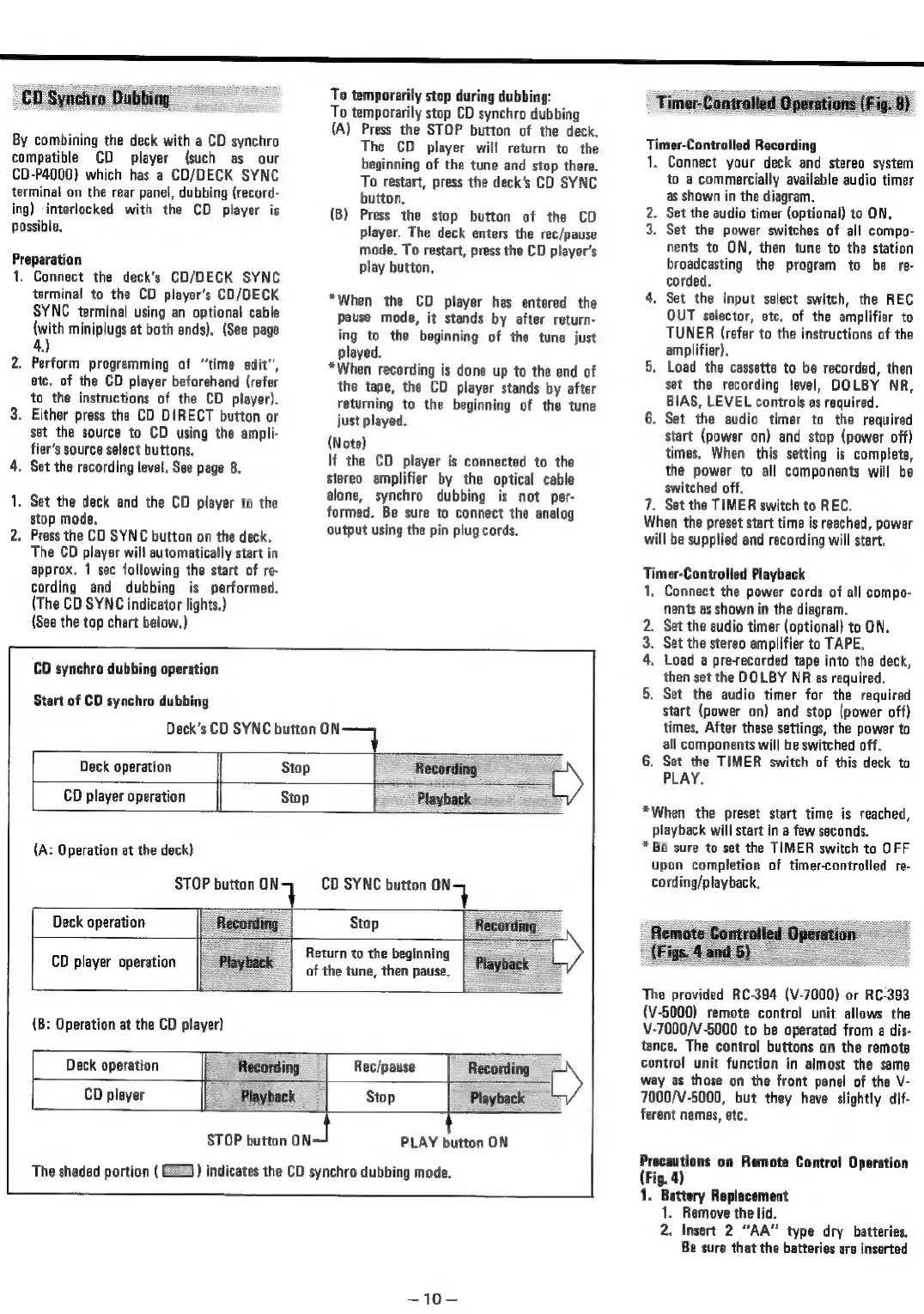

CD Synchro Dubbing —
By combining the deck with a CD synchro
compatible CD player (such as our
CD-P4000) which has a CD/DECK SYNC
terminal on the rear panel, dubbing (record-
ing) ‘interlocked with the CD player is
Possible,
Preparation
1. Connect the deck’s CD/DECK SYNC
terminal to the CD player's CD/DECK
SYNC terminal using an optional cable
(with miniplugs at both ends). (See page
4.)
2. Perform programming of “time edit",
etc, of the CD player beforehand (refer
to the instructions of the CD player).
3. Either press the CD DIRECT button or
set the source to CD using the ampli-
fier’s source select buttons.
4, Set the recording level. See page 8.
. Set the deck and the CD player to the
stop mode.
Press the CD SYNC button on the deck.
The CD player will automatically start in
approx. 1 sec following the start of re-
cording and dubbing is performed.
(The CD SYNC indicator lights.)
(See the top chart below.)
nN
To temporarily stop during dubbing:
To temporarily stop CD synchro dubbing
(A) Press the STOP button of the deck.
The CD player will return to the
beginning of the tune and stop there.
To restart, press the deck’s CD SYNC
button,
(B) Press the stop button of the CD
player. The deck enters the rec/pause
mode, To restart, press the CD player's
play button,
*When the CD player has entered the
Pause mode, it stands by after return-
ing to the beginning of the tune just
played.
*When recording is done up to the end of
the tape, the CD player stands by after
returning to the beginning of the tune
just played.
(Note)
If the CD player is connected to the
stereo amplifier by the optical cable
alone, synchro dubbing is not per-
formed. Be sure to connect the analog
output using the pin plug cords.
CD synchro dubbing operation
Start of CD synchro dubbing
Deck’s CD SYNC button ON
Deck operation
CD player operation
(A: Operation at the deck)
STOP button ON
CD SYNC button ON
Deck operation
CD player operation
Stop ‘Recording
Return to the beginning | s:siéY
of the tune, then pause. =
Playback
Deck operation
Rec/pause
CD player
Recording »
Stop Playback
The shaded portion
STOP button ON—
) indicates the CD synchro dubbing mode.
PLAY button ON
-~10-
Timer-Controlled
Operations
(Fig.
8)
Timer-Controlled Recording
1. Connect your deck and stereo system
to a commercially available audio timer
as shown in the diagram.
. Set the audio timer (optional) to ON.
. Set the power switches of all compo-
nents to ON, then tune to the station
broadcasting the program to be re-
corded.
4, Set the input select switch, the REC
OUT selector, etc, of the amplifier to
TUNER (refer to the instructions of the
amplifier).
5. Load the cassette to be recorded, then
set the recording level, DOLBY NR,
BIAS, LEVEL controls as required.
6. Set the audio timer to the required
start (power on) and stop (power off)
times. When this setting is complete,
the power to all components will be
switched off.
7. Set the TIMER switch to REC.
When the preset start time is reached, power
will be supplied and recording will start.
eon
Tine Cantroleg Playback
1, Connect the power cords of all compo-
nents as shown in the diagram.
. Set the audio timer (optional) to ON.
. Set the stereo amplifier to TAPE.
. Load a pre-recorded tape into the deck,
then set the DOLBY NR as required.
5, Set the audio timer for the required
start (power on) and stop (power off)
times, After these settings, the power to
all components will be switched off.
6. Set the TIMER switch of this deck to
PLAY,
PON
*When the preset start time is reached,
playback will start in a few seconds.
* Be sure to set the TIMER switch to OFF
upon completion of timer-controlled re-
cording/playback.
The provided RC-394 (V-7000) or RC-393
(V-5000) remote control unit allows the
V-7000/V-5000 to be operated from a dis-
tance. The control buttons on the remote
control unit function in almost the same
way as those on the front panel of the V-
7000/V-5000, but they have slightly dif-
ferent names, etc.
Precautions on Remote Control Operation
(Fig. 4)
1. Battery Replacement
1. Remove the lid.
2. Insert 2 “AA” type dry batteries.
Be sure that the batteries are inserted
