Teac V-5000 Owner's Manual

S|

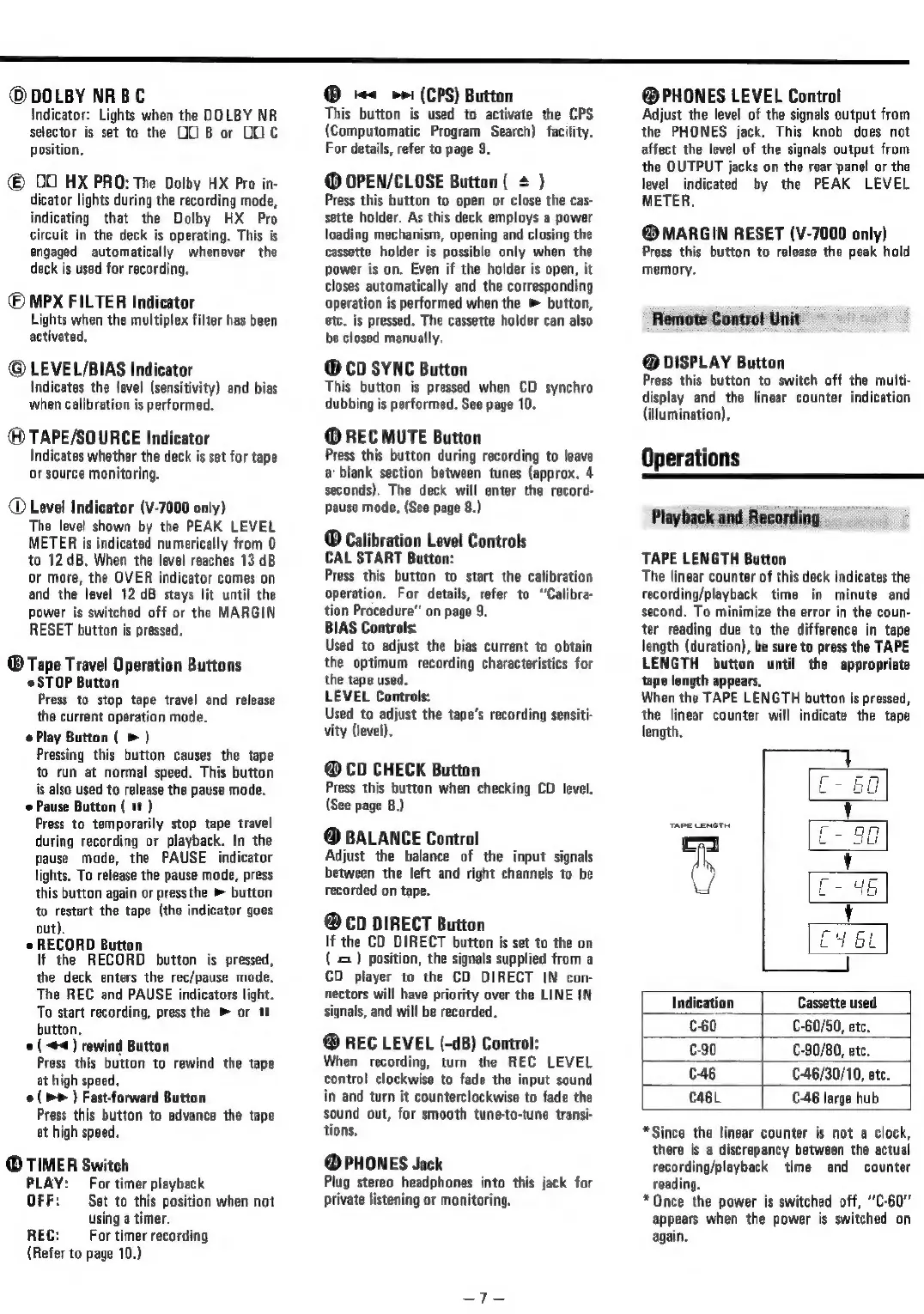

© DOLBY NRBC
Indicator: Lights when the DOLBY NR
selector is set to the OO B or OOC
position.
© OO HX PRO: The Dolby HX Pro in-
dicator lights during the recording mode,
indicating that the Dolby HX Pro
circuit in the deck is operating. This is
engaged automatically whenever the
deck is used for recording.
© MPX FILTER Indicator
Lights when the multiplex filter has been
activated,
@ LEVEL/BIAS Indicator
Indicates the level (sensitivity) and bias
when calibration is performed.
@ TAPE/SOURCE Indicator
Indicates whether the deck is set for tape
or source monitoring.
© Level Indicator (V-7000 only)
The level shown by the PEAK LEVEL
METER is indicated numerically from 0
to 12 dB. When the level reaches 13 dB
or more, the OVER indicator comes on
and the level 12 dB stays lit until the
power is switched off or the MARGIN
RESET button is pressed.
@® Tape Travel Operation Buttons
«STOP Button
Press to stop tape travel and release
the current operation mode.
Play Button ( > )
Pressing this button causes the tape
to run at normal speed. This button
is also used to release the pause mode.
¢ Pause Button ( 1 )
Press to temporarily stop tape travel
during recording or playback. In the
pause mode, the PAUSE indicator
lights. To release the pause mode, press
this button again or pressthe > button
to restart the tape (the indicator goes
out).
«RECORD Button
lf the RECORD button is pressed,
the deck enters the rec/pause mode.
The REC and PAUSE indicators light.
To start recording, press the » or 1
button,
e ( 1) rewind Button
Press this button to rewind the tape
at high speed,
(> ) Fast-forward Button
Press this button to advance the tape
at high speed.
@®TIMER Switch
PLAY: For timer playback
OFF: Set to this position when not
using a timer.
REC: For timer recording
(Refer to page 10.)
@ ‘<< >>: (CPS) Button
This button is used to activate the CPS
(Computomatic Program Search) facility.
For details, refer to page 9.
@® OPEN/CLOSE Button ( + )
Press this button to open or close the cas-
sette holder. As this deck employs a power
loading mechanism, opening and closing the
cassette holder is possible only when the
power is on. Even if the holder is open, it
closes automatically and the corresponding
operation is performed when the » button,
etc. is pressed. The cassette holder can also
be closed manually.
@ CD SYNC Button
This button is pressed when CD synchro
dubbing is performed. See page 10.
@® REC MUTE Button
Press this button during recording to leave
a blank section between tunes (approx. 4
seconds). The deck will enter the record-
pause mode, (See page 8.)
® Calibration Level Controls
CAL START Button:
Press this button to start the calibration
operation. For details, refer to ‘‘Calibra-
tion Procedure” on page 9.
BIAS Controls:
Used to adjust the bias current to obtain
the optimum recording characteristics for
the tape used.
LEVEL Controls:
Used to adjust the tape’s recording sensiti-
vity (level).
@ CD CHECK Button
Press this button when checking CD level.
(See page 8.)
@ BALANCE Control
Adjust the balance of the input signals
between the left and right channels to be
recorded on tape.
@ CD DIRECT Button
If the CD DIRECT button is set to the on
{ =.) position, the signals supplied from a
CD player to the CD DIRECT IN con-
nectors will have priority over the LINE IN
signals, and will be recorded.
@ REC LEVEL (-dB) Control:
When recording, turn the REC LEVEL
control clockwise to fade the input sound
in and turn it counterclockwise to fade the
sound out, for smooth tune-to-tune transi-
tions,
@ PHONES Jack
Plug stereo headphones into this jack for
private listening or monitoring.
@® PHONES LEVEL Control
Adjust the level of the signals output from
the PHONES jack. This knob does not
affect the level of the signals output from
the OUTPUT jacks on the rear panel or the
level indicated by the PEAK LEVEL
METER.
@ MARGIN RESET (V-7000 only)
Press this button to release the peak hold
memory.
Remote Control Unit
@ DISPLAY Button
Press this button to switch off the multi-
display and the linear counter indication
(illumination),
Operations
Playback and Recording
TAPE LENGTH Button
The linear counter of this deck indicates the
recording/playback time in minute and
second. To minimize the error in the coun-
ter reading due to the difference in tape
length (duration), be sure to press the TAPE
LENGTH button until the appropriate
tape length appears,
When the TAPE LENGTH button is pressed,
the linear counter will indicate the tape
length,
TAPE LENGTH
Indication Cassette used
C60 C-60/50, ete,
C90 C-90/80, etc,
C46 €-46/30/10, etc.
C46L C-46 large hub
“Since the linear counter is not a clock,
there is a discrepancy between the actual
recording/playback time and counter
reading.
* Once the power is switched off, “C-60""
appears when the power is switched on
again.
