Team C T8TE - Page 15

T08674 M4x10 Screw
Schraube
…………4
19

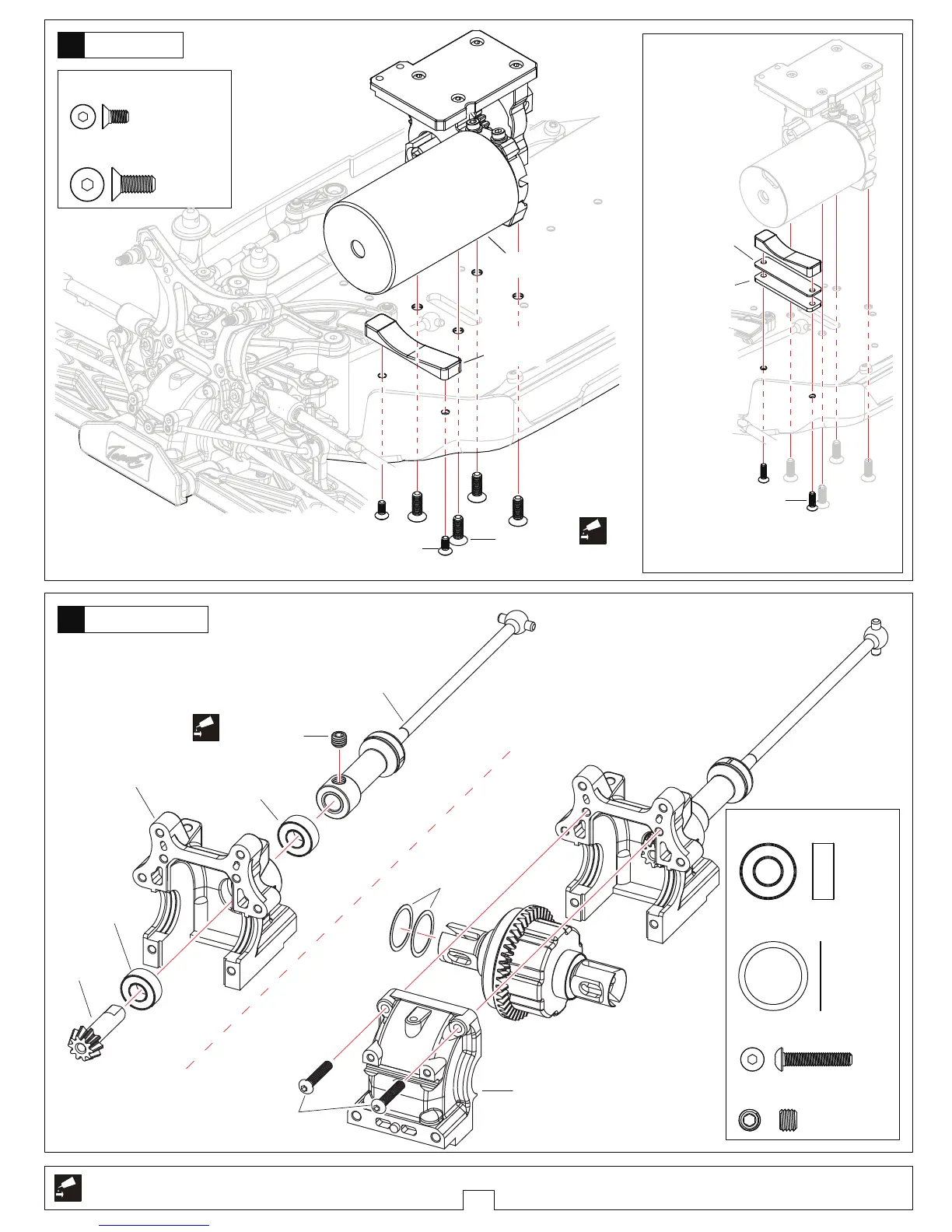

Center Differential
Mittel Differential
20
Bag-C
10
T08674 M4x10
Rear Differential Case
Diff Box hinten
T08304 13.1x15.9x0.2 Washer
Beilagscheibe
…………2
T08663 6x13x5 Ball Bearing
Kugellager
………2
T08673 M3x16 Screw
Schraube
……2
TG8017 M5x4 Screw
Schraube
………………1
TG8017
132mm Center Rear CVD
132mm CVD Mitte hinten
T08304
13.1x15.9x0.2
Screw
Cement
Bag-C
Bag-E
T08673 M3x16
T08601
Differential Case
Diff Box
TG8017 M5x4
T08601
Differential Case
Diff Box
T08636
10T Gear
Kegelritzel
T08663 6x13x5
T08663 6x13x5
Screw
Cement
Apply threadlock
Schraubensicherungslack verwenden
Screw
Cement
TG8030 M3x6 Screw
Schraube
…………………2
TG8030 M3x6
T08674 M3x10
TG8029
1mm Washer
Beilagscheibe
TG8029
Motor Mount
Motorhalterung
TG8029
2mm Washer
Beilagscheibe
Please use the above configuration when motor-
outside diameter is 36mm
Bitte verwenden Sie die oben gezeigte Konfiguration
wenn der Motor einen Durchmesser von 36mm hat.
Motor diameter 42mm
Motor Durchmesser 42mm
