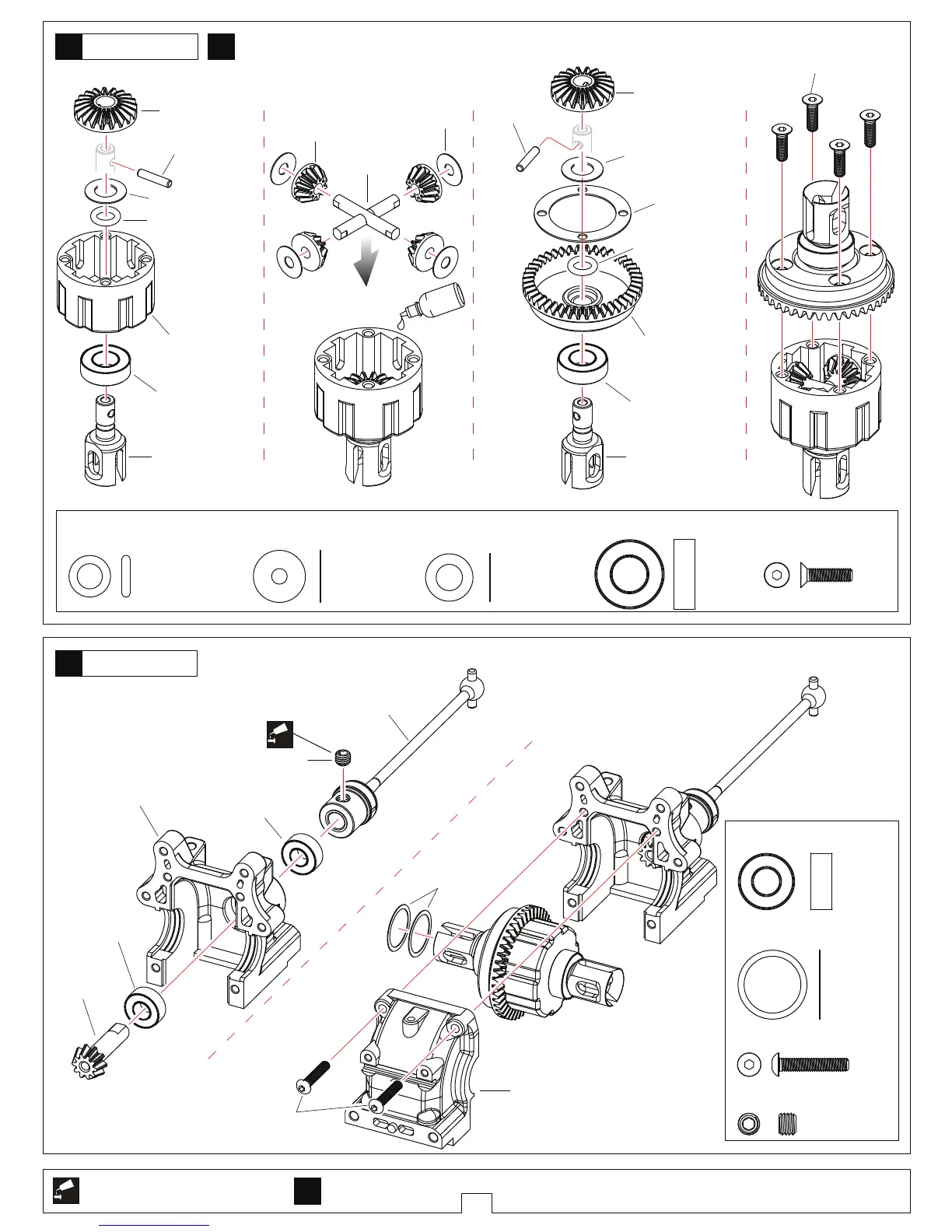

Team C T8TE - Page 8

Apply threadlock
Schraubensicherungslack verwenden
3
T08304 13.1x15.9x0.2 Washer
Beilagscheibe
…………2
T08663 6x13x5 Ball Bearing
Kugellager
………2
T08673 M3x16 Screw
Schraube
……2
TG8016 M5x4 Screw
Schraube
………………1
TG8016 M5x4
TG8016
87mm Center Front CVD
87mm CVD Mitte vorne
T08601
Differential Case
Diff Box
T08636
10T Gear
Kegelritzel
T08673 M3x16
T08601
Differential Case
Diff Box
T08663 6x13x5
T08304
13.1x15.9x0.2
T08663 6x13x5
6
Front Differential Case
Diff Box vorne
x2
Assemble as many times as specified So oft montieren wie angegeben
Screw
Cement
Screw
Cement
Bag-C Bag-D
T08600/T08636 5.8x1.9 O-Ring
…………………4
T08633 4.1x12x0.2 Washer
Beilagscheibe
…………8
T08664 8x16x5 Ball Bearing
Kugellager
………4
……8
T08636 M3x12 Screw
Schraube
T08633
20T Diff Gear
Diff Zahnrad
T08633
10T Diff Gear
Diff Zahnrad
T08633
20T Diff Gear
Diff Zahnrad
T08633
2.5x11.5 Pin
T08633
2.5x11.5 Pin
T08634
Diff Connecting Cup
Diff Mitnehmer
T08634
Diff Connecting Cup
Diff Mitnehmer
T08600
Differential Housing
Diff Gehäuse
T08633 4.1x12x0.2
T08633
Diff Shaft
Diff Schaft
T08600
Differential Pads
Diff Scheiben
T08636
43T Diff Gear
Diff Zahnrad
T08636 M3x12
T08600 5.8x1.9
T08664 8x16x5
T08636 5.8x1.9
T08664 8x16x5
Oil
5
Front/Rear Differential
Diff vorne/hinten
x2
7000# for Front
7000# für Vorne
3000# for Rear
3000# für Hinten
Bag-C
T08669 6.1x11x0.2
T08669 6.1x11x0.2
T08669 6.1x11x0.2 Washer
Beilagscheibe
…………4
