SIDE PULL TYPE BRAKES (ROAD BICYCLES)
When your side pull brake caliper is properly
adjusted, you should have between 1-2mm gap
between the brake block and the wheel rim.

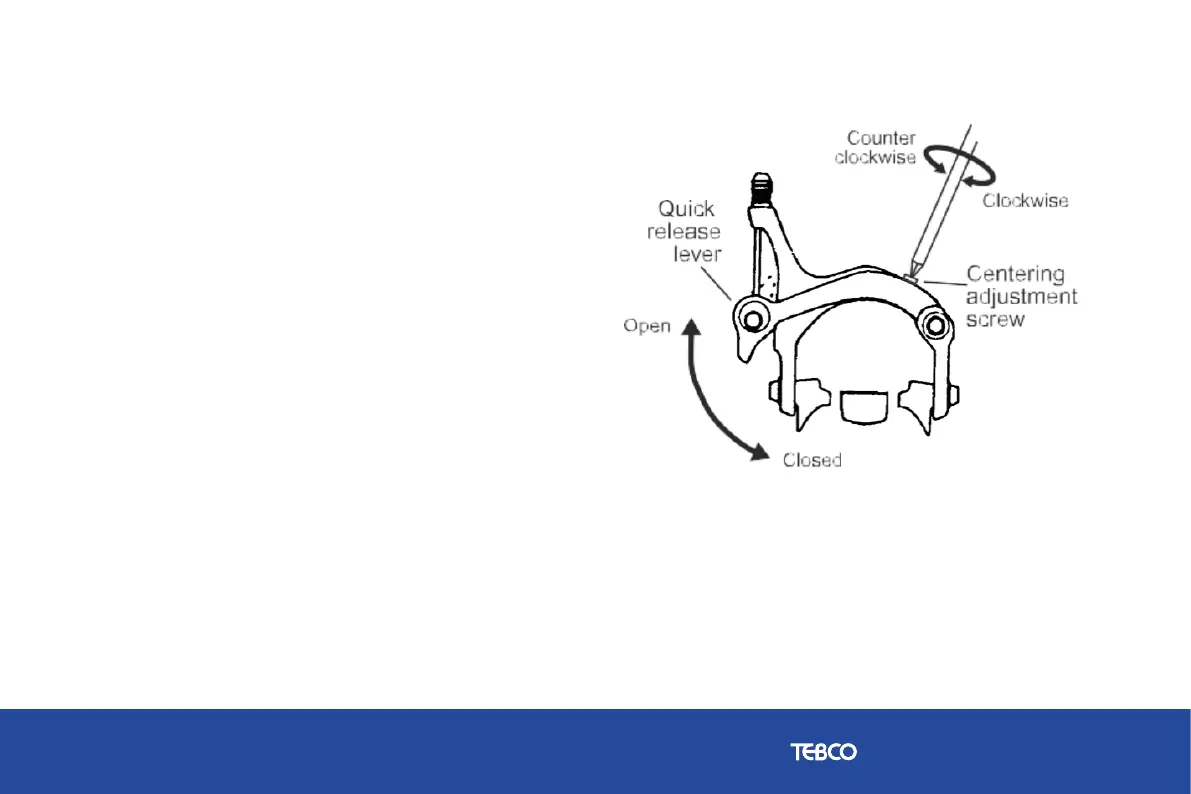

• To centre the brake caliper use the
centering adjustment screw to centre the
brakes.
• Turn the screw CLOCKWISE to move the
caliper to the right.
• Turn the screw ANTI-CLOCKWISE to move
the caliper to the left.
• To set the gap between the blocks and the
wheel rim use the Cable Adjustment Bolt.
