teca 0-018C-4-000 - Page 3

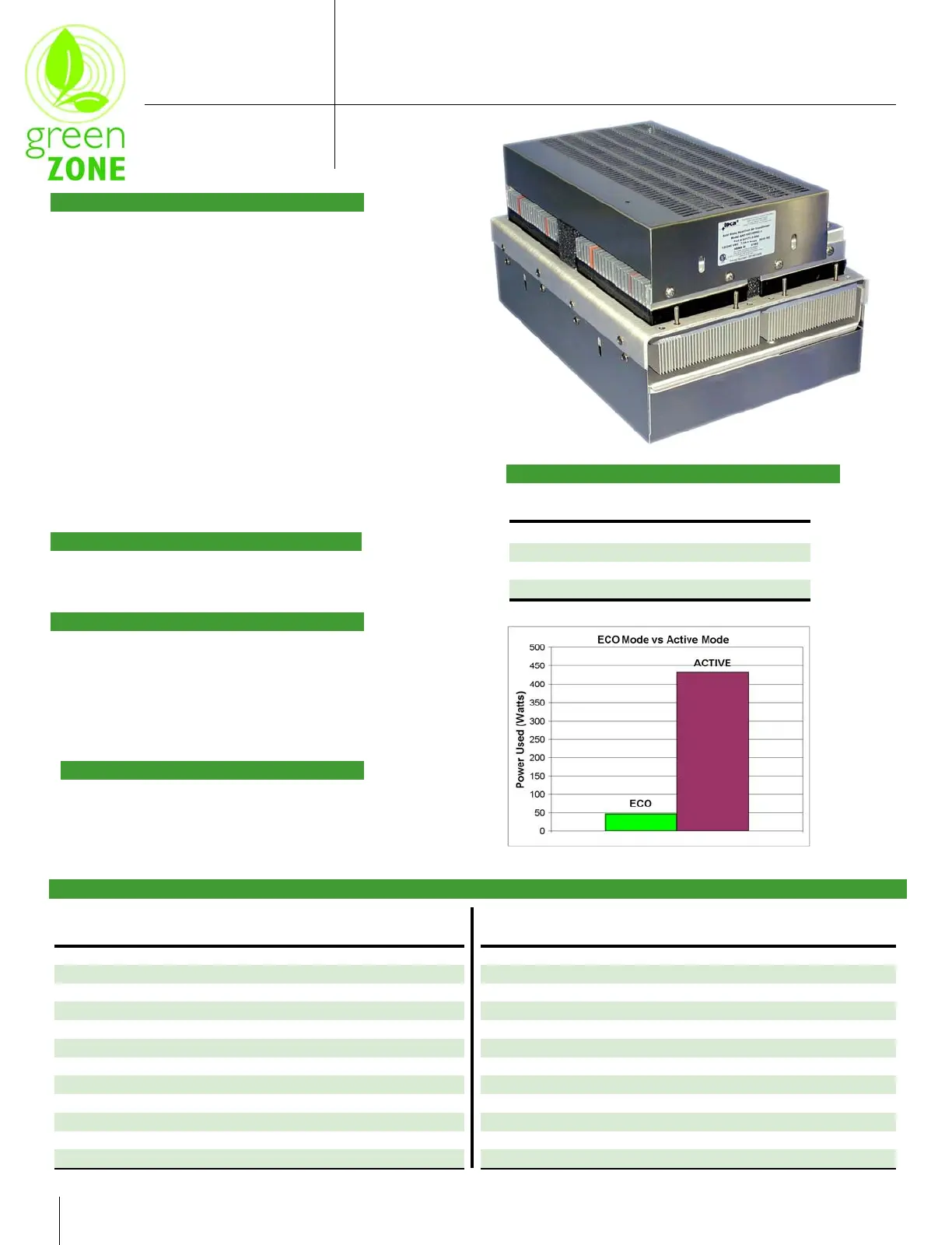

AHP-1800 Air Conditioner
Air Cooled 24 VDC Input
Through Mounted High Efficiency
NEMA-12, 4, 4X 1100 BTU/HR
TECA 1-888-TECA-USA (832-2872) www.teca-usa.com
CONFIGURATIONS
MODEL PART NUMBER NOTES TEMPERATURE ENVIRONMENT
CONTROL
AHP-1800 0-0195-0-000 Cool only None NEMA-12, IP 52
AHP-1800 0-0185-0-000 Cool only TC-6F NEMA-12, IP 52
AHP-1800 0-01F5-0-000 Cool only TC-1F NEMA-12, IP 52
AHP-1800 0-0155-0-000 Cool only EXT* NEMA-12, IP 52
AHP-1800HC 0-0135-1-000 Heat/Cool TC-3F NEMA-12, IP 52
AHP-1800HC 0-01I5-1-000 Heat/Cool TC-7F NEMA-12, IP 52
AHP-1800HC 0-0155-1-000 Heat/Cool EXT* NEMA-12, IP 52
AHP-1800HC 0-01H5-1-000 Heat/Cool TC-4600 NEMA-12, IP 52
AHP-1800XE 0-0195-4-000 Cool only None NEMA-4, IP 56
AHP-1800XE 0-0185-4-000 Cool only TC-6F NEMA-4, IP 56
AHP-1800XE 0-01F5-4-000 Cool only TC-1F NEMA-4, IP 56
AHP-1800XE 0-0155-4-000 Cool only EXT* NEMA-4, IP 56
* Unit is set for 5-32 VC external signal, relay(s) included
FEATURES
• High capacity thermoelectric design
• Lower profile intrusion into enclosure
• Closed loop design
• Condensate control and evaporation system
• Compact
• Increased efficiency at higher ambients by as much as 12%
• Virtually maintenance free
• No compressor
• Environmentaly friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Operating ambient temperature range -40/+65 °C
• Operating enclosure temperature range -10/+60 °C
• Weight 55 LBS.
CONTROL TEMPERATURES
INCLUDES
• Temperature controller
• Mounting gasket
• Mounting hardware
• Power input leads
Voltage 24 VDC
Current, Active 18 AMPS
Current , ECO-Mode 1.9 AMPS
POWER INPUTS
Cooling (Traditional) 1100 BTU/HR
Cooling (Din 3168) 322 WATTS
Cooling COP (at L35 L35) 0.74
Heating (Traditional) > 1473 BTU/HR
Heating (Din 3168) > 432 WATTS
Heating COP > 1.0
PERFORMANCE RATINGS
250 VDC configuration for crane applications available
MODEL PART NUMBER NOTES TEMPERATURE ENVIRONMENT
CONTROL
AHP-1800XEHC 0-0135-5-000 Heat/Cool TC-3F NEMA-4, IP 56
AHP-1800XEHC 0-01I5-5-000 Heat/Cool TC-7F NEMA-4, IP 56
AHP-1800XEHC 0-0155-5-000 Heat/Cool EXT* NEMA-4, IP 56
AHP-1800XEHC 0-01H5-5-000 Heat/Cool TC-4600 NEMA-4, IP 56
AHP-1800X 0-0195-2-000 Cool only None NEMA-4X, IP 56
AHP-1800X 0-0185-2-000 Cool only TC-6F NEMA-4X, IP 56
AHP-1800X 0-01F5-2-000 Cool only TC-1F NEMA-4X, IP 56
AHP-1800X 0-0155-2-000 Cool only EXT* NEMA-4X, IP 56
AHP-1800XHC 0-0135-3-000 Heat/Cool TC-3F NEMA-4X, IP 56
AHP-1800XHC 0-01I5-3-000 Heat/Cool TC-7F NEMA-4X, IP 56
AHP-1800XHC 0-0155-3-000 Heat/Cool EXT* NEMA-4X, IP 56
AHP-1800XHC 0-01H5-3-000 Heat/Cool TC-4600 NEMA-4X, IP 56
Consult factory for full shock and vibration models
Temp. Active Heat ECO-Mode Active Cool
Control °C °C °C
TC-1F - - 35
TC-6F - - 25 or 35
TC-3F 10 - 35
TC-7F 10 25 35
