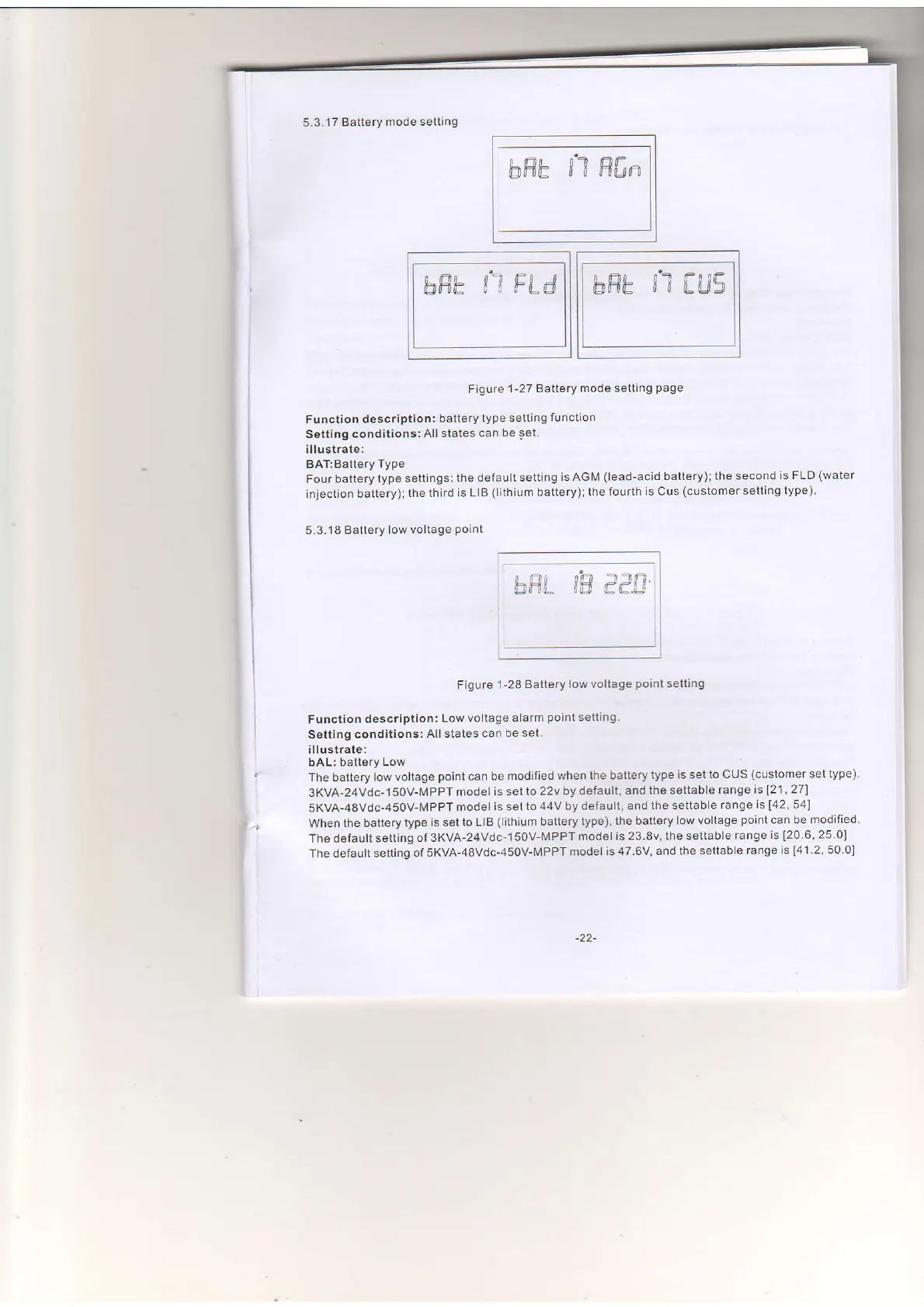

Techfine 1KVA - 5.3.17 Battery mode setting; 5.3.18 Battery low voltage point

5.3.'17
Battery
mode setting
hRh
fl
FLd
r f='r n
'ttn
Fltrf=
Ef1tr
il
il
L[.r3
Figure 1-27
Battery mode setting
page
Function
description:
battery
type selting
lunction
Settihg
conditions:
All
states can
be set
illustrate:
BAT:Battery
Type
Four baltery
iype settingsr
the defautt
setting is AGM
(lead-acid battery); the
second is
FLD
(water
injection
battery);
the third is
LIB
(lithium
battery);
the fourth
is Cus
(customer
setting
type)
5.3.18
Battery low
voltage
Point
Figure
1-28
Battery lowvoltage
pointsetting
Funclion
description:
Low voitage
alarm
point
setting.
Settlng conditions:
Allstates can
be set.
illustrate:
bAL:
battery Low
The battery
low voltage
point
can be
modified
when the battery
type is set
to CUS
(customer
set type)
3KVA-24Vdc-150V-MPPT
model is set
to 22v by
default, and the
settable range
is
121'
271
5KVA-48Vdc-450V-MPPT
model
is set to
44V by default,
and the settable
range
is
[42,
54]
Whon
the battery type
is set to
LIB
(lithium
battery
type)'
the battery low
voltage
point can be modified'
The default
setting of
3KVA-24Vdc-150V-MPPT
model is
23.8v' the settable
range
is
[20.6'
25.0]
The defaujt
setting of
5KVA-48Vdc-450V-MPPT
model is
47.6V, and the settable
range
is
[41
2, 50 0]
