18G HDMI2.0 EXTENDER SET
OVER CAT5E/6 CABLE
6
WWW.TECHLY.COM
1
2 3 4

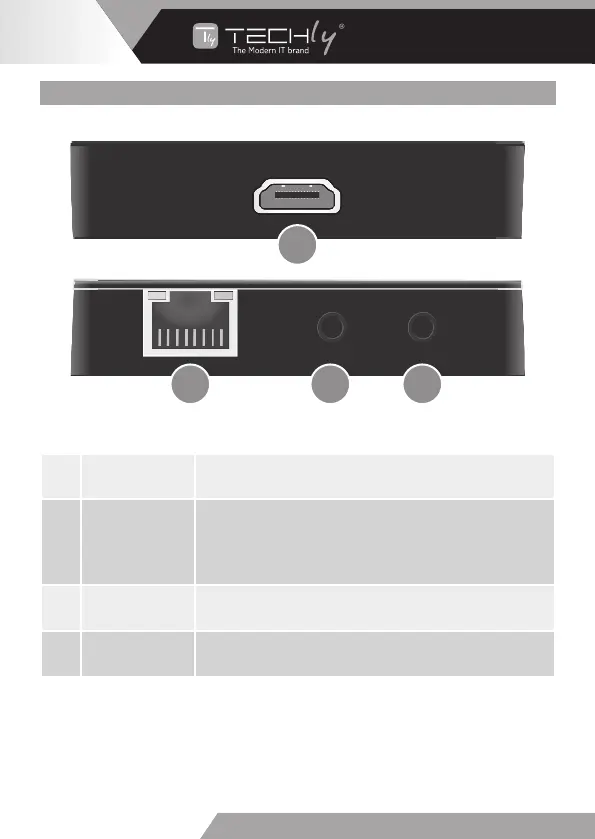

RECEIVER PANEL DESCRIPTION
1 DISPLAY
Type-A female HDMI port to connect HDMI display
device.
2 CATx IN
RJ45 port to connect the CATx OUT port of transmitter
by CATx cable. It supports 12V PoC and the receiver
can be powered from the transmitter. The orange LED
illuminates when there is a valid HDMI signal input. The
green LED illuminates when power is applied.
3 IR IN
3.5 mm mini jack to connect IR receiver for IR
pass-through.
4 IR OUT
3.5 mm mini jack to connect IR emitter for IR
pass-through.
